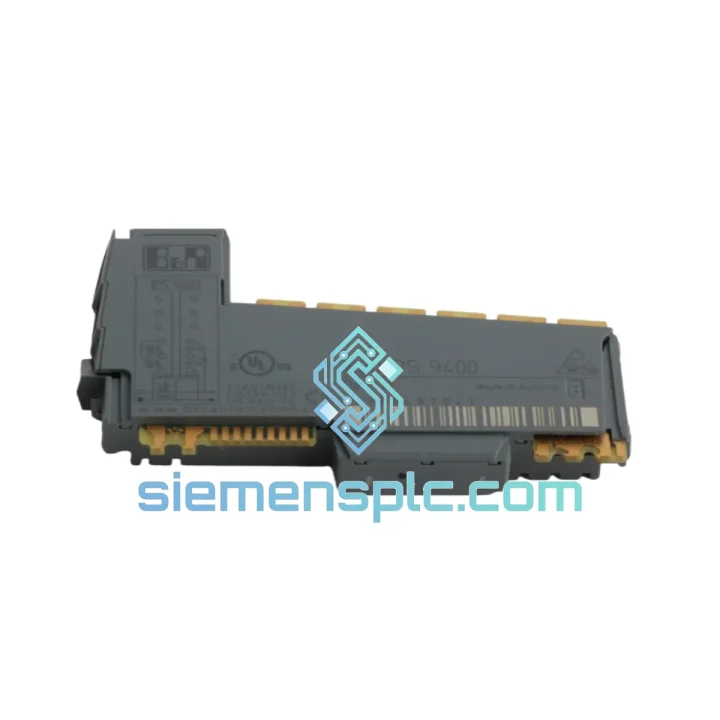

B&R X20PS9400 PLC Power Supply Module – X20 Series

B&R X20PS9400 — Internal Bus Power Supply for X20 Modular I/O Architecture

The B&R X20PS9400 is a dedicated internal power supply module engineered for the X20 modular I/O system. Its primary function is to regenerate the internal 5 VDC bus voltage distributed across the X20 backplane, enabling extended I/O node configurations that exceed the current budget of a single CPU or bus controller. In multi-segment X20 nodes, the X20PS9400 acts as a bus power injector — it does not supply field-side 24 VDC to actuators or sensors, but instead sustains the X2X Link communication bus and the logic-side electronics of downstream I/O modules. Understanding this architectural distinction is essential for correct BOM construction and node sizing.

Within a control loop, the X20PS9400 occupies a structurally critical position: without adequate internal bus current, I/O modules downstream of the supply boundary will fail to initialize, producing hardware fault codes in Automation Studio and halting the CPU scan cycle. The module draws its input from the 24 VDC field supply rail and converts it to the regulated internal bus voltage, maintaining isolation between the field potential and the logic domain. This conversion is performed by an onboard DC/DC stage with integrated short-circuit protection, ensuring that a downstream module fault does not propagate upstream to the CPU or adjacent segments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The X20PS9400 integrates a non-isolated DC/DC converter topology optimized for the tight voltage regulation demands of the X20 backplane bus. The internal bus operates at a nominal 5 VDC with a tolerance band of ±2 %, and the X20PS9400 maintains output within this band across the full input voltage range of 20.4 VDC to 28.8 VDC. This wide input tolerance is significant in industrial panel environments where 24 VDC rails frequently exhibit transient sag during motor starts or solenoid switching events.

From an EMC standpoint, the module incorporates differential-mode and common-mode filtering on the 24 VDC input. The input filter attenuates conducted emissions in the 150 kHz–30 MHz band, complying with EN 55011 Class A limits. The PCB layout routes high-frequency switching nodes away from the X2X Link signal traces, reducing radiated coupling into the communication bus. Ground plane segmentation separates the switching converter ground from the X2X Link reference, preventing switching noise from modulating the differential bus signal.

The module includes an integrated bus voltage monitoring circuit. If the internal bus voltage drops below the undervoltage threshold (approximately 4.75 VDC), the X20PS9400 asserts a fault signal on the backplane, which the CPU reads as a hardware error object in the I/O configuration tree. This deterministic fault propagation allows the application program to execute a controlled shutdown sequence rather than experiencing undefined I/O behavior. The fault LED on the module front face provides a local visual indicator, while the Automation Studio I/O status page provides the precise fault code and timestamp for maintenance logging.

Thermal management is passive: the module relies on convection cooling through the ventilation slots on the housing. The internal power stage is rated for continuous operation at 55 °C ambient without derating. At elevated ambient temperatures above 55 °C, the output current must be derated per the B&R derating curve to maintain junction temperatures within the semiconductor specifications. The housing material is UL 94 V-0 rated flame-retardant thermoplastic, consistent with the rest of the X20 module family.

System Integration Benefits

• Extended Node Length: Allows X20 I/O nodes to exceed the current budget of a single CPU or bus controller, supporting configurations with 20+ I/O modules per node without additional hardware complexity.
• Deterministic Fault Isolation: The onboard undervoltage detection circuit generates a structured fault object in Automation Studio, enabling the application to distinguish a power supply fault from an I/O module fault — reducing mean time to diagnose (MTTD) in production environments.
• Field-to-Logic Isolation Boundary: The DC/DC conversion stage establishes a defined isolation boundary between the 24 VDC field rail and the 5 VDC logic bus, preventing field-side transients from corrupting backplane communication.
• Transparent Diagnostics: Module status is fully visible in the Automation Studio I/O configuration tree, including supply voltage level, fault state, and hardware revision — no additional diagnostic tools required during commissioning.
• Hot-swap Compatibility: The X20 mechanical design supports module replacement without full node power-down in systems configured for hot-swap operation, reducing planned maintenance windows.
• Consistent Scan Cycle Integrity: By maintaining stable bus voltage across all downstream modules, the X20PS9400 prevents partial I/O initialization states that would otherwise introduce non-deterministic behavior in the CPU scan cycle.
• Compact Form Factor: At 12.5 mm slot width, the module adds minimal panel footprint per supply segment, preserving DIN rail space for I/O modules in space-constrained enclosures.
• Wide Input Voltage Tolerance: The 20.4–28.8 VDC input range accommodates real-world 24 VDC rail variations without requiring a regulated upstream PSU, simplifying panel design and reducing component count.
• Automation Studio Native Configuration: No manual parameterization is required; the module is auto-detected by Automation Studio during hardware configuration, and its current consumption is automatically factored into the node power budget calculation tool.
• Long-term Platform Availability: As a core infrastructure component of the X20 system, the X20PS9400 has an extended product lifecycle commitment from B&R, reducing obsolescence risk for long-running machine platforms.

Quality Assurance & Global Logistics

Every X20PS9400 unit supplied through siemensplc.com is sourced as a genuine B&R component. B&R Industrial Automation, as a member of the ABB Group, maintains ISO 9001-certified manufacturing processes at its facilities in Eggelsberg, Austria. Each module leaves the factory with full traceability documentation including batch number, hardware revision, and production date code. Units supplied by siemensplc.com are inspected upon receipt: visual examination for transport damage, label verification against the order part number, and functional power-on verification where applicable.

Shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for all international shipments. For customers requiring CITES, CE declaration of conformity, or RoHS compliance documentation, these are available upon request prior to shipment. Typical transit times are 3–5 business days to Europe and North America via express courier, and 5–10 business days via standard air freight. Customs HS code 8537.10 applies to this product category in most jurisdictions.

All orders are covered by a 12-month warranty from the date of shipment. Warranty claims are processed through direct communication with our technical team; defective units are replaced or credited after fault verification. We maintain stock of both current-production and legacy X20 modules to support installed base maintenance requirements.
