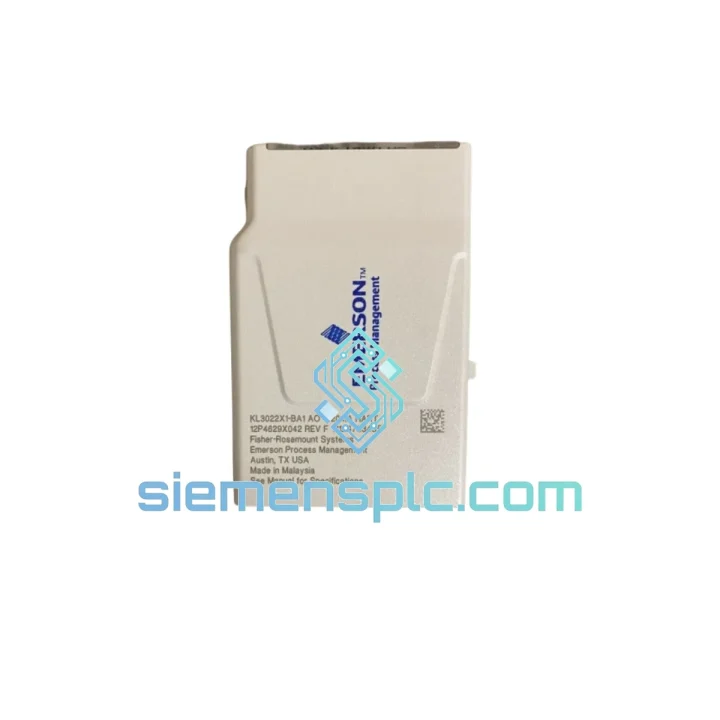

Emerson 12P4629X042 DeltaV CHARM Analog Output Module – DeltaV Series

Emerson 12P4629X042 — Single-Channel Analog Output CHARM in DeltaV Distributed Control Architecture

Within a DeltaV distributed control system, the analog output tier is the final translation layer between the controller’s computed setpoint and the physical actuator in the field. The Emerson 12P4629X042 occupies precisely this position: a single-channel, 4-20mA HART Characterization Module (CHARM) that delivers a conditioned, isolated current signal to field devices while simultaneously maintaining a bidirectional HART digital channel over the same two-wire loop. Its role is not decorative — in a live process plant, this module is the direct command interface to control valves, variable-speed drives, and smart positioners that govern flow, pressure, temperature, and level in real time.

The CHARM architecture itself represents a structural departure from conventional marshalled I/O. Traditional DCS installations required physical cross-wiring between field junction boxes and I/O cards in the equipment room — a labor-intensive, error-prone process that consumed significant engineering hours and cabinet space. The 12P4629X042 eliminates that intermediate layer. Field cables terminate directly at the CHARM carrier (CIOC), and the module’s characterization is defined entirely in software within the DeltaV database. The physical hardware carries no configuration state; the channel definition lives in the controller. This separation of hardware and configuration is the architectural foundation that enables hot-swap replacement without process interruption.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Galvanic Isolation Architecture
The 12P4629X042 implements per-channel galvanic isolation between the field-side loop and the CIOC backplane bus. This is not a shared isolation barrier across multiple channels — each CHARM module carries its own isolation boundary. The practical consequence is that a ground fault or wiring fault on one field loop cannot propagate transient energy onto the backplane or into adjacent channels. In environments where field cables run through electrically noisy conduit — near variable-frequency drives, high-current motor feeders, or induction furnaces — this per-channel isolation is the primary defense against common-mode interference corrupting the 4-20mA signal.

HART Signal Superposition and Filtering
The HART protocol operates by superimposing a frequency-shift keyed (FSK) digital signal at 1200 Hz and 2200 Hz onto the 4-20mA DC current loop. The 12P4629X042 manages this dual-signal environment through internal filtering that separates the DC analog component (used for the control output) from the AC HART component (used for device communication). The analog output accuracy is maintained independently of HART communication activity — HART polling does not introduce measurable perturbation to the 4-20mA setpoint. This is a non-trivial design requirement: the FSK signal amplitude is typically 0.5 mA peak-to-peak, and the module’s output stage must reject this as noise while the HART modem simultaneously decodes it as data.

Electronic Marshalling and Configuration Decoupling
In conventional I/O architectures, the physical location of a field cable termination determines which I/O card — and therefore which controller channel — that signal is assigned to. Changing a loop assignment requires physical rewiring. The CHARM architecture decouples this relationship entirely. The 12P4629X042 terminates the field cable at the CIOC carrier, and the channel-to-controller assignment is a software parameter in the DeltaV database. During commissioning or loop reassignment, an engineer modifies the database record; no physical wiring changes. This architectural decision reduces commissioning labor and eliminates a class of wiring errors that historically account for a significant fraction of DCS startup defects.

Fault Detection and Diagnostic Reporting
The module continuously monitors its own output current against the commanded setpoint. If the measured loop current deviates beyond a defined tolerance — indicating a broken wire, open-circuit field device, or saturated output — the CHARM generates a diagnostic alert that propagates to the DeltaV controller and appears as a channel fault in the operator display. This closed-loop self-monitoring means field wiring faults are detected within the controller scan cycle, not discovered during the next manual inspection round.

System Integration Benefits

• Zero-downtime channel replacement: Hot-swap capability allows a faulty CHARM to be pulled and replaced while the CIOC carrier and all adjacent channels remain powered and operational. Mean time to repair for a single channel fault is measured in minutes, not hours.
• HART device diagnostics without additional hardware: The integrated HART master function enables AMS Device Manager to poll connected field devices for valve signature data, calibration status, and predictive wear indicators — using the same two-wire loop that carries the control signal, with no additional wiring or multiplexer hardware.
• Deterministic scan cycle integration: The CHARM communicates with the CIOC over a deterministic internal bus. The analog output update rate is synchronized to the DeltaV controller scan cycle, ensuring that setpoint changes are reflected at the field device within one scan period — a requirement for tight PID loop performance on fast processes.
• Reduced cabinet footprint: Eliminating the marshalling cabinet and its associated terminal blocks, fuse panels, and cross-wiring reduces the physical cabinet count in a typical greenfield installation. The CIOC carrier hosting 96 CHARMs occupies a fraction of the space required by equivalent traditional I/O.
• Software-defined loop assignment: Loop-to-controller channel assignments are database parameters, not physical wiring. Late-stage design changes — common in EPC projects — are implemented in software without field rework, compressing project schedules.
• Fault isolation at channel granularity: A hardware fault affects exactly one channel. There is no shared failure mode that takes down a group of 8 or 16 channels simultaneously, as occurs with traditional multi-channel I/O cards. System availability is structurally higher.
• Simplified spare parts strategy: A single CHARM type covers a single I/O function. Spare parts inventory is organized by function rather than by card type and slot position, reducing the total number of unique spare part numbers a plant must stock.
• SIS architecture compatibility: When deployed within a DeltaV SIS configuration using appropriate safety-rated CIOC carriers and controllers, the CHARM I/O architecture supports IEC 61511 Safety Instrumented System requirements, allowing a unified hardware platform for both basic process control and safety functions.

Quality Assurance & Global Logistics

Every Emerson 12P4629X042 unit supplied by siemensplc.com is sourced through verified industrial distribution channels. The part number, revision marking, and date code are cross-referenced against Emerson’s published product documentation prior to listing. Physical inspection covers connector pin condition, housing integrity, label legibility, and correct revision markings. Units showing evidence of rework, remarking, or non-original packaging are rejected at intake.

Shipments originate from Xiamen, China — a designated port city with direct air freight connections to major logistics hubs in Southeast Asia, the Middle East, Europe, and North America. Xiamen Gaoqi International Airport handles daily cargo flights on DHL Express, FedEx International Priority, and UPS Worldwide services. Transit times to most destinations in Asia are 2–4 business days; Europe and the Americas typically 4–7 business days depending on customs clearance. All export shipments are accompanied by a commercial invoice, packing list, and certificate of origin. HS code classification and export compliance documentation are prepared for each shipment to facilitate smooth customs clearance at the destination port.

Payment is accepted in USD, EUR, HKD, and CNY via T/T bank transfer, PayPal, and other agreed terms. A proforma invoice is issued prior to payment for procurement department processing. The 12-month warranty covers functional failure under normal operating conditions; DOA claims are processed within 48 hours of receipt notification.
