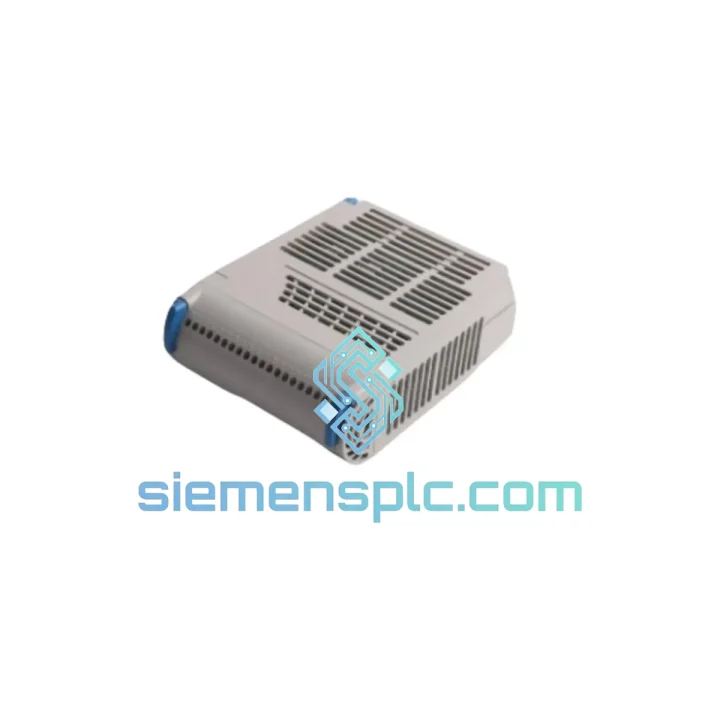

Emerson 5X00301G01 Analog Output Module – Ovation DCS Series

Emerson 5X00301G01 — 8-Channel Analog Output Module for Ovation DCS Control Architecture

The Emerson 5X00301G01 is an 8-channel, 4–20 mA current-loop analog output module engineered for deployment within the Emerson Ovation Distributed Control System. Its primary function is to translate digitally computed setpoints from the Ovation controller into precision analog drive signals for final control elements — including control valves, variable-speed drives, and electro-pneumatic positioners — across power generation, utility, and process industries.

Within a closed control loop, the 5X00301G01 occupies the output stage of the regulatory chain. The Ovation controller resolves PID algorithm outputs at each scan cycle and writes the resulting demand values to the module’s output registers via the Ovation I/O bus. The module’s onboard digital-to-analog conversion circuitry then generates a proportional 4–20 mA signal on each channel, driving the field device to the commanded position. Channel-to-channel isolation prevents ground potential differences in field wiring from propagating back into the I/O bus, preserving signal integrity across all eight outputs simultaneously.

The module integrates directly into the Ovation I/O subsystem without requiring external signal conditioning. Its backplane connector interfaces with the Ovation I/O marshalling structure, and the module is recognized and configured through the Ovation Developer Studio environment. Diagnostic status — including open-loop detection and out-of-range conditions — is reported back to the controller and surfaced in the Ovation operator workstation, enabling maintenance personnel to identify field wiring faults without interrupting the control loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5X00301G01 implements per-channel optical isolation between the digital logic domain and the analog output stage. Each of the eight channels uses a dedicated optocoupler barrier, ensuring that field-side ground faults — common in long cable runs to valve positioners in power plant environments — cannot induce common-mode noise or latch-up conditions on the I/O bus. This architecture eliminates the need for external isolating repeaters in most installation scenarios.

The module’s DAC stage employs a 12-bit conversion architecture, yielding a theoretical resolution of approximately 3.9 µA per LSB across the 16 mA span of the 4–20 mA range. In practice, this translates to valve positioning resolution finer than 0.025% of stroke for a standard linear positioner — sufficient for tight regulatory control in boiler feedwater and turbine bypass applications where loop gain is high and setpoint tracking demands are stringent.

EMC compliance is achieved through a combination of board-level filtering on the backplane power rails, shielded trace routing around the DAC reference circuitry, and ferrite bead suppression on each analog output line before it exits the module connector. The result is a conducted emissions profile that meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels appropriate for industrial control panel installation in proximity to high-voltage switchgear.

The module’s output hold behavior on communication loss is configurable: channels can be set to hold last value, drive to a defined safe state (typically 4 mA, representing 0% demand), or drive to 20 mA depending on the fail-safe logic defined in the Ovation controller configuration. This configurable fail-safe output behavior is a hardware-enforced function, not dependent on software watchdog timers, ensuring deterministic response within one scan cycle of bus communication loss.

System Integration Benefits

• Deterministic scan-cycle output update: The module updates all eight output channels within a single Ovation I/O bus scan cycle, ensuring that controller-computed demand values are reflected at the field device without inter-channel skew — critical for coordinated multi-valve control strategies.
• Transparent channel diagnostics: Open-loop detection on each channel (loss of field current feedback) is reported as a discrete diagnostic tag in the Ovation database, enabling alarm annunciation and maintenance dispatch without manual loop testing.
• Zero-configuration backplane integration: The module is auto-enumerated by the Ovation controller upon insertion; no DIP switch or jumper configuration is required. Module type, channel count, and I/O address are resolved through the backplane ID mechanism.
• Hot-insertion support: The 5X00301G01 supports live insertion into a powered Ovation I/O chassis (subject to system configuration), allowing channel replacement during plant operation without requiring a controller restart or loop shutdown.
• Configurable output scaling: Engineering unit scaling (e.g., 0–100% demand mapped to 4–20 mA) is defined in Ovation Developer Studio and stored in the controller, not in the module. This means a replacement module assumes the correct scaling immediately upon recognition, with no field calibration required.
• Redundancy arbitration compatibility: In redundant controller configurations, the 5X00301G01 receives output commands from the active controller only; the standby controller monitors but does not drive outputs. Switchover transfers output authority to the standby within the controller’s bumpless transfer window, preventing step changes at the field device.
• Reduced field wiring complexity: The 8-channel density per module slot reduces the number of I/O chassis slots required for a given loop count, lowering cabinet footprint and backplane power budget compared to lower-density alternatives.
• Audit trail and traceability: Module serial number, firmware revision, and diagnostic history are accessible through the Ovation system database, supporting IEC 62443 cybersecurity audit requirements and plant maintenance management system (CMMS) integration.

Quality Assurance & Global Logistics

Every 5X00301G01 unit dispatched from our Xiamen, China facility is sourced as genuine Emerson OEM hardware. Prior to shipment, each module undergoes a structured inspection sequence: visual board-level examination for component integrity, serial number cross-verification against Emerson production records, functional bench test with I/O channel verification against factory output accuracy specifications, and final packaging review with anti-static ESD shielding and shock-resistant foam insert.

A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. DOA units are processed for replacement or credit within 5 business days of confirmed fault documentation.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, and the Middle East. Full export documentation is prepared for each shipment: commercial invoice, packing list, certificate of origin, and ESD handling declaration. Orders are processed within 1 business day of payment confirmation for in-stock units.
