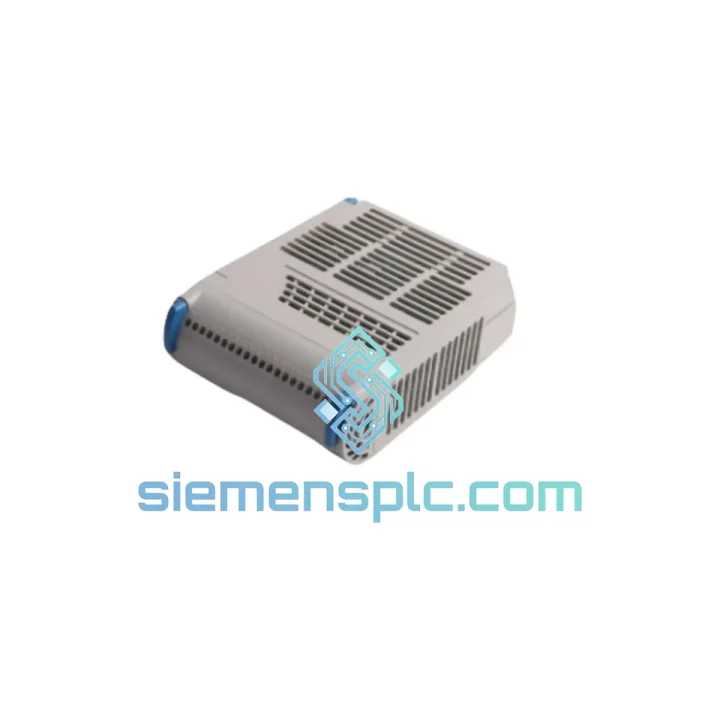

Emerson 5X00481G03 DCS Controller Module – Ovation Platform

Emerson 5X00481G03 – Ovation DCS Controller Module: Core Role in Closed-Loop Process Control

The Emerson 5X00481G03 is a rack-mounted controller module designed for deployment within the Ovation Distributed Control System (DCS) architecture. Its primary function is to execute deterministic control strategies across high-availability process loops in power generation, water treatment, and continuous-process industries. Unlike general-purpose PLCs, the 5X00481G03 operates within a tightly coupled backplane environment where scan-cycle jitter is bounded by hardware arbitration rather than software scheduling — a distinction that directly affects loop stability in fast-response applications such as turbine governor control and boiler drum-level regulation.

The module interfaces with Ovation I/O subsystems via a dedicated high-speed I/O bus, separating field signal acquisition from control computation. This architectural separation ensures that I/O scan latency does not propagate into the control execution cycle, maintaining consistent PID update rates regardless of I/O channel load. The 5X00481G03 supports hot-standby redundancy when paired with a matching controller module; switchover is bumpless, with state synchronization occurring across the redundancy link at each scan boundary.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5X00481G03 implements a dual-bus architecture that physically isolates the control computation path from the I/O acquisition path. The backplane carries two independent signal planes: a control network plane for inter-controller state synchronization and an I/O bus plane for field data exchange. This separation prevents I/O bus contention from introducing latency variance into the control execution thread — a common failure mode in single-bus architectures under high I/O channel counts.

EMC hardening on this module follows IEC 61000-4 series criteria. The PCB layout employs ground-plane segmentation between analog signal traces and digital logic sections, with ferrite bead filtering on all power rails entering the logic domain. Transient suppression diodes are placed at the backplane connector interface to clamp inductive spikes generated by adjacent relay or solenoid modules during switching events.

The redundancy arbitration logic operates at the hardware level rather than through OS-layer software. Each controller module continuously monitors a heartbeat signal from its peer. If the primary module fails to assert the heartbeat within a defined window (typically one scan cycle), the standby module assumes control authority without waiting for a software-layer timeout. This hardware-arbitrated switchover mechanism reduces transfer latency to sub-scan-cycle resolution, which is critical in applications where a missed control update can cause process excursions — such as feedwater control in once-through boilers.

Firmware integrity is maintained through a checksum verification routine executed at power-on and periodically during runtime. Any corruption of the control strategy image in non-volatile memory triggers an immediate fault flag and prevents the module from assuming primary control authority, ensuring that a degraded module does not silently execute incorrect logic.

System Integration Benefits

• Deterministic Scan Execution: Hardware-bounded scan cycles eliminate jitter accumulation across extended runtime, maintaining PID loop stability in fast-response processes such as turbine speed control and combustion air-fuel ratio regulation.
• Bumpless Redundancy Transfer: State synchronization at each scan boundary ensures zero process bump during primary-to-standby switchover, meeting SIL 2 availability requirements in power plant auxiliary systems.
• Transparent Fault Diagnostics: Module-level fault codes are surfaced directly in the Ovation Workstation HMI without requiring separate diagnostic tools, reducing mean time to diagnose (MTTD) during plant incidents.
• Scalable I/O Expansion: Compatible with the full Ovation analog, digital, and specialty I/O module range, allowing incremental I/O expansion without controller replacement or firmware re-qualification.
• Engineering Workstation Integration: Control strategies are downloaded from Ovation Developer Studio using standard IEC 61131-3 function block and ladder logic constructs, preserving existing engineering investment when replacing a failed module.
• Historian Data Continuity: Process variable data flows from field instruments through the 5X00481G03 to the Ovation historian without intermediate protocol conversion, preserving timestamp accuracy for post-event analysis and regulatory reporting.
• Multi-Loop Capacity: The controller supports concurrent execution of multiple independent control loops within a single module, reducing cabinet footprint and inter-module wiring complexity in retrofit projects.
• Long-Term Platform Continuity: As a genuine Emerson Ovation component, the 5X00481G03 maintains forward compatibility with Ovation software updates, protecting capital investment in existing DCS infrastructure over multi-decade plant lifecycles.

Quality Assurance & Global Logistics

Every 5X00481G03 unit supplied by siemensplc.com is sourced as genuine Emerson original equipment. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination for PCB damage or component displacement, power-on functional verification against known-good reference outputs, and serial number traceability logging. Units are packaged in anti-static shielding bags with desiccant packs and humidity indicator cards, then placed in double-wall corrugated cartons with foam-in-place cushioning rated for international air freight handling.

Shipments originate from Xiamen, China, with access to direct air freight lanes to major industrial hubs across Southeast Asia, the Middle East, Europe, and the Americas. Standard transit times are 3–7 business days for most destinations via DHL Express or FedEx International Priority. Full export documentation is provided with every shipment, including commercial invoice, packing list, and certificate of origin. ECCN classification guidance and export license support are available upon request for controlled-destination shipments.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from confirmed fault diagnosis. Pre-shipment inspection reports are available for orders requiring third-party quality documentation.
