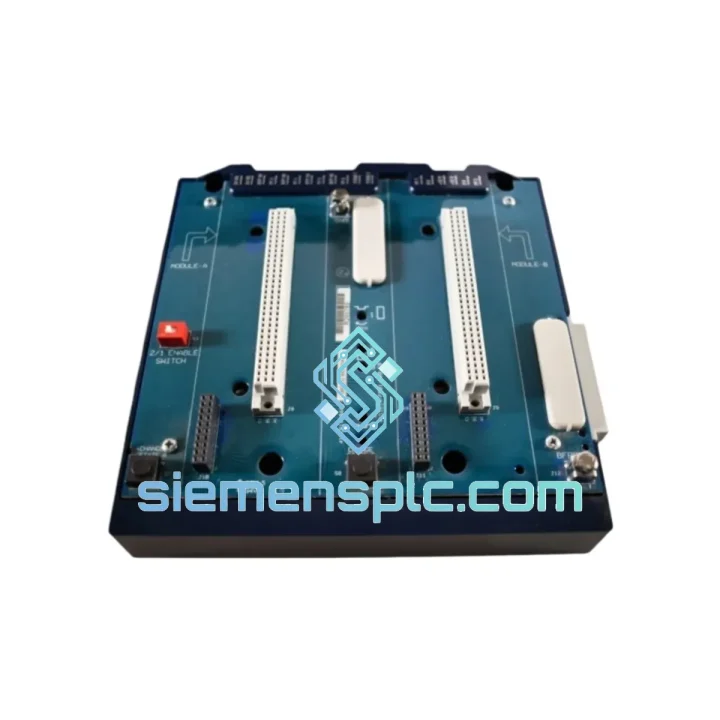

EMERSON 8752-CA-NS-02 PROFINET Scanner Module – DeltaV Series

EMERSON 8752-CA-NS-02: PROFINET IO Scanner Module in DeltaV Distributed Control Architecture

The EMERSON 8752-CA-NS-02 is a dedicated PROFINET IO scanner card engineered for integration within the DeltaV distributed control system (DCS) platform. Its primary function is to act as a PROFINET IO controller — managing cyclic and acyclic data exchange between the DeltaV backplane and a network of PROFINET-compliant field devices including variable-frequency drives, intelligent valve positioners, pressure transmitters, and remote I/O stations. Without a functioning scanner module at this layer, the DeltaV controller loses all visibility into the PROFINET subnet, rendering the associated process loop blind and uncontrollable.

Within the DeltaV I/O subsystem, the 8752-CA-NS-02 occupies a carrier slot and communicates upstream to the DeltaV controller via the internal backplane bus. Downstream, it presents a PROFINET IO controller interface operating at 100 Mbps Fast Ethernet. The module handles GSD (General Station Description) file parsing, device parameterization, and slot/subslot mapping — tasks that, in legacy architectures, required external gateways or protocol converters. By consolidating these functions onto a single backplane card, the 8752-CA-NS-02 eliminates an entire tier of hardware from the network topology, reducing both latency and failure points.

In process industries where DeltaV is the platform of record — oil and gas, specialty chemicals, pharmaceutical batch manufacturing, and power generation — the 8752-CA-NS-02 is a non-negotiable component for any plant segment that has standardized on PROFINET field devices. Its role is not peripheral; it is the communication spine between the control layer and the physical process.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 8752-CA-NS-02 implements the PROFINET IO controller stack in firmware, handling the full RT (Real-Time) Class 1 communication cycle without offloading to the DeltaV CPU. This dedicated processing architecture is significant: the DeltaV controller’s main processor is freed from network stack management, preserving its deterministic scan cycle for PID loop execution and alarm processing. The module’s onboard ASIC manages frame scheduling, AR (Application Relationship) establishment, and CR (Communication Relationship) maintenance independently.

From an EMC standpoint, the card’s PCB layout follows IEC 61000-4 series guidelines. Signal traces carrying high-frequency Ethernet data are routed with controlled impedance (typically 100 Ω differential), and the RJ45 port incorporates integrated magnetics with common-mode choke filtering to suppress conducted emissions from the cable plant. The backplane connector uses a multi-point ground scheme that bonds the card’s chassis ground to the DeltaV carrier at multiple contact points, reducing ground loop susceptibility in environments with high-frequency switching equipment nearby — a common condition in motor control centers adjacent to DCS cabinets.

The module’s firmware supports PROFINET alarm handling (process alarms, diagnostic alarms, pull/plug alarms) and routes these upstream to the DeltaV event journal without requiring custom function blocks. This native alarm propagation path means that a field device fault — such as a drive overcurrent or a transmitter sensor break — appears in the DeltaV operator console within one scan cycle, rather than being polled on a slower acyclic schedule. The acyclic channel (Record Data Objects, RDO) is simultaneously available for parameterization tasks, allowing maintenance personnel to read or write device parameters via DeltaV’s AMS Device Manager without interrupting the cyclic process data stream.

System Integration Benefits

• Backplane-Native Communication: The 8752-CA-NS-02 connects directly to the DeltaV I/O bus, eliminating external Ethernet switches or media converters between the scanner and the controller — reducing cable count and potential failure nodes in the control cabinet.
• Deterministic Cyclic Update Rates: Configurable send clock intervals (typically 1 ms to 512 ms) allow engineers to match the scanner’s update rate to the process dynamics of each loop, preventing unnecessary bus loading on slow-response loops while maintaining tight timing on fast control applications.
• GSD-Based Device Commissioning: PROFINET devices are commissioned using their GSD/GSDML files, which the 8752-CA-NS-02 parses to auto-configure slot/subslot data structures. This eliminates manual byte-offset mapping and reduces commissioning errors on multi-device subnets.
• Parallel Acyclic Access: Maintenance engineers can read device diagnostics, write configuration parameters, or perform firmware updates via acyclic Record Data Objects while cyclic process data continues uninterrupted — a critical capability for zero-downtime maintenance strategies.
• Integrated Alarm Propagation: PROFINET diagnostic and process alarms are natively forwarded to the DeltaV event system, providing a single-pane-of-glass view of field device health without secondary SCADA polling or OPC bridging.
• Topology Transparency: The module supports LLDP (Link Layer Discovery Protocol), enabling DeltaV’s network topology view to display the physical connection map of all PROFINET devices — port-by-port — directly in the engineering workstation, simplifying fault isolation during network incidents.
• Reduced Engineering Overhead: Because the scanner operates within the DeltaV I/O subsystem framework, PROFINET device tags are configured using the same DeltaV Explorer workflow as conventional analog or digital I/O — no separate PROFINET configuration tool or OPC server is required for standard deployments.
• Hot-Swap Compatibility: The DeltaV carrier architecture supports module replacement under power in many configurations, allowing the 8752-CA-NS-02 to be swapped during a planned maintenance window without a full system shutdown — a significant operational advantage in continuous-process plants.

Quality Assurance & Global Logistics

Every 8752-CA-NS-02 unit dispatched from our Xiamen, China facility is sourced from verified EMERSON-authorized supply channels and passes a structured pre-shipment inspection protocol. Physical label verification is cross-referenced against EMERSON’s part number taxonomy to confirm authenticity. PCB and connector condition is inspected under magnification for signs of rework, counterfeit markings, or mechanical damage. Units are bench-powered to confirm initialization and communication readiness prior to packaging.

Packaging uses anti-static foam-lined cartons with humidity indicator cards and desiccant packs, conforming to IEC 60068-2 transport stress requirements. Export documentation — including commercial invoice, packing list, certificate of conformance, and HS code declaration — is prepared for each shipment to ensure smooth customs clearance in the destination country. Standard international transit time from Xiamen is 3–7 business days via DHL Express or FedEx International Priority. Air freight consolidation is available for multi-unit orders requiring cost optimization. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.
