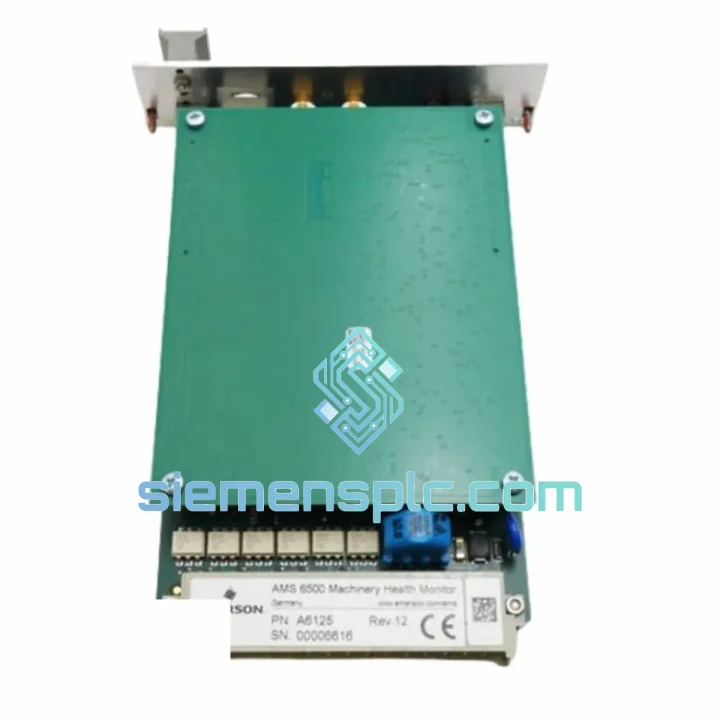

EMERSON A6125 Condition Monitor Module – DeltaV DCS

EMERSON A6125 DeltaV Condition Monitor Module — Embedded Asset Intelligence Within the Control Loop

The EMERSON A6125 is a carrier-mounted condition monitoring I/O module purpose-built for Emerson’s DeltaV Distributed Control System platform. Unlike standalone vibration analyzers that operate in isolation, the A6125 integrates directly onto the DeltaV I/O bus, placing rotating equipment health data on the same deterministic data plane as process variables. This architectural decision eliminates the latency and data reconciliation overhead inherent in gateway-based condition monitoring architectures — a critical advantage in high-availability continuous process plants where a bearing failure on a critical pump or compressor can cascade into a full unit shutdown within minutes.

The module accepts signals from industrial vibration transducers (accelerometers, velocity probes, proximity probes) and process variable transmitters, conditions those signals internally, and presents structured health parameters to the DeltaV controller. From the controller’s perspective, the A6125 behaves as a standard I/O card — its data is accessible in DeltaV Operate, loggable in the historian, and actionable within control module logic without any additional middleware layer.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Signal Conditioning Architecture
The A6125 implements front-end analog signal conditioning before digitization. Vibration transducer inputs pass through anti-aliasing filters sized to the module’s internal sampling rate, preventing spectral folding artifacts that would corrupt frequency-domain analysis. This is not a trivial design point: in field installations where VFD-driven motors generate high-frequency switching noise on sensor cables, inadequate anti-aliasing produces phantom frequency components that trigger false alarms in vibration monitoring software. The A6125’s hardware filter topology addresses this at the silicon level rather than relying on software post-processing.

EMC Design and Isolation
The module’s analog input stage incorporates galvanic isolation between field-side sensor circuits and the DeltaV bus-side logic. This isolation barrier serves two functions: it protects the DeltaV backplane from ground loop currents induced by long cable runs to remote sensor locations, and it prevents common-mode noise — prevalent in motor control centers and switchgear rooms — from corrupting the digitized signal. The isolation topology is consistent with Emerson’s broader DeltaV I/O design philosophy, where each I/O card maintains electrical independence from the controller backplane to contain fault propagation.

On-Module Processing
Rather than streaming raw ADC samples to the DeltaV controller, the A6125 performs initial signal processing on-module. Overall vibration level (RMS, peak, peak-to-peak) is computed locally, reducing the bandwidth demand on the DeltaV I/O bus and ensuring that the controller receives pre-processed health parameters at a deterministic update rate. This architecture keeps the controller’s CPU load independent of the number of vibration channels being monitored — a significant advantage in large-scale DCS configurations where controller loading is a constrained resource.

Hot-Swap and Online Replacement
The A6125 supports online module extraction and insertion without requiring a controller restart or process interruption. The DeltaV carrier’s bus arbitration logic detects module removal, flags the associated I/O points as unavailable in the controller database, and automatically re-initializes the module upon reinsertion. This behavior is governed by the DeltaV I/O bus protocol at the hardware level — not a software workaround — making it reliable across DeltaV firmware versions.

System Integration Benefits

• Unified Operator View: Condition data from the A6125 appears natively in DeltaV Operate alongside process variables — operators see bearing vibration, process temperature, and flow on a single display without switching between applications.
• Historian Integration: All A6125 parameters are automatically available to the DeltaV Continuous Historian, enabling long-term trend analysis and failure mode correlation without additional data collection infrastructure.
• AMS Suite Compatibility: The module feeds directly into Emerson AMS Device Manager and Plantweb Optics, enabling AI-assisted predictive maintenance recommendations based on vibration trend data.
• Control Module Interlock Logic: Because A6125 outputs are standard DeltaV I/O parameters, they can be used directly in control module logic — for example, triggering a pump shutdown interlock when vibration exceeds a configurable threshold, without any external relay or hardwired trip circuit.
• Redundant Controller Support: The A6125 is compatible with DeltaV redundant controller configurations. In a redundant pair, both controllers have simultaneous read access to the module’s data, ensuring no monitoring gap during a controller switchover event.
• Reduced Field Wiring: Carrier-mounted installation eliminates the need for dedicated field junction boxes and marshalling panels for condition monitoring signals — sensor cables terminate directly at the I/O carrier, reducing installation cost and potential wiring fault points.
• Diagnostic Transparency: The DeltaV system reports module-level diagnostics — power status, communication health, and channel-level fault flags — through the standard DeltaV diagnostic interface, giving maintenance engineers precise fault localization without physical inspection of the cabinet.
• Scalable Deployment: Additional A6125 modules can be added to existing DeltaV I/O carriers without controller reconfiguration beyond standard I/O assignment — the DeltaV auto-sense mechanism detects new modules and populates the I/O database automatically upon commissioning.

Quality Assurance & Global Logistics

Genuine EMERSON Components
Every A6125 unit supplied through siemensplc.com is sourced from verified industrial supply channels with full traceability documentation. Pre-shipment inspection covers visual examination, label and date-code verification, and functional bench testing where applicable. Counterfeit-risk screening is applied to all DeltaV components per IEC 62239 supply chain management guidelines. Original Emerson packaging is preserved where available; repackaged units include a signed inspection certificate. A 12-month warranty covers manufacturing defects under normal operating conditions from the date of shipment.

Express Logistics from Xiamen, China
All orders are dispatched from our Xiamen warehouse, strategically positioned for efficient access to major international freight hubs including Xiamen Gaoqi International Airport and Xiamen Port. Standard export documentation — commercial invoice, packing list, certificate of origin — is prepared for every international shipment. Dangerous goods classification is not applicable for this module, simplifying customs clearance in most jurisdictions.

• DHL Express: Door-to-door delivery to most destinations within 3–5 business days. Real-time tracking provided from dispatch.
• FedEx International Priority: Available for time-critical emergency replacement orders. Typical transit 2–4 business days to North America and Europe.
• UPS Worldwide Express: Alternative carrier option for destinations with preferred UPS routing.
• Sea Freight / Air Freight (Bulk): Available for multi-unit orders where express cost is not justified. Lead time quoted per order.
• Emergency Same-Day Dispatch: Orders confirmed before 14:00 CST are eligible for same-day dispatch subject to stock availability.

Export compliance documentation, HS code classification, and customs value declaration are handled by our logistics team. For orders requiring an import license or end-user certificate in the destination country, please advise at the time of RFQ.
