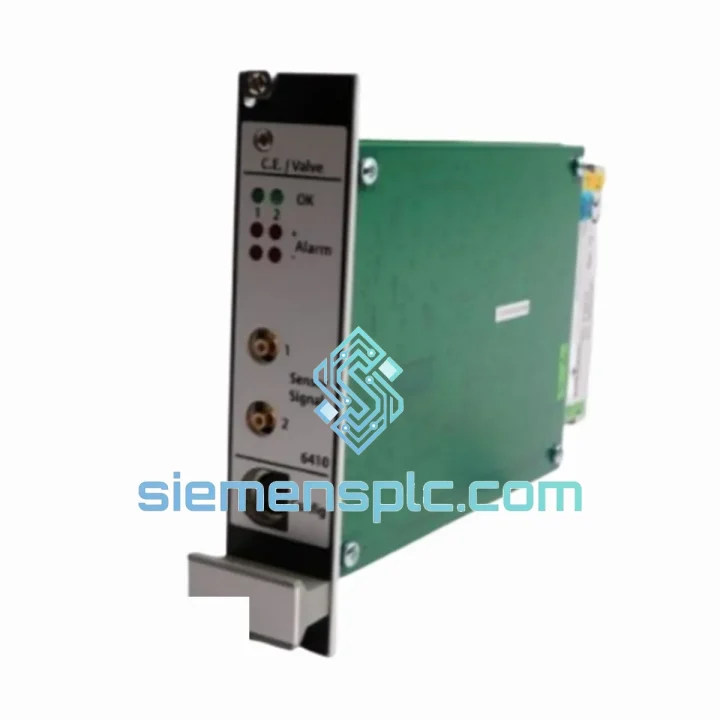

Emerson A6410 DCS Expansion Module – DeltaV Series

Emerson A6410 Machinery Expansion Unit — I/O Capacity Extension in DeltaV Distributed Control Architecture

The Emerson A6410 Machinery Expansion Unit is a dedicated hardware node within the DeltaV distributed control system (DCS) platform, designed to extend the physical I/O boundary of an existing DeltaV controller subsystem without introducing additional controller overhead or disrupting the deterministic scan cycle. In process plants where the ratio of field instruments to controller nodes is constrained by cabinet space, power budget, or capital expenditure, the A6410 provides a structured path to expand machinery monitoring capacity while preserving the existing system topology.

Unlike generic I/O expanders that rely on asynchronous polling, the A6410 operates within DeltaV’s native backplane communication protocol, maintaining synchronous data exchange with the host controller. This architectural alignment ensures that signal timestamps, diagnostic flags, and module health data are propagated to the DeltaV operator workstation with the same latency characteristics as natively installed I/O cards — a critical requirement in machinery protection applications where response time directly affects trip logic accuracy.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A6410’s internal architecture reflects Emerson’s design philosophy for the DeltaV platform: hardware modularity with software transparency. At the backplane interface level, the module implements a token-passing arbitration scheme that prevents bus contention when multiple expansion units are installed on the same carrier. Each A6410 is assigned a unique slot address at power-up, and the host controller’s I/O subsystem manager polls each slot in a deterministic sequence, ensuring that no single module can monopolize backplane bandwidth during high-load scan cycles.

Signal conditioning within the A6410 employs optocoupler-based galvanic isolation on discrete input channels, providing a minimum isolation barrier of 500 V DC between field wiring and the backplane logic domain. This isolation architecture is not merely a regulatory checkbox — it directly prevents ground loop currents from corrupting analog reference voltages on adjacent channels, a failure mode that is particularly prevalent in large petrochemical installations where field cable runs exceed 300 meters and ground potential differences between instrument locations can reach several volts.

The module’s onboard microcontroller continuously monitors channel-level diagnostics: open-wire detection on 4–20 mA loops, over-range and under-range flags on analog inputs, and short-circuit protection on discrete outputs. These diagnostics are encoded into the module’s status word and transmitted to the DeltaV controller on every scan cycle, enabling the DeltaV Diagnostics Explorer to surface field wiring faults without requiring a technician to physically inspect terminal blocks. In facilities operating under IEC 61511 functional safety requirements, this diagnostic transparency directly contributes to the proof-test interval calculation for SIL-rated loops.

Thermal management is handled passively through the module’s aluminum alloy housing, which acts as a heat spreader for the internal power regulation circuitry. The housing geometry is designed to align with the natural convection airflow path within a DeltaV vertical cabinet, maintaining junction temperatures within specification at ambient conditions up to 60°C — a margin that accommodates the thermal load of a fully populated carrier without forced-air cooling.

System Integration Benefits

• Zero-configuration slot recognition: The A6410 is auto-detected by the DeltaV controller upon insertion; no manual address DIP switch setting is required, eliminating a common source of commissioning errors in multi-module expansions.
• Deterministic scan cycle preservation: Because the module communicates over the native DeltaV backplane rather than an auxiliary fieldbus, its data is available to the controller within the same execution period as local I/O — no additional latency compensation is needed in control module configuration.
• Unified diagnostic namespace: All A6410 channel diagnostics appear within the standard DeltaV Diagnostics Explorer hierarchy, allowing operations and maintenance teams to use a single tool for fault isolation across both local and expansion I/O.
• Non-disruptive hot-swap capability: The module supports carrier-level hot-swap procedures consistent with DeltaV platform guidelines, permitting replacement during plant operation without requiring a controller restart or process shutdown.
• Scalable expansion without topology change: Multiple A6410 units can be installed on the same carrier, allowing incremental I/O growth to match phased plant expansion projects without redesigning the controller network architecture.
• Galvanic isolation per channel group: The optocoupler isolation architecture prevents inter-channel interference in mixed-signal installations where high-voltage discrete outputs and millivolt-level analog inputs share the same module, maintaining measurement accuracy across the full operating range.
• Integrated power budget management: The module reports its backplane power draw to the DeltaV power monitor, enabling the system to flag carrier overload conditions before they cause unplanned shutdowns — a proactive safeguard during cabinet expansion projects.
• Firmware-independent operation: The A6410’s core I/O functions operate independently of DeltaV application firmware versions within the supported compatibility matrix, reducing the risk of module incompatibility during DeltaV platform upgrades.
