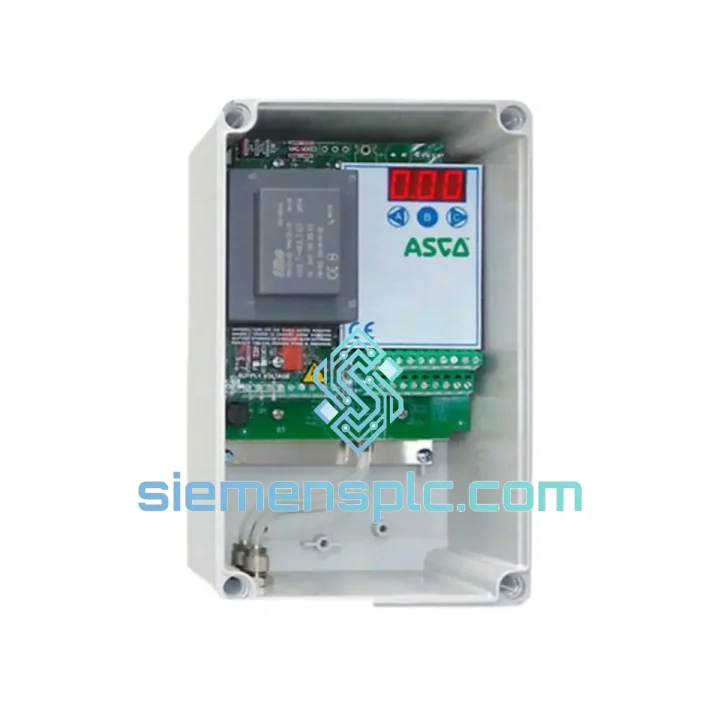

Emerson ASCO E909PA16MU1 Electronic Valve Controller – ASCO E909 Series

ASCO E909PA16MU1 – 16-Channel Electronic Valve Controller in Distributed Solenoid Pilot Architecture

The Emerson ASCO E909PA16MU1 is a 16-channel electronic valve controller belonging to the ASCO E909 Series — a product line engineered for high-density solenoid pilot valve actuation in process-critical environments. Unlike conventional relay-based valve drivers, the E909PA16MU1 integrates solid-state output switching with onboard diagnostics, enabling deterministic valve sequencing across 16 independent output channels from a single compact module footprint. This architecture is particularly relevant in skid-mounted process units, manifold valve islands, and distributed control cabinets where channel density, wiring economy, and response latency are primary design constraints.

Within a control loop, the E909PA16MU1 occupies the final-element driver layer — receiving discrete command signals from a PLC or DCS output card and translating them into precisely timed solenoid coil energization pulses. The module’s internal switching logic maintains coil current within rated parameters, preventing thermal overload on solenoid coils during extended hold states. This is a measurable advantage over direct relay-driven architectures, where contact bounce and coil inrush transients can degrade solenoid service life by 30–40% under high-cycle duty.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The E909PA16MU1’s output stage employs optocoupler-based galvanic isolation between the fieldbus/logic domain and the solenoid coil drive domain. Each of the 16 channels routes through an independent optocoupler, ensuring that a coil-side fault — such as a short circuit from insulation breakdown or a wiring error — cannot propagate back into the control logic bus. This isolation barrier is rated to withstand transient voltages typical of inductive load switching, where back-EMF spikes on 24 V DC solenoid coils can momentarily reach 60–80 V before the integrated flyback suppression clamps the transient.

The module’s EMC design follows IEC 61000-4 series test criteria. The PCB layout uses a split ground plane strategy: the logic ground and the output power ground are separated at the board level and joined only at a single star point near the power input terminal. This topology prevents high-frequency switching noise generated by solenoid coil commutation from coupling into the low-level signal traces serving the fieldbus interface. In environments with variable-frequency drives (VFDs) or large motor starters in the same cabinet, this ground architecture provides measurable noise immunity without requiring external filtering components.

Short-circuit protection on each output channel is implemented via electronic current limiting rather than fuse-based protection. When output current exceeds the threshold (typically 0.6–0.8 A), the channel driver enters a current-fold-back mode, reducing output to a safe level and asserting a fault flag in the module’s diagnostic register. This allows the PLC to read the fault condition via the fieldbus and take corrective action — such as isolating the affected channel and alerting the operator — without requiring manual fuse replacement or cabinet access. Open-load detection operates on the same diagnostic register: if a channel is commanded ON but no coil current is detected within a defined window (typically 5–10 ms), the module flags an open-circuit condition, enabling predictive maintenance workflows before a valve fails to actuate during a process-critical sequence.

The module’s internal watchdog timer monitors fieldbus communication health. If the fieldbus master fails to refresh the output data within the configured watchdog timeout period, the E909PA16MU1 transitions all outputs to a defined fail-safe state — either all-off or a pre-configured safe pattern stored in non-volatile memory. This behavior is configurable during commissioning and is essential for SIL-assessed process loops where uncontrolled valve states during communication loss represent a process hazard.

System Integration Benefits

• Deterministic Output Latency: Solid-state switching eliminates mechanical contact bounce, achieving output response times under 2 ms from fieldbus command receipt to coil energization — critical for high-speed sequencing applications.
• Reduced Panel Wiring Density: Consolidating 16 solenoid outputs into a single module with a shared fieldbus connection reduces individual wire runs by up to 80% compared to discrete relay-per-channel architectures, lowering installation labor and long-term maintenance complexity.
• Per-Channel Diagnostic Transparency: Short-circuit, open-load, and over-temperature fault flags are individually addressable via the fieldbus diagnostic register, enabling the PLC program to implement channel-level fault isolation without operator intervention.
• Fail-Safe State Configuration: Configurable watchdog-triggered fail-safe output states allow the module to maintain process safety during communication interruptions, supporting IEC 61511 functional safety requirements at the final element layer.
• Coil Thermal Protection: Electronic current limiting prevents solenoid coil overheating during sustained energization, extending coil MTBF and reducing unplanned valve replacement cycles in continuous-duty processes.
• Fieldbus Protocol Flexibility: Compatible with PROFIBUS DP, DeviceNet, and EtherNet/IP gateway modules within the ASCO E909 ecosystem, allowing integration into Siemens S7, Allen-Bradley ControlLogix, and Emerson DeltaV control architectures without protocol conversion hardware.
• Manifold-Direct Mounting: The module’s mechanical interface supports direct mounting onto ASCO valve manifold assemblies, eliminating intermediate wiring harnesses between the driver electronics and the solenoid coil terminals — reducing connection points and associated failure modes.
• Scalable Channel Expansion: Multiple E909PA16MU1 modules can be networked on a single fieldbus segment, allowing valve island expansion from 16 to 128+ channels without modifying the PLC I/O hardware or adding additional fieldbus masters.
• Standardized Diagnostic Protocol: Fault data is structured in a consistent register map across all E909 Series modules, enabling a single PLC diagnostic routine to monitor mixed valve island configurations — reducing software engineering effort during system commissioning and future expansions.

Quality Assurance & Global Logistics

Every ASCO E909PA16MU1 unit supplied by siemensplc.com is sourced as genuine Emerson OEM product. Units are inspected upon receipt for label authenticity, connector integrity, housing condition, and counterfeit indicators including holographic markings and date code consistency. Where applicable, units are bench-verified against known-good reference configurations prior to dispatch.

Packaging follows anti-static and moisture-barrier protocols: each module is sealed in an ESD-protective bag, placed in a rigid foam-lined carton, and outer-packed with shock-absorbing material rated for international air freight handling. Shipments originate from our warehouse in Xiamen, China, with typical dispatch within 2–3 business days of order confirmation. We partner with DHL Express, FedEx International Priority, and UPS Worldwide for time-critical deliveries, with transit times of 3–7 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East. Sea freight consolidation is available for bulk orders. All shipments include a commercial invoice, packing list, and — upon request — a certificate of conformance and inspection report. The 12-month warranty covers manufacturing defects and covers return freight for DOA units.
