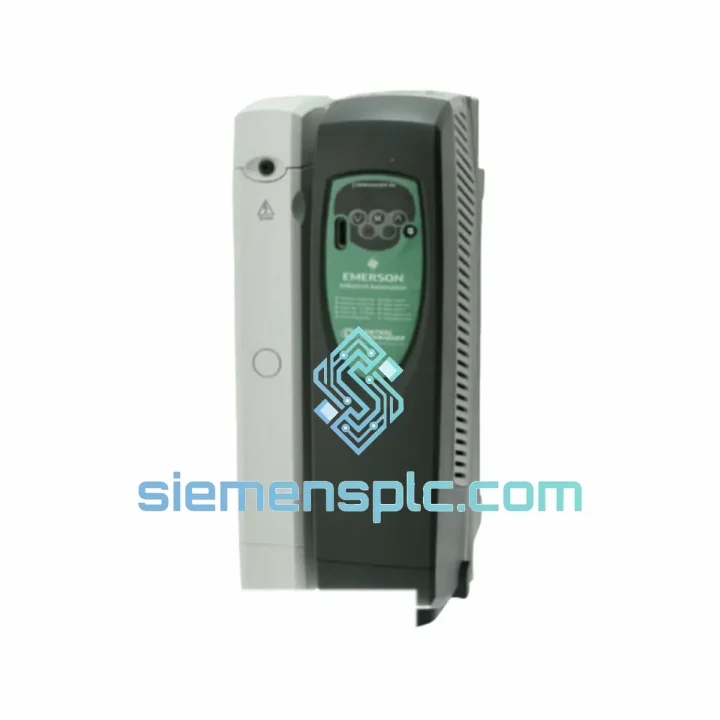

EMERSON BM11M1 AC Variable Speed Drive Module – Unidrive SP

EMERSON BM11M1 — Precision Power Conversion at the Core of Unidrive SP Motion Control

The EMERSON BM11M1 is the base drive module of the Control Techniques Unidrive SP series, a platform that has accumulated over two decades of deployment across continuous-process and discrete-manufacturing environments. This module is not a peripheral accessory — it is the power stage and control nucleus of the drive assembly. When it fails, the entire drive frame loses its ability to regulate motor torque and speed. Every minute of unplanned downtime on a production line running Unidrive SP hardware is a direct financial loss. This page provides the engineering data and sourcing path to resolve that situation without delay.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The BM11M1 integrates the power conversion stage and the primary control DSP on a single module assembly. Understanding its internal architecture is essential for accurate fault diagnosis and replacement planning.

Power Stage Architecture: The inverter section uses IGBT modules arranged in a three-phase bridge configuration. Gate drive circuits are isolated from the control plane via high-speed optocouplers, providing galvanic separation between the high-voltage DC bus (typically 320–340 V DC for 230 V input) and the low-voltage DSP logic. This isolation barrier is the first line of defense against common-mode transients propagating from the motor cable into the control electronics — a failure mode frequently observed in installations with long motor cables or inadequate cable screening.

DSP Control Core: The control board hosts a fixed-point DSP executing the current regulation loop at a 167 µs sample period (6 kHz) in standard configuration. The speed loop runs at a slower outer-loop rate, typically 1 ms. This two-tier loop structure allows the current controller to respond to transient load disturbances within the same PWM cycle, while the speed controller integrates over a longer window to suppress mechanical resonance. Engineers replacing a failed BM11M1 should note that parameter set P0.00–P0.49 (motor nameplate data) and the RFC tuning parameters (P3.xx series) are stored in non-volatile EEPROM on the control board. These parameters do not transfer automatically to a replacement module — they must be re-entered or loaded from a saved parameter file via the keypad or CT Soft commissioning software.

EMC Design: The BM11M1 control board uses a multi-layer PCB with dedicated ground planes separating analog signal traces from digital switching circuits. The analog input section (±10 V, 16-bit ADC) is routed away from the PWM gate drive traces to minimize capacitive coupling. Common-mode chokes are fitted on the DC bus rails within the power stage to attenuate high-frequency noise generated by IGBT switching transitions. For installations in environments with high conducted EMI (e.g., adjacent to large contactors or thyristor drives), the addition of an SM-EMC filter module or an external line reactor on the AC input is recommended to maintain EN 61800-3 C2 compliance.

Thermal Management: The heatsink assembly is integral to the BM11M1 chassis. An internal thermistor monitors heatsink temperature and feeds back to the DSP, which implements a two-stage thermal protection response: first, automatic PWM frequency reduction (from user-set value down to 3 kHz) to reduce switching losses; second, drive trip on fault code Oh1 (heatsink over-temperature) if the temperature threshold is exceeded. Blocked airflow through the heatsink fins is the most common root cause of thermal trips in field installations — inspect and clear the heatsink before fitting a replacement module.

Option Module Interface: The three SM option slots communicate with the control DSP via a proprietary high-speed serial bus internal to the module. Each slot is independently addressable. Slot 3 is reserved for SM-Applications processors that can execute user-defined IEC 61131-3 programs independently of the main drive control loop, enabling embedded motion sequencing without an external PLC.

System Integration Benefits

• Deterministic Current Loop Execution: The 167 µs current regulation cycle is synchronous with the PWM carrier, eliminating phase jitter between the commanded and actual current vectors — critical for RFC-A torque accuracy in winding and tension control applications.
• Three-Mode Control in One Module: V/Hz, RFC-A (sensorless flux vector), and RFC-S (servo with encoder) are all resident in the same firmware image. Switching between modes requires only a parameter change, not a hardware swap — reducing spare-parts inventory requirements for mixed-motor installations.
• Fieldbus Agnosticism via SM Slots: A single BM11M1 base module can be configured for PROFIBUS-DP, DeviceNet, EtherNet/IP, CANopen, or Modbus TCP by fitting the corresponding SM option module. This decouples the drive hardware lifecycle from the plant network protocol, protecting capital investment during network migrations.
• Integrated Safe Torque Off (STO) Path: With SM-Safety fitted, the BM11M1 supports SIL 2 / PLd Safe Torque Off without external safety relays, reducing panel wiring complexity and eliminating the relay contact wear-out failure mode.
• High-Resolution Analog I/O: 16-bit analog inputs provide 0.003% full-scale resolution on speed and torque references, supporting applications where coarse analog resolution would introduce visible speed ripple — e.g., film coating lines or precision extruders.
• Onboard Parameter Storage with Keypad Clone: The MP-Keypad accessory can store a complete parameter set and clone it to a replacement BM11M1 in under two minutes, minimizing commissioning time during emergency replacements on live production lines.
• Diagnostic Transparency via Status Word: The drive exposes a 16-bit status word and a 16-bit fault word over any connected fieldbus, allowing the plant SCADA or PLC to read drive state, active fault code, and output frequency without interrupting the control loop — enabling condition monitoring without additional hardware.
• Auto-Tune Routines: Stationary and rotating auto-tune sequences measure stator resistance, leakage inductance, and rotor time constant directly from the motor terminals. This eliminates the need for motor test certificates during replacement commissioning and ensures RFC-A performance is optimized for the actual installed motor, not nameplate estimates.

Quality Assurance & Global Logistics

Every EMERSON BM11M1 unit dispatched from our Xiamen facility is sourced from verified supply channels — authorized distributors, OEM surplus, or factory-sealed stock — and passes a structured pre-shipment inspection protocol:

• Visual Inspection: PCB surface, connector pins, IGBT module condition, and heatsink integrity checked against reference photographs.
• Label & Firmware Verification: Part number label, date code, and firmware revision sticker cross-referenced against EMERSON part number databases.
• ESD-Safe Handling: All modules handled in ESD-controlled environments and packed in anti-static bags with foam cushioning inside double-wall cartons.
• 12-Month Warranty: Covers manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt.

Logistics from Xiamen, China: Xiamen Gaoqi International Airport (XMN) provides direct cargo connections to major global hubs. Standard export shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Express. Typical transit times: 2–4 business days to Europe, 3–5 business days to North America, 1–3 business days to Southeast Asia. All shipments include a commercial invoice, packing list, and certificate of origin for customs clearance. Dangerous goods declarations are not required for this product category. For time-critical orders, same-day dispatch is available for confirmed payment received before 14:00 CST.
