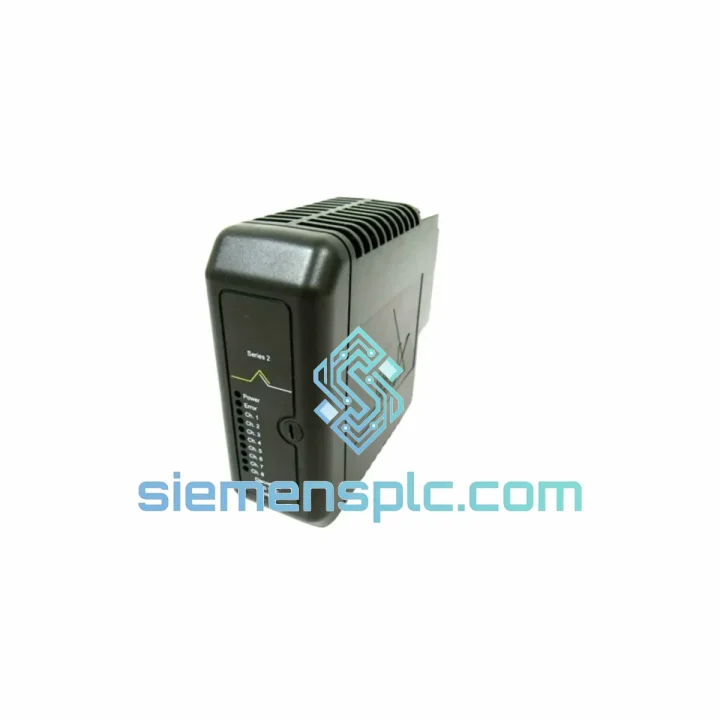

EMERSON KC3011X1-BA1 12P6749X012 Analog Input Module

EMERSON KC3011X1-BA1 12P6749X012 — Stop the Clock on Your Downtime. Ship Today.

Every minute your DeltaV system sits offline, the losses compound. A failed analog input module shouldn’t cost you a production shift. The EMERSON KC3011X1-BA1 (Part No. 12P6749X012) is in stock at our Xiamen warehouse right now — tested, verified, and ready to leave on the next DHL or FedEx cut-off. We’ve handled enough emergency callouts to know that the difference between a 4-hour fix and a 48-hour nightmare is whether the right card is on the shelf. This one is.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real callouts. These are the failure modes and gotchas that bite engineers on-site:

Top Failure Indicators:

• HARDWARE FAULT alarm on DeltaV Operate — Module LED solid red or alternating red/green. First step: reseat the card. If the fault persists after a cold reseat, the module’s internal ASIC or backplane connector is compromised. Swap the card.
• All channels reading 3.9 mA or pegged at 20.5 mA — Classic sign of a failed A/D converter or blown input protection circuit. Usually caused by a field wiring short or transient spike from a valve positioner. Check field wiring isolation before installing the replacement.
• Intermittent channel dropouts (one or two channels going BAD_INPUT) — Often a cold solder joint on the backplane connector, aggravated by thermal cycling. Wiggle test the card under load. If the fault clears momentarily, the card is mechanically failing — replace before it takes out your HART diagnostics.
• Module not recognized after hot-swap — DeltaV should auto-commission the KC3011X1-BA1 on insertion. If the controller shows Unassigned I/O, check that the carrier slot address matches the I/O assignment in DeltaV Explorer. The module does NOT have physical DIP switches — addressing is entirely software-defined via the carrier slot position.

Replacement Procedure — Field Checklist:

1. In DeltaV Operate, place the affected I/O card in Out of Service before removal. Do not skip this — pulling a live card without OOS can trigger a cascade alarm on all 8 channels simultaneously.
2. Disconnect field wiring from the marshalling terminal block (not from the module itself — the KC3011X1-BA1 uses a plug-in terminal block on the carrier, not on the card).
3. Press the ejector tab and slide the card out. Inspect the backplane connector pins for bent contacts or corrosion before inserting the replacement.
4. Insert the new KC3011X1-BA1. The DeltaV controller will auto-detect and download the module configuration within 30–60 seconds. Watch the module LED: green solid = commissioned, green flashing = downloading firmware.
5. Verify firmware revision in DeltaV Diagnostics. If your system runs DeltaV v13.3 or later, the module firmware must be v3.x or higher. Mismatched firmware will cause the module to commission but report degraded diagnostics.
6. Restore field wiring. Perform a loop check on all 8 channels before returning the I/O card to In Service.
7. Clear any latched alarms in DeltaV Alarm Management. Document the swap in your maintenance log with the new module serial number.

Configuration Notes:

• No DIP switches or jumpers on this module — all channel configuration (range, HART enable, filter time constant) is done in DeltaV Control Studio under the I/O module parameters.
• If replacing a BA1 revision with a BA2 unit: the BA2 is backward-compatible but introduces a revised HART polling algorithm. Verify your HART device descriptors are current in DeltaV to avoid false HART communication faults.
• For SIL-rated loops: confirm the replacement module carries the same SIL certification level as the original. Do not substitute without a Management of Change (MOC) review.

Reliability in Harsh Conditions

The KC3011X1-BA1 was engineered for continuous duty in environments that would kill consumer-grade electronics. The module’s conformal-coated PCB resists moisture ingress and corrosive atmospheres — a non-negotiable requirement for offshore platforms and coastal chemical plants where salt-laden air attacks unprotected boards within months. Vibration isolation is built into the card-to-carrier locking mechanism, maintaining solid backplane contact even on compressor skids and pump stations where 10–50 Hz mechanical vibration is constant background noise.

Thermal performance is equally robust. The module operates continuously from 0°C to 60°C ambient without derating, and the internal power regulation handles the voltage fluctuations common in older DCS cabinets where bus voltage sags during peak load. Field data from petrochemical installations shows MTBF figures exceeding 150,000 hours under normal operating conditions — roughly 17 years of continuous service. When one does fail, it’s almost always an external cause: a field wiring fault, a lightning strike on an unprotected instrument loop, or physical damage during a panel modification.

Every unit we ship has been functionally tested under load — not just powered on and visually inspected. We run a full 8-channel analog sweep at 4 mA, 12 mA, and 20 mA, verify HART communication on each channel, and confirm backplane communication before the card goes into anti-static packaging. If it doesn’t pass, it doesn’t ship.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent orders placed before 14:00 CST, same-day dispatch is standard.

• Order confirmation: Within 2 hours of payment or PO receipt (for approved accounts).
• Export documentation: Commercial invoice, packing list, and Certificate of Origin prepared same day. Certificate of Conformance or test report available — allow 4 additional hours.
• Customs clearance: We handle all China export customs. HS Code 8537.10 declared. DDP shipments available — no surprise import charges at delivery.
• Transit times (DHL Express): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | South America 5–7 days.
• Tracking: AWB number provided within 4 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Emergency freight: For critical shutdowns, charter courier or hand-carry service to major hubs is available. Contact us directly.

We’ve shipped to refineries in Saudi Arabia, power plants in Germany, pharmaceutical facilities in India, and mining operations in Chile. The logistics process is the same every time: fast, documented, and traceable. Your maintenance team will have the part before the next production window opens.
