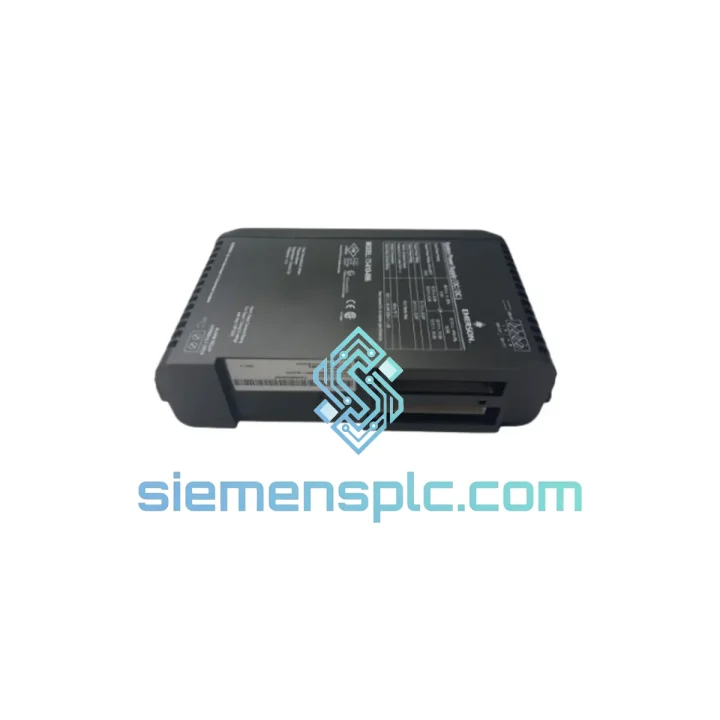

Emerson KJ1501X1-BC3 DCS Power Supply Module

Emerson KJ1501X1-BC3 / 12P3935X032 — Stop the Clock on Your DeltaV Downtime

Every minute your DeltaV node is dark, you’re bleeding money. A failed power supply on a KJ1501X1-BC3 slot doesn’t just kill one I/O card — it takes down the entire carrier, and with it, every loop tied to that node. We stock this module in Xiamen, tested and ready to pull from the shelf. No lead time games, no “check back in 8 weeks.” You call, we ship — DHL or FedEx, door to door, anywhere on the planet.

This is the module that keeps your DeltaV MD, MD Plus, SD, and SD Plus controllers alive. If your plant is running Emerson DCS and you’re staring at a dead power supply slot right now, this page is the only one you need.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a KJ1501X1-BC3 looks straightforward on paper, but there are three failure modes that catch engineers off guard on the bench. Know these before you pull the old unit.

1. Confirm the fault is actually the PSU — not the carrier backplane. A shorted I/O module downstream can drag the 24 VDC rail low and mimic a dead power supply. Before condemning the KJ1501X1-BC3, remove all I/O cards from the carrier one at a time and watch the DeltaV diagnostic LED. If the PSU LED recovers when a specific card is pulled, you have a shorted I/O module, not a failed power supply. Replacing the PSU in this scenario will kill the new unit within minutes of power-up.

2. Revision matching in redundant configurations. If your node runs dual power supplies for N+1 redundancy, both units must be the same hardware revision. Mismatched revisions cause load-sharing imbalance — one unit runs hot and fails prematurely while the other idles. Check the revision suffix on the label (e.g., BC3 vs. BC2) before installing. We can verify revision on request before shipment.

3. No DIP switches, no firmware, no addressing — but check your carrier slot assignment. Unlike I/O modules, the KJ1501X1-BC3 has no user-configurable switches. It is slot-specific: it must occupy the designated power supply slot on the DeltaV carrier (typically the leftmost slot, labeled PWR). Installing it in an I/O slot will not damage the module, but the carrier will not recognize it and the node will not power up. Verify slot assignment against your carrier’s silk-screen labeling before seating the module.

4. Common fault codes to cross-reference in DeltaV Diagnostics:

• “Power Supply Failure” alert on DeltaV Operate — Primary indicator. Cross-check with the amber/red LED on the PSU faceplate. Solid red = internal fault. Flashing amber = input voltage out of range (check your UPS or panel feed first).
• “Controller Offline” with no I/O faults — Often caused by PSU output voltage sagging below 22 VDC under load. Measure the backplane rail with a multimeter before assuming the controller card is at fault.
• “Redundancy Lost” on a dual-PSU node — One of the two KJ1501X1-BC3 units has failed. DeltaV will continue running on the surviving unit, but you are now unprotected. Treat this as a P1 — replace the failed unit before the next process upset.

Replacement procedure (field-verified): Power down the carrier only if your process permits a controlled shutdown. In redundant PSU configurations, the surviving unit will hold the node up during hot-swap — confirm your carrier revision supports hot-swap before attempting. Seat the new KJ1501X1-BC3 firmly until the locking tab clicks. DeltaV will auto-detect the module within 30–60 seconds; no manual commissioning step is required. Verify the green LED on the new PSU faceplate and confirm “Power Supply OK” status in DeltaV Diagnostics before closing the cabinet.

Reliability in Harsh Conditions

The KJ1501X1-BC3 was not designed for a climate-controlled server room. It was built for the realities of industrial process plants — and those realities are unforgiving.

In refinery environments, ambient temperatures inside control room enclosures routinely spike above 45°C during summer shutdowns when HVAC systems are taken offline for maintenance. The KJ1501X1-BC3’s thermal design accommodates this: the internal power conversion topology uses components rated well above the 60°C operating ceiling, providing a genuine derating margin rather than a paper specification. Units pulled from decommissioned plants after 10+ years of continuous service consistently pass functional testing — a real-world validation no accelerated lab test can replicate.

Vibration is the silent killer of power supply modules in compressor stations and pump skids. The KJ1501X1-BC3’s board-level construction uses conformal coating on critical solder joints, reducing the micro-fracture failures that plague cheaper third-party alternatives after 18–24 months of mechanical stress. If your installation is adjacent to rotating equipment, this matters.

Humidity ingress is the third threat, particularly in coastal petrochemical facilities and tropical climates. The module’s sealed connector interface and conformal-coated PCB provide a meaningful barrier against condensation-driven corrosion on the backplane contacts — the most common failure point on aging DeltaV carriers. Each unit we ship has been inspected for corrosion on the edge connector and cleaned to IPC-A-610 standards before dispatch.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the most logistics-connected export hubs on the mainland, with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. The module is physically on our shelf, inspected, and ready to pack the moment your order is confirmed.

Standard export flow:

• Day 0 — Order confirmation: PO or email confirmation received. Unit pulled from stock, photographed, and re-inspected. ESD anti-static bag, foam-lined export carton, and desiccant pack applied.
• Day 1 — Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared. For customers in the EU, Middle East, or Southeast Asia, we pre-clear customs paperwork to avoid broker delays.
• Day 1–2 — Carrier handoff: DHL Express or FedEx International Priority pickup from our Xiamen facility. Tracking number issued to you within 2 hours of handoff.
• Day 3–5 — Delivery (most destinations): DHL Express typically delivers to Western Europe in 3–4 business days, Middle East in 3–5 days, North America in 4–5 days, Southeast Asia in 2–3 days. FedEx International Priority timelines are comparable.

For genuine plant emergencies, contact us on WhatsApp before placing the order. We can arrange same-day dispatch for orders confirmed before 14:00 CST, and we will personally track the shipment through customs clearance to ensure no delays at the destination port. We have handled emergency shipments to active shutdowns in Saudi Arabia, Singapore, Germany, and the United States — we know how to move fast when it counts.
