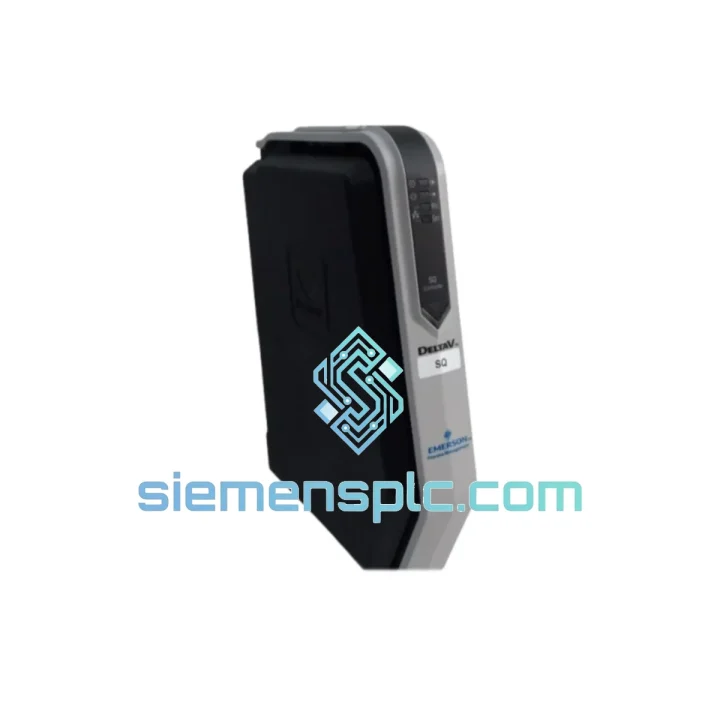

Emerson KJ2005X1-SQ1 12P6383X022 DCS I/O Module – DeltaV Series

Emerson KJ2005X1-SQ1 12P6383X022 — 8-Channel Analog Input Card for DeltaV Distributed Control Systems

In a distributed control system, the analog input subsystem is the sensory layer of the entire control architecture. Without accurate, low-latency signal acquisition from field transmitters, every downstream function — PID loop execution, alarm management, historian logging, and advanced process control — operates on degraded or absent data. The Emerson KJ2005X1-SQ1 (part number 12P6383X022) is an 8-channel analog input I/O card engineered specifically for the DeltaV platform, providing the signal conditioning, isolation, and HART communication infrastructure that process engineers depend on in continuous and batch manufacturing environments.

This module occupies a single slot on a DeltaV I/O carrier and interfaces directly with the DeltaV I/O bus backplane, drawing power and exchanging data without any external wiring to the controller chassis. Each of its eight channels accepts 4–20 mA signals from field-mounted transmitters and performs 16-bit analog-to-digital conversion, delivering process variable data to the DeltaV controller with a scan cycle consistent with the system’s configured I/O scan rate. The hardware revision confirmed by part number 12P6383X022 aligns with DeltaV software versions that support HART pass-through, enabling secondary variable access and device diagnostics without additional multiplexers or HART modems.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KJ2005X1-SQ1 implements a per-channel optical isolation barrier between the field wiring terminals and the internal digital logic. This galvanic separation is not a single shared barrier across all eight channels — each channel maintains its own isolation boundary, rated to withstand transient voltages that commonly appear on long cable runs in industrial environments (lightning-induced surges, ground potential differences between field junction boxes and the control room). The practical consequence is that a fault condition on one channel — including a wiring short or a transmitter failure that drives the loop to saturation — does not propagate to adjacent channels or corrupt the backplane data bus.

The analog front end uses a sigma-delta ADC architecture operating at 16-bit resolution. Sigma-delta conversion inherently includes oversampling and digital filtering, which suppresses high-frequency noise components that would otherwise alias into the measurement band. For process signals in the 4–20 mA range, this translates to a measurement resolution of approximately 0.0015% of span per count — sufficient for tight PID loop control on flow, pressure, temperature, and level applications where transmitter accuracy is in the 0.1–0.5% range.

HART communication is implemented at the physical layer by superimposing a frequency-shift keyed (FSK) signal at 1200 Hz (logic 1) and 2200 Hz (logic 0) on the 4–20 mA DC loop. The KJ2005X1-SQ1 includes an on-board HART modem per channel that demodulates this FSK signal and passes HART frames to the DeltaV controller via the I/O bus. This architecture allows the DeltaV Asset Management Solutions (AMS) software to poll secondary variables, device status, and diagnostic alerts from HART-enabled transmitters without interrupting the primary process variable measurement. The HART polling rate is managed by the DeltaV controller and does not introduce jitter into the analog scan cycle.

The module’s backplane connector interfaces with the DeltaV I/O bus at the carrier level. The I/O bus is a deterministic, time-division multiplexed serial bus that the DeltaV controller scans at a configurable rate (typically 100 ms for standard I/O, down to 50 ms for fast I/O configurations). The KJ2005X1-SQ1 responds to bus scan cycles by presenting all eight channel values in a single burst transfer, minimizing bus occupancy and ensuring that the controller receives a coherent snapshot of all eight process variables within the same scan period.

System Integration Benefits

• Zero-reconfiguration replacement: The DeltaV controller auto-detects the I/O card type and hardware revision upon insertion. In most installations, replacing a failed KJ2005X1-SQ1 requires no software changes — the controller resumes scanning the replacement module within one bus scan cycle after the card is seated.
• Hot-swap support in redundant I/O configurations: When deployed with a redundant I/O carrier, the module can be removed and reinserted while the process is running. The redundant partner card maintains signal acquisition continuity, and the replacement card synchronizes its state from the partner without operator intervention.
• HART secondary variable access: Each channel can simultaneously deliver the primary process variable (PV) via the 4–20 mA signal and up to three secondary variables (SV, TV, QV) via HART, enabling multivariable transmitters (e.g., Coriolis flow meters, multivariable pressure transmitters) to report density, temperature, and mass flow through a single wiring pair.
• Integrated device diagnostics: HART device status bytes are passed to DeltaV AMS, enabling predictive maintenance workflows. Transmitter faults, sensor degradation alerts, and calibration reminders appear in the AMS device list without requiring a handheld communicator at the field device.
• Deterministic scan cycle: The I/O bus architecture guarantees that all eight channel values are delivered to the controller within the configured scan period, with no scan-to-scan jitter introduced by the I/O card itself. This is a prerequisite for cascade control loops where the secondary loop must respond to primary loop output changes within a defined time window.
• Channel-level fault detection: The module reports open-loop, over-range, and under-range conditions on a per-channel basis to the DeltaV controller. These conditions are surfaced as I/O module alarms in the DeltaV Operate environment, allowing operators to identify a failed transmitter or broken wire without leaving the control room.
• Compatibility across DeltaV controller generations: The KJ2005X1-SQ1 is compatible with DeltaV M-Series controllers (MD, MD Plus) and S-Series controllers (SD, SD Plus, SX), as well as DeltaV Virtual I/O Module (VIOM) configurations. This cross-generation compatibility protects the investment in existing I/O infrastructure when controllers are upgraded.
• Reduced marshalling complexity: When used with DeltaV CHARM I/O in hybrid architectures, the KJ2005X1-SQ1 can serve as a traditional I/O card in the same system that also uses characterization modules, allowing engineers to mix traditional and CHARM I/O within a single DeltaV system without separate controller instances.

Quality Assurance & Global Logistics

Every KJ2005X1-SQ1 12P6383X022 unit supplied by siemensplc.com is sourced as genuine Emerson hardware. Units are inspected upon receipt for physical integrity — connector pin condition, PCB surface, label authenticity, and firmware revision marking. Functional verification is performed against known-good DeltaV reference configurations where applicable. All units are stored in ESD-controlled environments and shipped in anti-static packaging with foam cushioning to prevent mechanical damage during transit.

Our logistics operation is based in Xiamen, China — a major international port city with direct air freight connections to North America, Europe, the Middle East, Southeast Asia, and Australia. Standard export shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to most destinations. For bulk orders or project-based procurement, sea freight consolidation through Xiamen Port is available with competitive lead times. All shipments include commercial invoice, packing list, and certificate of origin documentation required for customs clearance. Export compliance screening is performed on all orders in accordance with applicable trade regulations.

A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 2 business days. Replacement units are dispatched upon confirmation of the defect, and failed units are returned for root cause analysis where requested.
