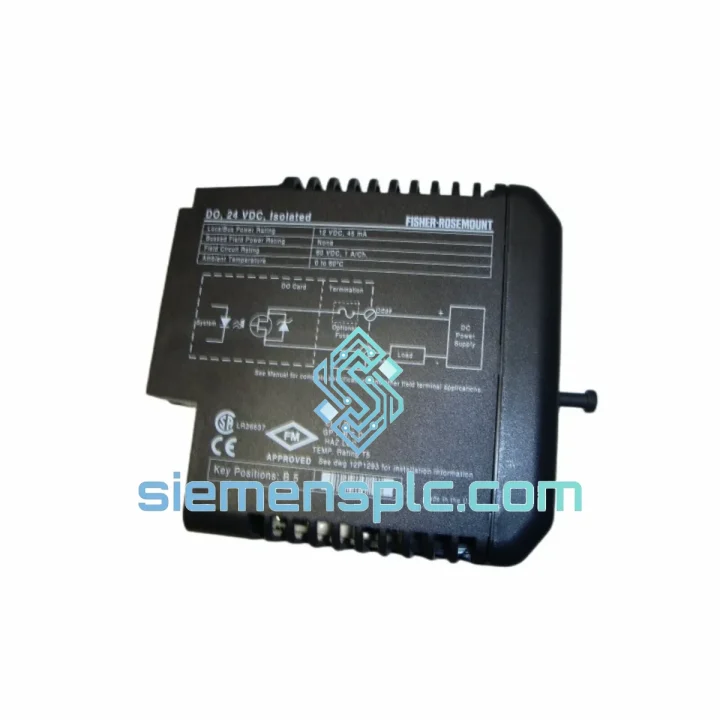

EMERSON KJ3001X1-BG1 12P0557X122 Digital Output Module

EMERSON KJ3001X1-BG1 12P0557X122 — Stop the Bleed: Get Your DeltaV DO Loop Back Online Before the Next Shift

Your DeltaV digital output card just dropped. Actuators are frozen. The control room is calling. Every minute that loop stays open is money walking out the door — in oil & gas, that number starts at $15,000/hour and climbs fast. The EMERSON KJ3001X1-BG1 12P0557X122 is on the shelf in Xiamen right now. We’ve done this before. Let’s get you back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience — not a manual reprint.

Most Common Failure Modes on KJ3001X1-BG1:

• Output channel stuck LOW / no field response: First suspect is internal MOSFET driver failure, typically triggered by sustained inductive load spikes from solenoid valves without flyback diodes. Before swapping the card, check your field wiring for missing suppression diodes — a new card will fail the same way within weeks if the root cause isn’t fixed.
• Intermittent channel dropout under vibration: Connector seating issue. On the KJ3001X1 series, the I/O carrier latch can work loose in high-vibration environments. Reseat and verify latch engagement before condemning the module.
• Module fault LED solid red, DeltaV alarm: “I/O Card Failure”: Pull the module, inspect the backplane connector pins for oxidation or bent contacts. Clean with IPA and reseat. If fault persists after reseating, the module’s internal watchdog has tripped — replacement is required.
• Partial channel failure (some outputs work, others don’t): Classic sign of a blown output driver on specific channels. The KJ3001X1-BG1 does not support channel-level repair in the field — full module swap is the only path.

Step-by-Step Hot-Swap Replacement Procedure:

1. Confirm the DeltaV controller is in Auto mode and downstream loops are in manual or have been handed off to backup control. Do not pull the card with live outputs driving critical actuators unless you have confirmed safe state.
2. In DeltaV Explorer, navigate to the I/O subsystem node. Right-click the failing module → Decommission. This prevents the controller from generating spurious alarms during the swap.
3. Physically unlatch the module from the I/O carrier. The KJ3001X1-BG1 uses a top-tab latch — press down and pull straight out. Do not rock the module side-to-side; the backplane connector is fragile.
4. Insert the replacement KJ3001X1-BG1 12P0557X122. Confirm the latch clicks. The module will self-address from the carrier — no DIP switch or jumper configuration is required on this series. Address is carrier-slot-determined.
5. In DeltaV Explorer, right-click the slot → Commission. The module will download its configuration automatically from the controller database. Allow 30–60 seconds for full initialization.
6. Verify all output channels in the DeltaV Operate display. Confirm field devices respond. Return loops to Auto mode.
7. Document the swap: module serial number, date, technician, failure symptom. This data is critical for warranty claims and reliability trending.

Firmware Note: The KJ3001X1-BG1 12P0557X122 revision is firmware-agnostic at the module level — firmware is managed by the DeltaV controller, not the I/O card. No firmware flashing is required post-replacement. If your DeltaV system is running a version older than v11, verify I/O subsystem compatibility with your system integrator before ordering.

Reliability in Harsh Conditions

The KJ3001X1-BG1 was not designed for a climate-controlled server room. It was built for the kind of environments where things actually break — offshore platforms with salt-laden air, petrochemical plants where ambient temps hit 55°C before noon, and cement facilities where vibration is a constant background condition.

Channel-to-channel isolation is the module’s most critical reliability feature in these environments. Ground loops are the silent killer of DO cards in industrial settings — a single ground fault on one field device can cascade across non-isolated output channels and take down an entire module. The KJ3001X1-BG1’s isolated architecture contains that fault to a single channel, keeping the rest of your outputs alive while you troubleshoot.

The module’s conformal-coated PCB provides resistance to humidity and airborne contaminants — relevant in coastal installations and facilities with chemical vapor exposure. The housing is designed to maintain contact integrity across the DeltaV I/O carrier connector through thermal cycling, which is the primary mechanical stress in environments with wide day-night temperature swings.

Every unit we ship has been bench-tested under simulated 24 VDC load across all output channels. We do not ship untested stock. If a module has sat in a warehouse for years, we verify it before it goes in a box — because a module that fails on arrival is worse than no module at all when your plant is down.
