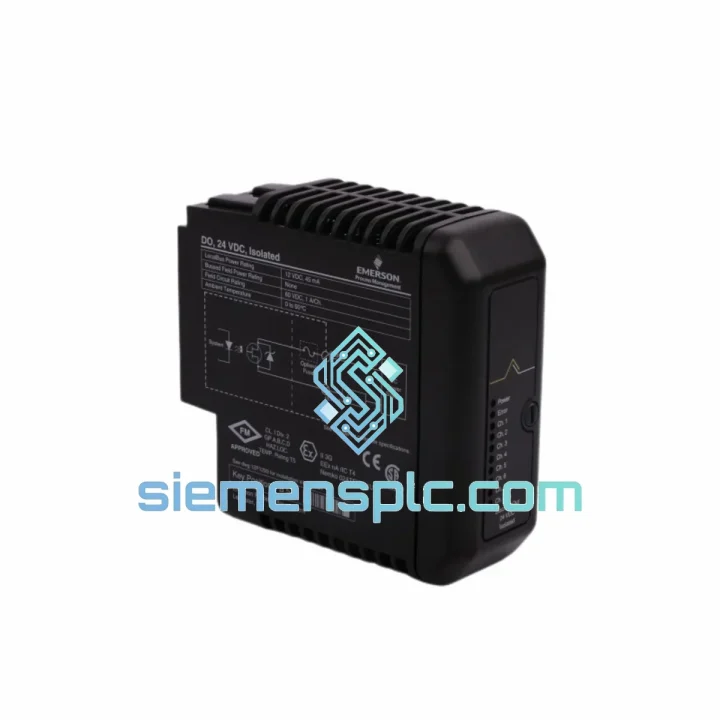

EMERSON KJ3001X1-BG1 DCS I/O Module

EMERSON KJ3001X1-BG1 — Stop the Bleed: Every Minute of DCS Downtime Costs You Real Money

Your DeltaV system just threw a DO fault. The board is dark. The solenoid bank is dead. Production is stopped and the clock is running. You don’t need a catalog — you need the KJ3001X1-BG1 (12P0557X162) on a plane out of Xiamen today. We stock it. We ship it. We’ve done this hundreds of times for plants that couldn’t wait.

URGENT REQUIREMENT?
📧 [email protected] | 📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of emergency callouts, here’s what actually goes wrong with the KJ3001X1-BG1 and what to watch when you swap it:

Top Failure Modes in the Field:

• Stuck output / no field response: The output driver MOSFET fails open or shorted — typically caused by inductive kick from solenoid valves without proper flyback suppression. Check your field wiring for missing snubber diodes before installing the replacement.
• Module LED solid red / DeltaV diagnostic alarm: Usually a firmware mismatch after a controller upgrade. The BG1 revision requires DeltaV v11.3.1 or later. If your system is on an older release, a BA1 or BB1 revision may be a safer swap.
• Intermittent channel faults (not all channels): Suspect moisture ingress at the field terminal block or a failing 24 VDC field supply rail. Measure field supply voltage under load — anything below 21.6 VDC will cause marginal channels to drop out.
• Module not recognized after hot-swap: DeltaV supports hot-swap, but the carrier slot must be powered and the module must be pre-commissioned in DeltaV Explorer. If the module shows as “unassigned” after insertion, right-click the slot in Explorer and select “Commission.”

Replacement Checklist — Do This Before You Pull the Old Card:

• Export the current module configuration from DeltaV Explorer (right-click → Export). This saves your channel assignments and I/O parameter settings.
• Confirm the replacement revision (BG1) is listed in your DeltaV system’s hardware compatibility matrix for your controller firmware version.
• Note the field terminal block wiring diagram — photograph it before disconnecting. The KJ3001X1-BG1 uses a 24-pin field connector; pin assignments are not always obvious from the label.
• After insertion, verify the module status LED goes green within 30 seconds. If it stays amber, the module is downloading configuration — wait. If it goes red, check DeltaV Diagnostics for the specific fault code.
• Run a channel-by-channel output test from DeltaV Operate before handing back to operations. Force each channel ON/OFF and confirm field device response.
• There are no DIP switches or hardware address settings on this module — addressing is handled automatically by the DeltaV I/O bus. No jumper configuration required.

Common DeltaV Fault Codes for DO Modules:

• S_BAD / Uncertain — Module offline or not communicating. Check carrier seating and I/O bus power.
• Hardware Failure — Internal module fault. Replace the card.
• Field Device Failure — Output channel active but no field feedback. Check field wiring and load device.
• Out of Service — Channel manually set OOS in DeltaV. Release from OOS in Operate or Explorer.

Reliability in Harsh Conditions

The KJ3001X1-BG1 was engineered for continuous duty in process plant environments — not office conditions. Galvanic isolation between each output channel and the I/O bus means a field-side wiring fault or voltage spike won’t cascade into the controller backplane. We’ve seen this module survive direct 24 VDC shorts on output channels that would have killed a non-isolated card.

The conformal coating on the PCB provides meaningful protection against humidity and airborne contaminants — relevant in coastal chemical plants, offshore platforms, and tropical climates where condensation is a real operational risk. Operating range of 0°C to 60°C covers the vast majority of control room and marshalling cabinet environments globally.

Vibration tolerance meets IEC 68-2-6 test profiles, which matters in compressor stations and rotating equipment skids where cabinet vibration is constant. The card-edge connector and carrier locking mechanism are designed for repeated insertion cycles — important when you’re doing emergency swaps under pressure.

Units in our Xiamen stock are stored in climate-controlled conditions, inspected for physical integrity, and verified against original Emerson labeling and serial number formats before dispatch. We do not list units we cannot stand behind.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here’s how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Transit to Southeast Asia: 1–2 business days.
• Transit to Middle East / Europe: 2–4 business days.
• Transit to North America: 3–5 business days.
• Transit to Australia / South America: 4–6 business days.

All shipments include a commercial invoice with accurate HS code (8537.10) and declared value for customs clearance. We prepare export documentation — packing list, certificate of origin on request — to prevent customs holds that would defeat the purpose of express shipping. Tracking numbers are sent within 2 hours of dispatch.

For orders requiring import permits or end-user declarations in regulated jurisdictions, contact us in advance. We’ve handled exports to refineries, power stations, and pharmaceutical plants across 40+ countries and know where the paperwork friction points are.
