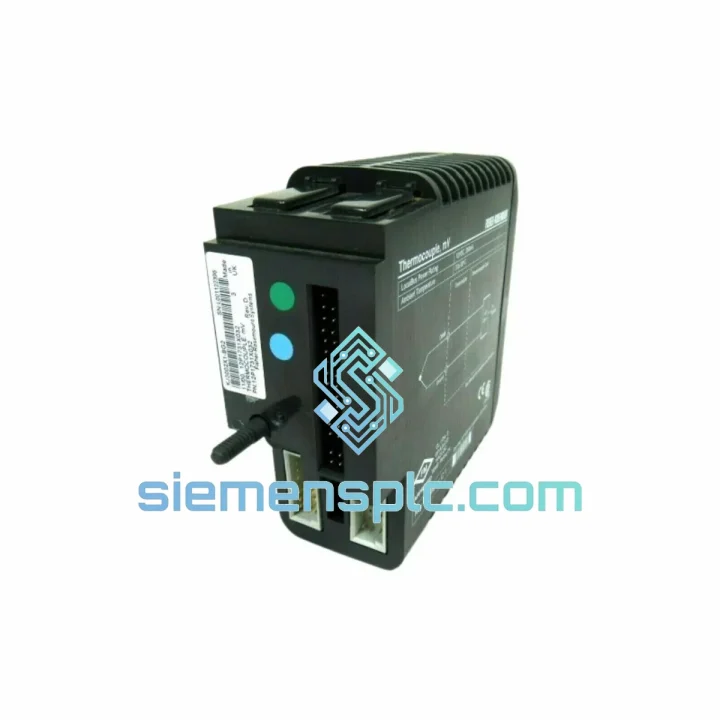

EMERSON KJ3002X1-BG2 Thermocouple Input Module – DeltaV Series

EMERSON KJ3002X1-BG2 12P1731X032 — 8-Channel Thermocouple Input Module in DeltaV DCS Temperature Control Architecture

The EMERSON KJ3002X1-BG2 (alternate part number 12P1731X032) is an 8-channel thermocouple input I/O module designed exclusively for the DeltaV distributed control system platform. Within a DeltaV control loop, this card occupies the signal acquisition layer between field-mounted thermocouples and the controller’s process execution environment. Its primary function is to digitize millivolt-level thermoelectric EMF signals from up to eight independent thermocouple circuits, apply per-channel cold junction compensation, perform open-circuit fault detection, and transmit calibrated engineering-unit values to the DeltaV controller over the proprietary I/O bus — all within a deterministic scan cycle that the controller relies on for closed-loop temperature regulation.

Unlike generic signal conditioners or universal analog input cards, the KJ3002X1-BG2 is firmware-matched to the DeltaV I/O bus protocol. The module self-identifies to DeltaV Explorer upon insertion, populating channel configuration templates automatically. This eliminates manual address assignment and reduces commissioning time on multi-loop temperature control projects where dozens of TC channels must be brought online under schedule pressure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KJ3002X1-BG2 is built around a per-channel signal chain that begins at the screw-terminal field interface and terminates at the I/O bus backplane connector. Each of the eight input channels routes through an individual analog front-end consisting of a precision instrumentation amplifier, a low-pass anti-aliasing filter, and a 16-bit successive-approximation analog-to-digital converter. Channel-to-channel isolation is implemented via optical coupling barriers, which break ground loops that would otherwise corrupt millivolt-level thermocouple signals in industrial environments where common-mode noise from variable-frequency drives, large motor contactors, and ground potential differences between field junction boxes can reach tens of volts.

Cold junction compensation is handled by an on-board precision thermistor mounted at the terminal block reference plane. The module’s firmware continuously samples this thermistor and applies the Seebeck coefficient correction for the configured TC type on each channel. This approach eliminates the measurement error introduced by ambient temperature drift at the panel terminal — a common failure mode in systems that rely on fixed-value CJC resistors or external isothermal blocks.

Open-circuit detection operates by injecting a sub-microampere bias current into each TC circuit during the inter-sample interval. If the circuit impedance exceeds the module’s threshold (indicating a broken wire, corroded terminal, or disconnected sensor), the channel flags a diagnostic alarm and drives the process variable to the configured upscale or downscale limit. This behavior is configurable per channel in DeltaV Explorer, allowing engineers to define a safe-state response appropriate to the process — for example, driving a temperature PV to maximum on a fired heater to trigger a burner shutdown interlock.

The module communicates with the DeltaV controller via the backplane I/O bus using a time-division multiplexed protocol. The bus arbitration logic within the module ensures that all eight channel values are refreshed within a single controller scan cycle, maintaining data coherency for multi-channel temperature differential calculations — such as those used in heat exchanger effectiveness monitoring or reactor temperature gradient control. The module’s internal microprocessor also maintains a self-diagnostic register that the DeltaV controller polls continuously; hardware faults, calibration drift flags, and communication errors are surfaced in DeltaV Diagnostics without requiring manual interrogation of the field device.

From an EMC design standpoint, the PCB layout employs a split ground plane strategy that separates the analog signal ground from the digital logic ground, with a single-point star connection at the power entry. Decoupling capacitors are placed at each IC power pin, and the backplane connector pins are filtered with ferrite beads to suppress high-frequency conducted emissions from the I/O bus. This design allows the module to maintain specified accuracy in environments with radiated field strengths up to 10 V/m across the 80 MHz to 1 GHz band — consistent with IEC 61000-4-3 test levels applicable to industrial control equipment.

System Integration Benefits

• Zero-configuration auto-discovery: Upon insertion into a populated I/O carrier, the module transmits its device descriptor to DeltaV Explorer, which automatically assigns the correct I/O module template. Engineers do not manually enter channel counts, signal types, or bus addresses — reducing configuration errors on large-scale projects with hundreds of I/O points.
• Mixed TC type support within a single module: Each of the eight channels can be independently configured for a different thermocouple type (e.g., K-type on channels 1–4 for process temperatures, R-type on channels 5–6 for high-temperature furnace zones). This eliminates the need for separate module types per TC variant, reducing spare parts inventory and cabinet footprint.
• Deterministic scan cycle contribution: The module delivers all eight channel values within the controller’s configured scan period (typically 100 ms to 1 s for temperature loops), ensuring that the PID execution block receives fresh process variable data on every scan — a prerequisite for stable closed-loop control in processes with fast thermal dynamics.
• Per-channel diagnostic transparency: Open-circuit faults, out-of-range readings, and CJC errors are reported as individual channel alarms in DeltaV Alarm Management, with timestamps and alarm priority levels configurable per ISA-18.2 rationalization. Operators can identify a failed thermocouple at the HMI without dispatching a technician to the field cabinet.
• Hot-swap maintenance without process interruption: The module can be extracted and replaced while the I/O carrier remains powered and the controller continues executing. Adjacent channels on the same carrier are unaffected. This is critical in continuous-process industries where planned shutdowns for I/O maintenance are economically prohibitive.
• SIL 1 architectural compatibility: When integrated into a DeltaV SIS architecture with appropriate safety function design, the KJ3002X1-BG2 can participate in SIL 1 safety instrumented functions. The module’s per-channel fault detection and configurable safe-state output behavior support the diagnostic coverage requirements of IEC 61508 at this integrity level.
• Reduced field wiring complexity: Because the module draws power from the I/O bus carrier, no separate 24 VDC field power wiring is required at the module level. Field wiring is limited to the thermocouple extension cables at the terminal block — simplifying cabinet design and reducing the number of potential wiring fault points.
• Long-term platform continuity: The KJ3002X1-BG2 is part of the DeltaV S-Series I/O family, which has maintained backward compatibility across multiple DeltaV software generations. Installed modules continue to operate without hardware replacement as the DeltaV software version is upgraded, protecting the capital investment in the I/O infrastructure.
• Firmware-level calibration traceability: The module stores its factory calibration coefficients in non-volatile memory. DeltaV Diagnostics can retrieve and log these coefficients, providing an auditable calibration record that supports ISO 9001 quality management requirements and regulatory inspection documentation in pharmaceutical and food processing facilities.

Quality Assurance & Global Logistics

Every KJ3002X1-BG2 unit offered through siemensplc.com is sourced from verified industrial automation supply channels and represents genuine EMERSON manufacture. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: physical integrity verification of the backplane connector pins and PCB edge connector, label legibility and part number cross-reference against EMERSON’s published revision matrix, and ESD-safe repackaging in anti-static foam-lined cartons with desiccant packs to protect the analog front-end circuitry during transit.

Our logistics operations are based in Xiamen, China — a major export hub with direct access to international freight forwarders and express courier networks. Standard shipment options include DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to North America, Europe, Southeast Asia, and the Middle East. For time-critical plant shutdowns or emergency maintenance situations, same-day dispatch is available for orders confirmed before 14:00 CST. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for every international shipment to facilitate customs clearance without delay.

All units are covered by a 12-month warranty from the date of shipment. Units that exhibit functional failure under normal operating conditions within the warranty period will be replaced or credited. Technical support for installation, DeltaV configuration, and compatibility verification is provided by our engineering team at no additional charge.
