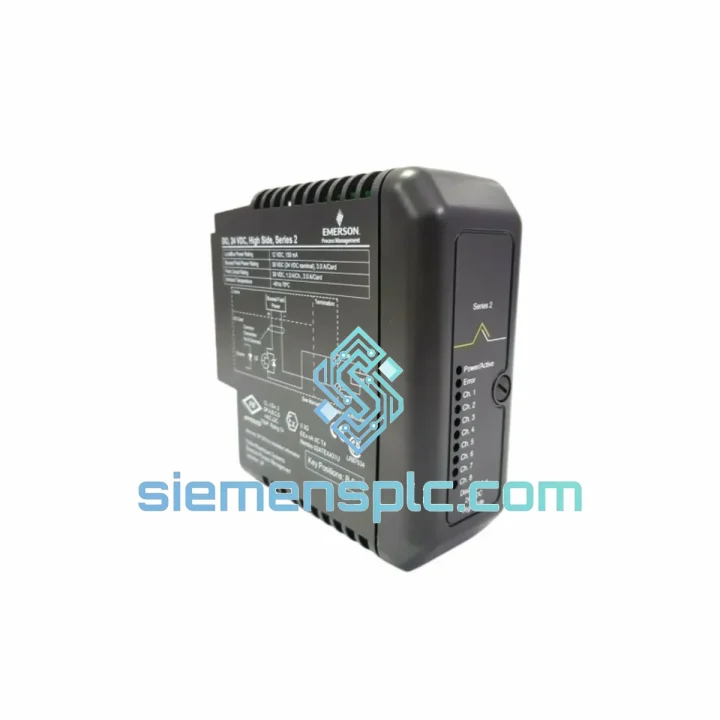

Emerson KJ3202X1-BA1 12P2536X062 High Side Card

KJ3202X1-BA1 High Side Card: Every Hour of Downtime Costs You — We Ship Today

Your DeltaV system is down. The High Side Card is dead. The controller is blind to every I/O channel on that carrier. Production is stopped, your maintenance window is burning, and procurement is calling every 20 minutes. You don’t need a sales pitch — you need the part on a plane tonight.

We stock the Emerson KJ3202X1-BA1 (cross-ref: 12P2536X062) in Xiamen. Verified functional. ESD-packed. DHL label ready. If you place the order before 18:00 CST, it moves today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling failed cards out of live DCS cabinets, here is what actually matters when you swap a KJ3202X1-BA1:

1. Confirm the fault is the High Side Card, not the carrier or power rail. Before you pull the card, check the DeltaV Diagnostics Explorer. A dead High Side Card typically throws Module Not Responding or I/O Card Failure on every channel of that carrier simultaneously — not on isolated channels. Isolated channel faults point to a Low Side Card or field wiring issue. Don’t swap the wrong card.

2. Power sequencing matters. The High Side Card draws its logic power from the carrier backplane. If the carrier’s 24 VDC rail is sagging below 21.6 V under load, a new KJ3202X1-BA1 will fault immediately after insertion. Measure the rail before you seat the replacement. A failing power supply is the most common reason a replacement High Side Card appears dead on arrival.

3. No DIP switches, no address jumpers. The KJ3202X1-BA1 uses automatic self-addressing via the DeltaV bus — there are no physical address switches to set. The module negotiates its slot address with the controller on power-up. If the controller does not recognize the card after insertion, force a download of the I/O configuration from DeltaV Explorer to re-establish the binding.

4. Firmware revision matching. In most DeltaV installations, the High Side Card firmware is managed by the controller and updated automatically during a system download. However, if you are running DeltaV v10.x on an older installation, verify that the replacement card’s firmware baseline is compatible before going live. Check the card’s label for the hardware revision suffix (e.g., -BA1 vs. -BB1) and cross-reference with Emerson’s compatibility matrix for your software version.

5. Hot-swap procedure. In a redundant I/O configuration, you can replace the KJ3202X1-BA1 without shutting down the carrier — the redundant card takes over within milliseconds. In a non-redundant setup, the carrier goes offline during the swap. Coordinate with the control room: put affected loops in manual before pulling the card. Seat the replacement firmly until the locking tab clicks. The card should enumerate within 30–60 seconds and channels should return to service automatically if the configuration download is current.

6. Common fault codes:

• Module Not Responding (MNR) — High Side Card has lost communication with the controller. Check bus cable seating and carrier power first.
• Card Failure — Internal hardware fault detected by on-board diagnostics. The card needs replacement.
• Configuration Mismatch — The physical card does not match the downloaded configuration. Re-download from DeltaV Explorer.
• Power Supply Fault — Carrier power rail out of spec. Measure before blaming the card.

Reliability in Harsh Conditions

DeltaV High Side Cards were engineered for continuous operation in process plant environments — not office conditions. The KJ3202X1-BA1 is built to handle the realities of the field.

Vibration: The PCB layout and component selection comply with IEC 60068-2-6 vibration profiles. Conformal coating protects solder joints from micro-cracking under sustained mechanical vibration — a common failure mode in compressor rooms and rotating equipment areas. The edge connector is rated for repeated insertion cycles without contact degradation.

Thermal cycling: Operating range of 0 °C to +60 °C covers the majority of industrial control room environments. The card’s thermal design relies on convective airflow through the DeltaV carrier — ensure cabinet ventilation is unobstructed. In high-ambient installations (tropical climates, non-air-conditioned substations), verify that the carrier’s internal temperature does not exceed the module’s rated limit. A thermal camera scan of the carrier during peak load is a 10-minute check that can prevent a 10-hour outage.

Humidity and condensation: Conformal coating provides protection against humidity up to 95% RH non-condensing. In coastal or offshore installations, inspect the card’s connector pins for oxidation during scheduled maintenance. A light application of contact cleaner and reseating the card can resolve intermittent communication faults that appear humidity-correlated.

EMI/RFI: The DeltaV carrier provides shielded backplane communication. The KJ3202X1-BA1 operates in environments with variable-frequency drives, large motor starters, and high-current switching — provided that cabinet grounding and cable segregation practices follow Emerson’s installation guidelines. Ungrounded cabinets are the single most common source of unexplained DeltaV communication faults in the field.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways.

Order confirmed before 18:00 CST: The module is pulled from stock, functionally verified, photographed, and packed in ESD-safe anti-static foam. Commercial invoice, packing list, and certificate of conformance are prepared. The DHL or FedEx express label is generated and the shipment is booked on the next available outbound flight from Xiamen Gaoqi International Airport.

Day 1: The package clears Xiamen customs export and is in transit to the destination country’s customs entry point. Full tracking number is shared via email and WhatsApp within 2 hours of pickup confirmation.

Day 2–4 (most destinations): DHL Express Worldwide and FedEx International Priority deliver to major industrial hubs in Southeast Asia, the Middle East, Europe, and North America within 2–4 business days from Xiamen. Remote destinations may require one additional day.

Customs clearance: We prepare accurate HS code documentation and commercial invoices that reflect true transaction value. This minimizes customs hold risk. For destinations with import licensing requirements, we advise on documentation requirements at the quotation stage — not after the shipment is already held at the border.

Freight options: DHL Express, FedEx International Priority, UPS Express Saver, and EMS are all available. For orders above a certain value threshold, we recommend DHL Express with declared value insurance. For non-urgent replenishment orders, sea freight consolidation from Xiamen port is available at significantly lower cost.
