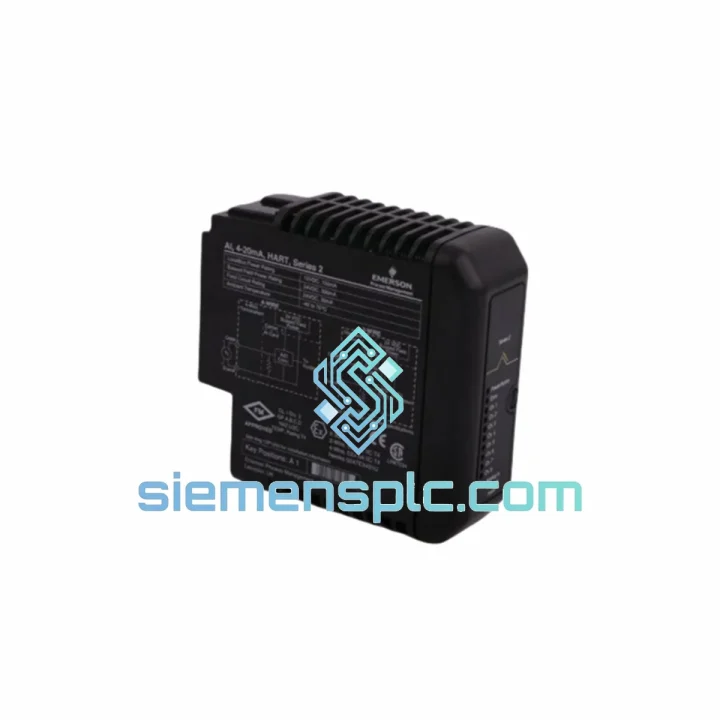

Emerson KJ3203X1-BA2 — 8-Channel HART Analog Input Module for DeltaV Distributed Control Systems

The KJ3203X1-BA2 occupies a well-defined position in the DeltaV S-Series I/O architecture: it serves as the primary analog acquisition front-end for field instrumentation transmitting 4–20 mA HART signals. Each of its eight independent input channels converts a continuous current signal into a 16-bit digital representation, which is then transferred across the DeltaV I/O bus to the resident controller for closed-loop processing. In a typical refinery or chemical plant control loop, this module sits between the field junction box and the DeltaV controller, handling signal conditioning, analog-to-digital conversion, and HART protocol arbitration simultaneously — all within a single 8-slot carrier footprint.

Unlike generic I/O modules that treat HART as a secondary diagnostic channel, the KJ3203X1-BA2 integrates HART communication as a first-class function. Each channel maintains a dedicated HART modem circuit, enabling simultaneous primary variable (PV) acquisition at the standard 4–20 mA scan rate while conducting HART command transactions in the background. This dual-path architecture allows AMS Device Manager to poll field device diagnostics, perform remote calibration, and retrieve device variables without interrupting the primary control loop — a critical requirement in continuous process environments where loop interruption carries direct production cost.

The module mounts directly onto standard DeltaV 8-slot or 4-slot I/O carriers and draws power exclusively from the DeltaV I/O bus, eliminating the need for external 24 VDC field power supplies for the module itself. Field-side loop power for 2-wire transmitters is supplied through the carrier’s integrated power distribution rail, rated at 24 VDC ±10%. This integrated power architecture reduces panel wiring complexity and simplifies carrier-level fusing and protection design.

In process industries where measurement accuracy directly governs product quality and regulatory compliance, the 16-bit ADC resolution of the KJ3203X1-BA2 translates to a theoretical resolution of approximately 0.0015% of full scale — sufficient for custody transfer flow measurement, reactor temperature profiling, and distillation column pressure differential monitoring. The module’s input range of 3.8–20.5 mA accommodates both the live-zero (4 mA) convention and the NAMUR NE43 under-range (3.8 mA) and over-range (20.5 mA) alarm thresholds, enabling the DeltaV controller to distinguish between a valid low-range measurement and a broken wire or failed transmitter without additional signal conditioning hardware.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KJ3203X1-BA2 implements per-channel optical isolation between the field-side current loop and the module’s internal digital circuitry. Each channel’s isolation barrier presents a minimum 500 VDC withstand rating, which decouples ground potential differences between field instruments and the control room bus — a common source of measurement error and equipment damage in large-scale process plants where ground loops can introduce tens of millivolts of offset into a 4–20 mA signal representing a 0–100% process range.

The HART modem on each channel operates at the standard 1200 baud FSK (Frequency Shift Keying) modulation superimposed on the 4–20 mA DC signal. The module’s internal arbitration logic manages the timing relationship between the primary variable sampling cycle and HART token-passing transactions. When the DeltaV system initiates a HART command (e.g., a Device Description read or a trim command via AMS), the module queues the request and executes it during the inter-scan interval, ensuring that the primary PV value presented to the controller strategy is never delayed by HART communication overhead. This non-blocking HART architecture is a deliberate design choice that preserves loop scan determinism — a requirement for PID controllers operating at scan periods below 500 ms.

EMC performance is addressed through a combination of hardware filtering and PCB layout discipline. Each analog input channel incorporates a low-pass RC filter at the field terminal to attenuate high-frequency conducted interference from variable-frequency drives (VFDs), switching power supplies, and radio-frequency sources common in industrial environments. The filter cutoff is set above the HART carrier frequency (1200/2200 Hz) to preserve HART signal integrity while rejecting interference above approximately 10 kHz. The module’s PCB employs a multi-layer stackup with dedicated ground planes separating the analog front-end from the digital processing section, minimizing capacitive coupling between high-speed digital switching and the sensitive analog signal paths.

The module’s self-diagnostics continuously monitor channel integrity. An open-wire condition (current below 3.6 mA) and an over-range condition (current above 20.8 mA) are both detected within one scan cycle and reported as channel-level alarms in the DeltaV operator interface, with configurable bad-PV substitution behavior (last good value, defined substitute, or NaN) to maintain controller stability during field instrument failures.

System Integration Benefits

• Zero-configuration DeltaV bus integration: The module is auto-recognized by the DeltaV I/O subsystem upon carrier insertion. No DIP switches, jumpers, or manual address assignment are required — the carrier slot position defines the I/O tag address within the DeltaV node.
• Deterministic scan cycle preservation: HART communication is handled asynchronously relative to the primary PV scan, ensuring that controller module scan periods (as low as 100 ms for MD Plus) are not extended by HART polling activity.
• AMS Device Manager full integration: All 8 channels support AMS pass-through, enabling remote HART device configuration, calibration, and predictive diagnostics from the DeltaV workstation without physical access to the field junction box.
• NAMUR NE43 alarm compliance: Under-range (3.8 mA) and over-range (20.5 mA) thresholds are natively recognized, providing standardized broken-wire and saturation alarms that map directly to DeltaV alarm management without custom logic.
• Hot-swap field replacement: The module can be replaced on a powered carrier following Emerson’s documented procedure, reducing planned maintenance windows and eliminating the need to de-energize the I/O carrier during module swap — critical for continuous process units with no scheduled downtime.
• Redundant I/O architecture support: When paired with a redundant I/O carrier, the KJ3203X1-BA2 participates in the DeltaV redundant I/O scheme, providing bumpless switchover to the standby module in the event of a primary module failure — with switchover times below 100 ms.
• Integrated channel-level diagnostics: Each channel reports its own health status (good, uncertain, bad) to the DeltaV controller, enabling the control strategy to implement channel-specific bad-input handling logic without relying on external signal conditioners or voting logic modules.
• Scalable node architecture: Multiple KJ3203X1-BA2 modules can be populated across a single DeltaV I/O node (up to the node’s total I/O channel budget), allowing analog input density to be scaled incrementally as process expansion requires, without replacing the controller or the node infrastructure.

Quality Assurance & Global Logistics

Every KJ3203X1-BA2 unit supplied by siemensplc.com is sourced as genuine Emerson factory-manufactured hardware. Units are inspected upon receipt for physical integrity, firmware label verification, and connector condition. Prior to shipment, each module undergoes a functional power-on check to confirm that the module’s self-test sequence completes without fault codes — a baseline verification that screens for latent damage from handling or storage.

Packaging follows IPC/JEDEC J-STD-033 guidelines for moisture-sensitive electronic assemblies: each module is sealed in a static-dissipative (ESD) bag with a humidity indicator card, then packed in a foam-lined corrugated carton rated for international air freight handling. This packaging protocol protects the module’s analog front-end circuitry — particularly the precision resistor networks and ADC reference components — from electrostatic discharge and humidity ingress during transit.

Shipments originate from Xiamen, China, with access to direct air freight routes to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas. Standard in-stock orders are dispatched within 1–3 business days of payment confirmation. Express DHL, FedEx, and UPS services are available for urgent requirements, with typical transit times of 3–7 business days to most destinations. A Certificate of Conformance (COC) and commercial invoice with HS code declaration are provided with every shipment to facilitate customs clearance. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.
