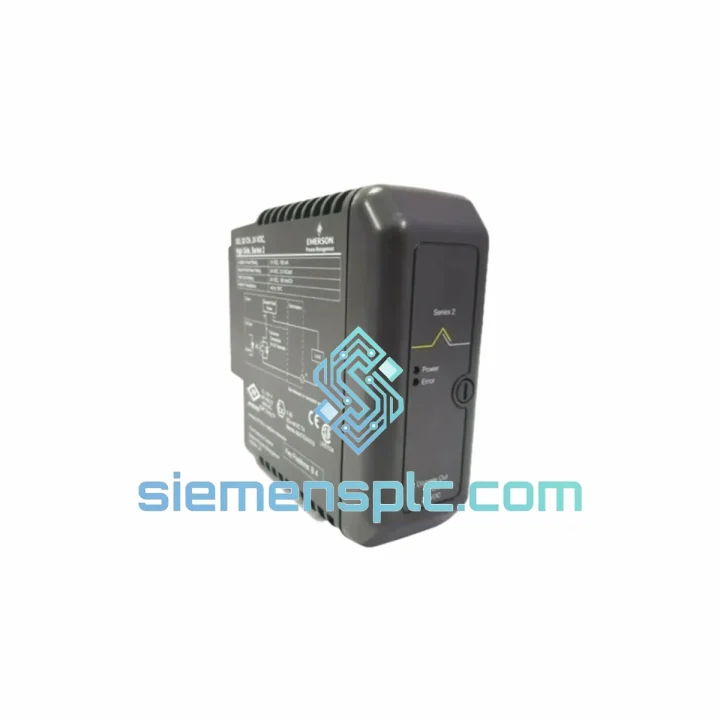

Emerson KJ3204X1-BA1 12P3275X042 Discrete Output Module

Emerson KJ3204X1-BA1 (12P3275X042) – Stop the Clock on Your Downtime, Ship Today

Every minute a DeltaV node sits dark costs you money. A failed discrete output card doesn’t just kill one loop — it can cascade into a full unit shutdown, missed batch targets, and regulatory headaches. The KJ3204X1-BA1 (cross-ref: 12P3275X042) is the exact card you need to restore your DeltaV I/O subsystem to full operation. We stock it in Xiamen, we’ve tested it, and we can have it moving toward your site within hours of order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom recognition before you pull the card: Before condemning the KJ3204X1-BA1, confirm the fault is module-side, not field-side. In DeltaV Operate or AMS, check for “I/O Card Failure” or “Module Not Responding” alerts on the affected node. If individual channel alarms show “Bad Output” or “Open Circuit” on multiple channels simultaneously, the card itself is the likely culprit — a single-channel fault usually points to field wiring or the actuator.

Step-by-step hot-swap procedure:

1. In DeltaV Explorer, navigate to the affected controller node → I/O subsystem → locate the DO card slot. Note the slot address — you’ll need it to verify auto-recognition post-swap.
2. Inform the control room operator. Even though DeltaV supports hot-swap, outputs will go to their configured fail-safe state (typically de-energized) the moment the card is removed. Confirm with operations that affected field devices can tolerate a brief open-output condition.
3. Grip the card handle firmly and pull straight out. Do not rock side-to-side — the I/O bus connector is fragile. Inspect the ejected card’s bus connector pins for bent contacts or burn marks, which indicate a carrier-side fault requiring carrier replacement before installing the new card.
4. Slide the KJ3204X1-BA1 replacement into the same slot until you feel the bus connector seat fully. The card LED will cycle through its startup sequence (typically amber → green). In DeltaV Explorer, the slot should auto-recognize the new card within 30–60 seconds — no manual address configuration or DIP switch setting is required for standard DeltaV I/O cards.
5. Verify all 8 channel LEDs reflect the expected output states. Force-test each channel from DeltaV Operate in manual mode if process conditions allow. Confirm no “Mismatch” or “Unassigned” alarms remain on the node.
6. Return affected loops to automatic control. Document the swap in your site maintenance log with the card serial number and firmware revision label (printed on the card side label).

Firmware compatibility note: The KJ3204X1-BA1 is firmware-agnostic at the hardware level — DeltaV will push the appropriate firmware version to the card automatically upon insertion if your system is running DeltaV v11.3 or later. On older DeltaV versions (v10.x and below), verify the card’s factory firmware revision against your system’s supported I/O card list in the DeltaV release notes before installation.

Common fault codes on this card:

• “DO Card Comm Failure” — Bus connector contamination or carrier slot damage. Clean connector with IPA, reseat card.
• “Output Overload” on a single channel — Field-side short circuit. Disconnect field wiring at marshalling, test channel in isolation.
• “Card Not Recognized” after insertion — Carrier slot may have a failed bus segment. Try an adjacent slot to isolate.
• “Firmware Mismatch” — DeltaV version below v11.3. Manual firmware update via DeltaV Engineering workstation required.

Reliability in Harsh Conditions

The KJ3204X1-BA1 was not designed for a climate-controlled server room — it was built for the realities of process plant environments. Emerson’s DeltaV I/O cards undergo qualification testing that covers the full spectrum of industrial abuse: sustained vibration profiles matching IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), thermal cycling from sub-zero commissioning conditions up to 60°C continuous operation, and humidity exposure at 95% RH non-condensing to simulate coastal and tropical plant environments.

The optical isolation barrier between the field-side outputs and the I/O bus is the card’s most critical protection layer. It prevents ground loops, transient spikes from inductive loads (solenoids, motor starters), and common-mode voltage differentials from reaching the DeltaV controller backplane. In plants where field wiring runs parallel to high-voltage power cables — a common reality in older facilities — this isolation is what keeps your controller alive when a field fault occurs.

The solid-state output drivers on this card have no mechanical wear components, unlike relay-based alternatives. In applications with high switching frequency — such as pulse-width modulated valve control or rapid sequencing in batch processes — this translates directly to longer service intervals and fewer unplanned replacements. The onboard self-diagnostics continuously monitor output driver health and report degradation before it becomes a hard failure, giving maintenance teams advance warning rather than a midnight emergency.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express networks. For urgent plant shutdowns, this geography matters: Xiamen’s port and air freight infrastructure means your order doesn’t sit waiting for a connecting flight.

Standard dispatch timeline: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day. Export documentation — commercial invoice, packing list, and HS code declaration (HS 8537.10 for programmable controllers and I/O modules) — is prepared in parallel with packing to eliminate customs clearance delays.

Transit times (estimated, DHL/FedEx express):

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK): 3–5 business days
• North America (USA, Canada): 4–6 business days
• South America (Brazil, Chile): 5–7 business days

All shipments include real-time tracking from pickup to delivery. For sites with import duty sensitivity, we can provide detailed HS code documentation and country-of-origin certificates to support your customs broker. Dangerous goods declaration is not required for this module — it ships as standard industrial electronics.

For multi-unit orders or repeat procurement programs, contact us to discuss consolidated shipping schedules and bonded warehouse arrangements that can further reduce your per-unit landed cost.
