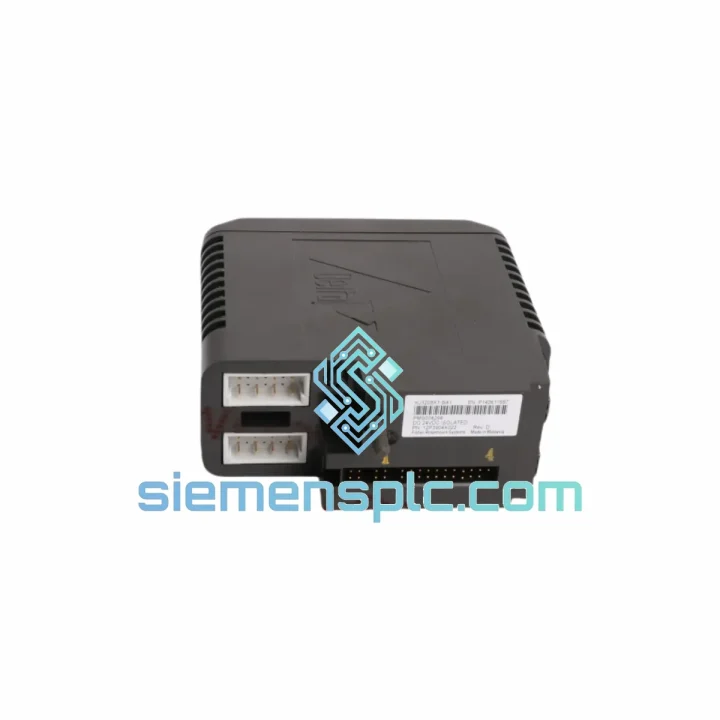

EMERSON KJ3208X1-BA1 12P3904X022 Discrete Output Card

EMERSON KJ3208X1-BA1 12P3904X022 — Stop the Bleed: Get Your DeltaV Line Back Online Before the Next Shift

Every minute a DeltaV node sits dark, your production loss counter keeps climbing. The KJ3208X1-BA1 (P/N: 12P3904X022) is an 8-channel 24 VDC solid-state Discrete Output Card for EMERSON DeltaV DCS — a card that sits at the edge of your control loop and, when it fails, takes actuators, solenoids, and on/off valves with it. We stock this module in Xiamen and ship same-day on confirmed orders. No waiting on OEM lead times. No broker markups. Direct to your site.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The KJ3208X1-BA1 fails in predictable patterns. Here is what ten years of field calls have taught us about this card:

Fault Code 31 / DO Channel Fault: The most common call-out. One or more output channels stop switching. Root cause is usually a shorted field device — a solenoid coil that has gone low-resistance and pulled excess current through the solid-state output driver. Before you swap the card, disconnect the field wiring terminal block and check each channel load resistance. Anything below 50 ohms on a 24 VDC channel is suspect. Replacing the card without fixing the field fault will kill the new module within hours.

Card Not Recognized After Seating: DeltaV uses automatic I/O addressing via the carrier backplane — there are no DIP switches on this card. If the replacement module shows as Unrecognized in DeltaV Explorer, the issue is almost always one of three things: (1) the carrier slot is damaged or has a bent backplane pin, (2) the DeltaV controller firmware is below the minimum revision that supports this card revision (12P3904X022 requires DeltaV v11.3.1 or later), or (3) the module was seated while the carrier was still powered and the hot-swap sequencer did not complete. Power-cycle the carrier, reseat firmly, and wait 45 seconds for enumeration.

Firmware Mismatch Warning: DeltaV will flag a firmware mismatch if the replacement card carries a different internal firmware build than the one originally commissioned. This is a warning, not a hard fault — the system will continue to operate, but schedule a firmware download via DeltaV Diagnostics at the next maintenance window. Do not force a firmware update during live production.

Replacement Procedure (Condensed):

• Confirm the channel is in a safe state — outputs de-energized or bypassed at the field device level.
• In DeltaV Explorer, right-click the card and select Decommission to prevent nuisance alarms during the swap.
• Remove the terminal block first (pull straight out), then unlatch and extract the card.
• Insert the replacement KJ3208X1-BA1 until the latch clicks. Reattach the terminal block.
• Right-click in DeltaV Explorer and select Commission. The card will auto-address and download its configuration within 60 to 90 seconds.
• Verify all 8 channel LEDs cycle through their self-test sequence (green flash x3) before returning to normal state.
• Perform a forced output test on each channel from the DeltaV Operate interface before releasing the bypass.

Spare Parts Tip: If this card failed once, the carrier slot has seen stress. Order a spare KJ3208X1-BA1 now while you have the part number in hand. Lead times from OEM channels can stretch to 8 to 14 weeks. We can hold a unit on reservation for 30 days with a deposit.

Reliability in Harsh Conditions

DeltaV I/O cards are built for the environments where process control actually lives — not climate-controlled server rooms. The KJ3208X1-BA1 is rated for continuous operation across a wide industrial temperature band (0 to 60 degrees C operating, -40 to 85 degrees C storage) and is designed to withstand the vibration profiles common in compressor houses, pump skids, and rotating equipment enclosures.

The solid-state output drivers eliminate the mechanical wear points that plague relay-based DO cards. There are no contacts to arc, no coils to burn out from inductive kickback. The 24 VDC outputs include internal transient suppression, which matters when you are switching inductive loads like solenoid valves repeatedly across a shift. In high-humidity environments — coastal refineries, offshore platforms, tropical chemical plants — the conformal coating on the PCB provides a barrier against condensation-induced leakage currents that would otherwise cause intermittent channel faults.

EMI immunity is another field reality. Control rooms near large VFDs, switchgear, or welding operations generate conducted and radiated interference that can corrupt I/O bus communications. The KJ3208X1-BA1 bus interface circuitry is designed to meet IEC 61000-4 immunity levels, which means it keeps communicating when lesser cards drop off the bus. We have seen this card outlast the controllers it connects to in properly maintained DeltaV systems.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport (XMN) has direct cargo connections to DHL and FedEx hubs in Hong Kong, Shanghai, and Guangzhou, which means your module enters the express network within hours of leaving our facility — not days.

Standard dispatch timeline:

• Order confirmed before 14:00 CST: Same-day dispatch, DHL/FedEx tracking number issued by 18:00 CST.
• Southeast Asia (SG, MY, TH, ID): 2 to 3 business days door-to-door.
• Middle East (AE, SA, KW, QA): 3 to 5 business days.
• Europe (DE, NL, GB, FR): 4 to 6 business days.
• North America (US, CA): 5 to 7 business days.
• Australia / New Zealand: 4 to 6 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers in countries with import duty exemptions on industrial automation components, we can provide HS code documentation (HS 8537.10) to support customs clearance. ESD-safe anti-static packaging is standard — no exceptions. Pre-shipment photos are sent to your email before the package leaves the warehouse.

For project orders requiring multiple modules or a full BOM, contact us for consolidated shipping options that reduce per-unit freight cost without sacrificing speed.
