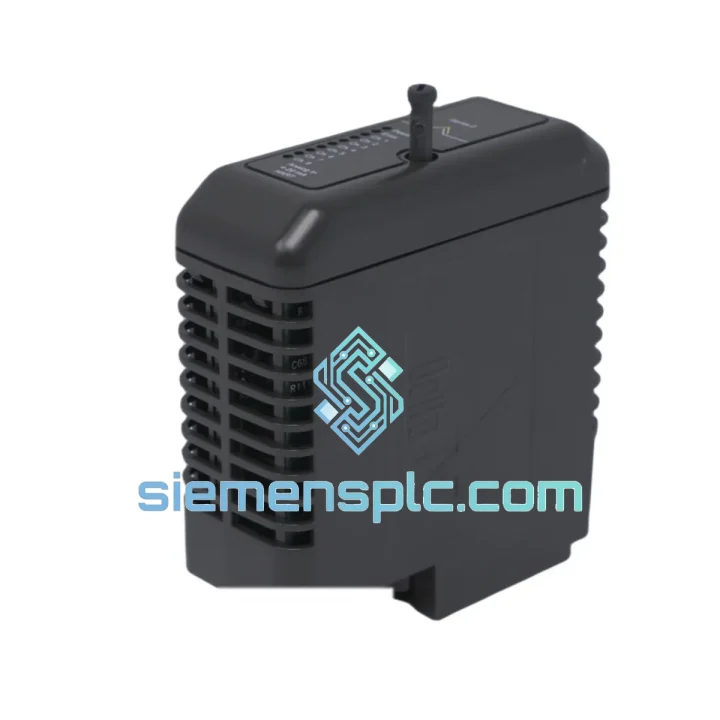

Emerson KJ3222X1-BA3 Analog Input Module – DeltaV S-Series

Emerson KJ3222X1-BA3 — 8-Channel 4–20 mA HART Analog Input Card for DeltaV S-Series DCS

The KJ3222X1-BA3 occupies a single slot on any DeltaV S-Series I/O carrier and presents eight independently conditioned analog input channels to the DeltaV controller backplane. Each channel accepts a 4–20 mA process current loop and simultaneously sustains a HART digital overlay at 1,200 baud, allowing the host system to poll secondary variables, device diagnostics, and configuration parameters without interrupting the primary process variable stream. In a distributed control architecture where scan determinism and field-device transparency are equally weighted requirements, this card resolves both constraints within a single hardware footprint.

From a signal-chain perspective, the incoming 4–20 mA current is converted to a voltage across a precision burden resistor, then digitized by a 16-bit successive-approximation ADC. The resulting 65,536-count resolution maps to a span accuracy of better than ±0.1% of full scale under stable thermal conditions, which satisfies the measurement uncertainty budgets of most ISA-5.1-compliant loop designs. The HART modem on each channel operates in parallel with the ADC path; FSK demodulation is handled in dedicated silicon so that HART polling latency does not introduce jitter into the analog scan cycle.

The card is hot-swap capable within the DeltaV S-Series carrier. Removal and reinsertion under power triggers an automatic module recognition sequence in DeltaV Explorer: the controller re-downloads the module database, re-establishes channel assignments, and resumes scanning within the configured module scan period — typically under 500 ms for an 8-channel AI card at standard scan rates. This behavior is architecturally significant for continuous-process plants where a maintenance window cannot be scheduled around a single I/O card replacement.

The BA3 hardware revision introduced measurable improvements over BA1 and BA2 in two areas: conducted emissions performance across the 150 kHz–30 MHz band (now compliant with EN 55011 Class A limits without external filtering) and extended operating temperature ceiling, which allows deployment in non-air-conditioned marshalling enclosures in tropical climates. PCB layout changes in BA3 also reduced inter-channel crosstalk at HART frequencies, improving multi-device polling reliability in dense wiring configurations.

In refinery and chemical plant applications, the KJ3222X1-BA3 is routinely paired with Rosemount 3051 pressure transmitters and Rosemount 644 temperature transmitters. The HART pass-through path feeds Emerson AMS Device Manager, which continuously monitors loop resistance, transmitter supply voltage, and device-reported diagnostic flags. When AMS detects a degraded loop — for example, a partial short reducing loop resistance below 250 Ω — it raises a maintenance alert in the DeltaV alarm system before the process variable reading is affected. This predictive loop-health model reduces unplanned instrument failures and supports a condition-based maintenance strategy rather than time-based calibration cycles.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The optical isolation barrier on each channel serves a dual function. First, it breaks the ground reference between field wiring and the DeltaV backplane bus, preventing ground-loop currents — which can reach tens of milliamps in large industrial installations with distributed earthing — from corrupting the ADC input. Second, it provides a defined withstand voltage between field and logic sides, typically rated at 500 V DC continuous, which satisfies the creepage and clearance requirements of IEC 61010-1 for Category II measurement circuits.

The HART FSK modem on each channel uses a bandpass filter centered on the 1,200 Hz mark and 2,200 Hz space frequencies to extract the digital signal from the 4–20 mA carrier. The filter’s roll-off characteristics are designed to reject 50/60 Hz power-frequency interference and its harmonics, which are the dominant noise sources in marshalling cabinets routed alongside power cables. The modem’s output feeds a dedicated microcontroller that manages the HART master protocol stack independently of the main module processor, ensuring that a slow HART device response does not stall the analog scan cycle.

The BA3 PCB revision implemented a ground-plane segmentation strategy that separates the analog signal ground, the HART modem ground, and the digital logic ground into three distinct copper pours, joined only at a single star point adjacent to the isolation barrier. This topology minimizes the return-current coupling between the high-frequency digital switching circuits and the low-level analog signal paths, which is the primary mechanism for in-band noise injection in mixed-signal I/O card designs. The result is a measurable reduction in idle-channel noise floor compared to BA1 and BA2 revisions.

The module’s self-diagnostics continuously monitor the burden resistor voltage, the ADC reference voltage, and the isolation barrier integrity. Any deviation outside defined thresholds sets a module-level diagnostic flag that propagates to the DeltaV controller as a Bad Input quality stamp on the affected channel. This quality propagation is compliant with the FOUNDATION Fieldbus quality sub-status model, which DeltaV uses internally even for HART and 4–20 mA channels, ensuring that downstream control modules receive unambiguous signal quality information rather than a frozen last-good value.

System Integration Benefits

• Deterministic Scan Cycle: The module executes its 8-channel ADC scan within a fixed time window synchronized to the DeltaV controller’s module scan period, eliminating scan jitter that would otherwise introduce noise into derivative-action PID controllers.
• HART Secondary Variable Access: Each channel can simultaneously report up to four HART process variables (PV, SV, TV, QV) to DeltaV, enabling multi-variable transmitters such as Coriolis flowmeters to deliver mass flow, density, and temperature over a single 4–20 mA pair.
• AMS Device Manager Integration: The HART pass-through path feeds Emerson AMS for continuous loop-health monitoring, device calibration scheduling, and predictive maintenance alerts — all without additional hardware.
• Hot-Swap Without Process Interruption: Card replacement under power completes module re-recognition in under 500 ms, allowing maintenance during live production without a process shutdown or controller restart.
• NAMUR NE 43 Fault Detection: The card detects open-loop (below 3.6 mA) and over-range (above 21.0 mA) conditions and reports them as distinct Bad quality sub-statuses, enabling the DCS to execute pre-configured fault-handling strategies rather than defaulting to a generic alarm.
• Scalable I/O Architecture: Eight channels per slot on a standard S-Series carrier allows engineers to achieve high I/O density without custom marshalling hardware, reducing panel build cost and wiring labor on large projects.
• Unified Engineering Environment: Module parameters, channel tags, and HART device databases are all managed within DeltaV Explorer, eliminating the need for separate configuration tools and reducing the risk of tag-mapping errors during commissioning.
• Firmware Compatibility Across DeltaV Versions: The KJ3222X1-BA3 is recognized by DeltaV v11 through v15+, protecting the capital investment in existing I/O infrastructure when the DCS software is upgraded.
• Redundancy-Ready Architecture: When paired with a redundant DeltaV controller, the card’s backplane interface supports bumpless transfer between primary and secondary controllers, maintaining uninterrupted analog scanning during controller failover events.
• Diagnostic Transparency to Operator: Bad Input quality stamps propagate through DeltaV’s module chain to the operator display, giving console operators immediate visibility into field-device faults without requiring a separate instrument status panel.

Quality Assurance & Global Logistics

Every KJ3222X1-BA3 unit offered by siemensplc.com is sourced as genuine Emerson OEM hardware. Prior to dispatch, each card undergoes a structured inspection protocol: physical label verification against Emerson’s part numbering convention, PCB revision confirmation (BA3 markings on silkscreen and component date codes), power-on functional test with 4–20 mA loop simulation across all 8 channels, and HART communication verification using a calibrated HART communicator. Units that do not pass all test steps are quarantined and not offered for sale.

Packaging follows ESD-safe handling procedures throughout: cards are placed in anti-static bags, seated in conductive foam, and enclosed in double-wall corrugated cartons with corner protection. For international shipments, cartons are labeled with IATA-compliant ESD-sensitive markings. Shipments originate from Xiamen, China, with access to major freight forwarders serving DHL Express, FedEx International Priority, and sea-freight consolidation services for bulk orders. Standard air-express transit times are 3–5 business days to Europe and North America, 2–3 days to Southeast Asia. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to the destination country’s import requirements. A 12-month warranty covers manufacturing defects; DOA units are replaced or credited within 5 business days of confirmed fault report.
