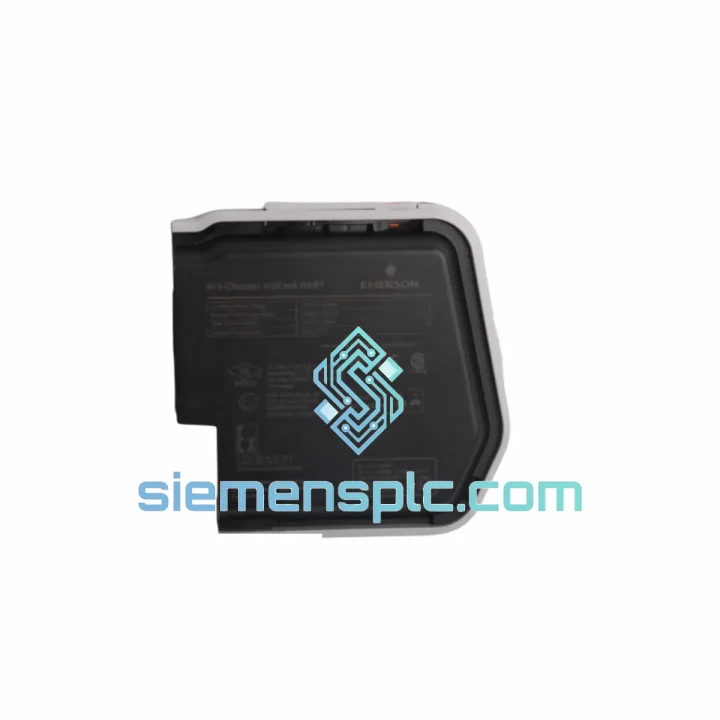

Emerson KJ3222X1-BK1 12P4705X062 Analog Input Module – DeltaV S-Series

Emerson KJ3222X1-BK1 12P4705X062 — 8-Channel HART Analog Input Module for DeltaV S-Series DCS

The Emerson KJ3222X1-BK1 (cross-reference: 12P4705X062) is an 8-channel, 16-bit analog input module native to the DeltaV S-Series distributed control system platform. Its primary function within a control loop is to acquire 4–20 mA HART signals from field transmitters — pressure, flow, temperature, and level instruments — and deliver digitized process values to the DeltaV controller over the S-Series I/O bus with deterministic scan-cycle latency. Each channel operates as an independent measurement node: the module does not share ADC resources across channels, which eliminates inter-channel crosstalk and preserves signal fidelity in high-density I/O configurations.

In a typical refinery or chemical plant control loop, the KJ3222X1-BK1 sits between the field junction box and the DeltaV S-Series carrier. The carrier supplies 24 VDC bus power; the module draws regulated power from this rail and distributes loop excitation to each transmitter. The 250 Ω burden resistor per channel converts the 4–20 mA current signal into a 1–5 VDC voltage, which is then digitized by the on-board 16-bit successive-approximation ADC. At 16-bit resolution, the module resolves process variable changes as small as 0.0015% of full scale — sufficient for tight PID loops in distillation column temperature control or reactor pressure regulation where span-to-noise ratios are critical.

HART communication is handled in parallel with the analog measurement path. The module’s HART modem superimposes the FSK signal (1200 Hz / 2200 Hz) on the 4–20 mA loop without interrupting the primary process variable transmission. This architecture allows the DeltaV Asset Management Solution (AMS) to poll secondary variables, device diagnostics, and configuration parameters from HART 5/6-compliant field devices during normal process operation — without requiring a separate HART multiplexer or loop break.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KJ3222X1-BK1 implements a distributed ADC architecture: each of the 8 channels has a dedicated signal conditioning stage consisting of an input protection network (TVS diode clamp rated at ±40 V transient), a precision instrumentation amplifier, and a sample-and-hold circuit feeding an individual 16-bit SAR ADC. This per-channel ADC topology eliminates the multiplexer settling-time error that affects shared-ADC designs — a critical advantage in applications where adjacent channels carry signals with large amplitude differentials, such as a 4 mA low-flow signal adjacent to a 20 mA high-pressure signal.

Galvanic Isolation Architecture: Channel isolation is implemented via optocoupler-based signal barriers rated at 500 V AC test voltage between each channel and the module backplane. This design breaks ground loops that arise in multi-transmitter installations where field devices reference different earth potentials — a common failure mode in large-scale petrochemical plants with distributed grounding systems. The isolation barrier also attenuates common-mode noise injected by variable-frequency drives (VFDs) operating in the same cable tray, maintaining signal integrity without requiring shielded twisted-pair cable on every loop.

EMC Design: The module PCB incorporates a multi-layer ground plane with dedicated analog and digital ground domains separated by a split-plane boundary. Ferrite bead filters on the 24 VDC power input suppress conducted emissions from the carrier backplane. The analog front-end is enclosed within a Faraday shield formed by the module housing, providing additional attenuation of radiated RF interference — relevant in substations or motor control centers where high-frequency switching transients are present.

HART Modem Integration: The on-board HART modem operates at Bell 202 FSK modulation (1200 bps). The modem’s bandpass filter is tuned to pass the 1200 Hz / 2200 Hz HART carrier while rejecting the DC component of the 4–20 mA signal. The DeltaV controller polls HART secondary variables on a configurable schedule (default: 500 ms per device) without impacting the primary analog scan rate. This dual-path architecture means a single KJ3222X1-BK1 can simultaneously deliver 8 process variable measurements to the control strategy and 8 streams of device health data to AMS — with no additional hardware cost.

Hot-Swap and Online Replacement: The module supports online insertion and removal within a powered DeltaV S-Series carrier. The carrier’s backplane logic detects module removal, sets the associated I/O points to a configurable fail-safe state (hold last value or go to defined fallback), and re-initializes the module upon reinsertion — all without controller restart. This behavior is governed by the DeltaV I/O subsystem firmware and requires no manual operator intervention beyond the physical swap.

System Integration Benefits

• Zero-Engineering Drop-In Replacement: The KJ3222X1-BK1 is fully backward-compatible with existing DeltaV S-Series carrier assemblies. No I/O database reconfiguration, no firmware update, and no loop rewiring are required when replacing a failed module of the same part number.
• Deterministic Scan-Cycle Performance: The S-Series I/O bus delivers process variable updates to the DeltaV controller on a fixed, configurable scan period (minimum 100 ms). The module’s per-channel ADC architecture ensures all 8 channels complete conversion within a single scan window, eliminating phase skew between simultaneously sampled process variables — important for ratio control and cascade loops.
• Integrated HART Asset Management: Native HART 5/6 support feeds device diagnostics directly into DeltaV AMS without a separate HART multiplexer. Maintenance teams can read transmitter self-diagnostics, trim calibration, and configuration parameters from the control room — reducing field inspection frequency and associated safety exposure.
• Per-Channel Open-Wire Detection: The module continuously monitors loop current. If a channel drops below 3.6 mA (below the valid 4 mA live-zero), the module flags an open-wire fault in the DeltaV alarm system within one scan cycle. This sub-second fault detection prevents silent measurement failures from propagating undetected into the control strategy.
• Over-Range and Under-Range Alarming: Signals exceeding 20.5 mA or falling below 3.8 mA trigger configurable DeltaV alarms with distinct priority levels. Engineers can differentiate between a transmitter at physical process limit (20 mA) and a wiring fault (0 mA) without additional field investigation.
• Reduced Panel Wiring Density: 8 channels per module at standard DeltaV S-Series card pitch reduces the number of I/O carriers required per cabinet. In a 200-point analog input system, the KJ3222X1-BK1 configuration requires 25 modules versus 50 modules for a 4-channel alternative — directly reducing cabinet footprint, wiring labor, and termination error probability.
• Firmware-Managed Fail-Safe Behavior: Each channel’s fail-safe output state (hold last value, go to 0%, go to 100%, or go to a user-defined value) is configured in the DeltaV I/O database and stored in the controller. On module removal or communication loss, the controller applies the configured fail-safe without operator action — a requirement for SIL 1 partial-stroke applications and process safety management (PSM) compliance.
• Scalable Redundancy Architecture: The KJ3222X1-BK1 can be deployed in non-redundant or redundant I/O configurations. In redundant mode, two modules occupy adjacent carrier slots and the DeltaV controller arbitrates between them on a per-scan basis. Switchover on module failure is bumpless — the controller continues reading from the surviving module with no process variable discontinuity.

Quality Assurance & Global Logistics

Every KJ3222X1-BK1 unit supplied by siemensplc.com is sourced through verified Emerson-authorized distribution channels or traceable OEM surplus inventory. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: power-on self-test (POST) execution, per-channel signal injection at 4 mA, 12 mA, and 20 mA with ADC output verification against factory tolerance, and HART communication handshake confirmation. Units that do not meet the ±0.1% accuracy specification at all three test points are quarantined and not shipped.

Authenticity verification includes visual inspection of PCB markings, firmware revision confirmation against Emerson’s published revision history, and serial number cross-reference where OEM records are available. A Certificate of Conformance (CoC) documenting the test date, technician ID, measured accuracy per channel, and firmware revision is available upon request for all units.

Packaging follows IPC/JEDEC J-STD-033 guidelines for moisture-sensitive electronic assemblies: each module is sealed in a static-dissipative anti-static bag with a humidity indicator card, placed in a foam-lined inner carton, and enclosed in a double-wall corrugated outer carton rated for international air freight handling. Moisture barrier bags are heat-sealed and labeled with the MBB open date to allow receiving inspection at the destination facility.

Logistics operations are based in Xiamen, China — a major international port city with direct air freight connections to DHL Express, FedEx International Priority, and UPS Worldwide Express hubs. In-stock units ship within 1–2 business days of order confirmation. Standard transit times: Southeast Asia 2–3 days, Europe 3–5 days, North America 4–6 days, Middle East 3–5 days. All shipments include full export documentation: commercial invoice, packing list, certificate of origin, and airway bill. Customs HS code classification and export licensing support are provided as standard for controlled industrial electronics.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target 5-business-day replacement dispatch. Technical support — including DeltaV compatibility verification, firmware revision guidance, and installation troubleshooting — is available via email and WhatsApp during business hours (UTC+8, Monday–Saturday).
