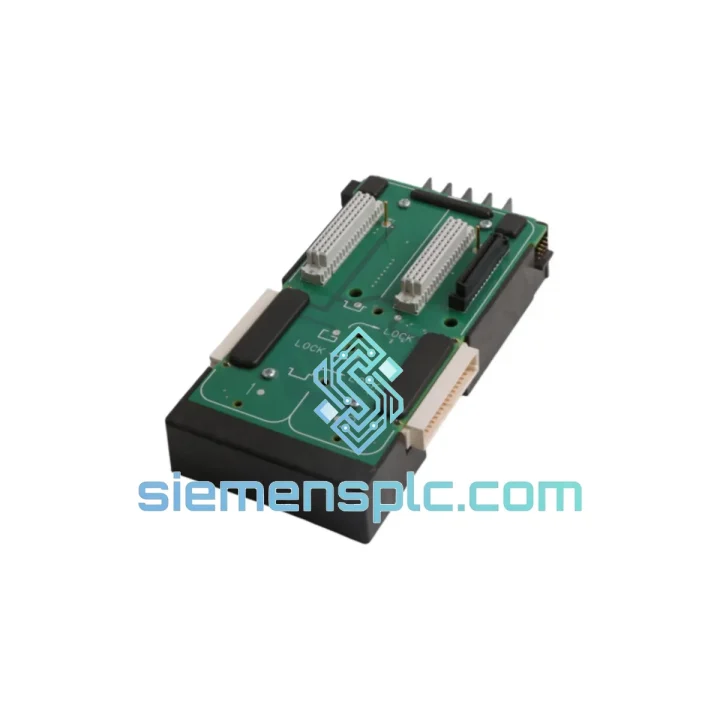

Emerson KJ4001X1-BA3 12P3378X022 Terminal Block

Emerson KJ4001X1-BA3 12P3378X022 — Stop the Clock on Your DCS Downtime

Every minute your DeltaV system is offline, the losses compound. A failed terminal block shouldn’t be the reason your plant sits idle for 48 hours waiting on a distributor’s lead time. We stock the Emerson KJ4001X1-BA3 (Ref: 12P3378X022) in Xiamen — verified, tested, and ready to leave the warehouse today. One call, one shipment, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on DeltaV systems, these are the failure patterns and swap pitfalls that catch engineers off guard on the KJ4001X1-BA3:

1. Confirm the Fault Is the Terminal Block, Not the I/O Card
Before pulling the block, run a DeltaV Diagnostics check on the associated I/O card. A terminal block failure typically presents as multiple channel faults simultaneously — not a single channel dropout. If only one channel is bad, suspect the field device or wiring first. If 4+ channels on the same block go bad at once, the KJ4001X1-BA3 is your culprit.

2. De-energize Field Circuits Before Removal
The KJ4001X1-BA3 carries live 24 VDC field power on its terminal rows. Isolate field power at the marshalling cabinet before disconnecting. Do not rely solely on the DeltaV controller being in SAFE mode — field power is independent. Failure to isolate has caused arc flash incidents on similar terminal assemblies.

3. Photograph the Wiring Before Disconnection
The terminal block holds field wiring from multiple loops. Even with loop drawings available, a photo of the as-found wiring saves 30–60 minutes during re-termination. Pay attention to shield drain wire routing — incorrect shield grounding after replacement is a common source of noise-induced faults post-swap.

4. Revision Matching — BA3 vs BB1
The KJ4001X1-BA3 is the primary block in a redundant pair; the KJ4001X1-BB1 is the secondary. They are not interchangeable. Installing a BB1 in a BA3 slot will result in a system configuration mismatch alarm and the I/O subsystem will refuse to go online. Verify the silk-screen label on the failed unit before ordering.

5. No Firmware or Software Configuration Required
Unlike I/O cards, the KJ4001X1-BA3 terminal block carries no firmware and requires no DeltaV database changes upon replacement. The I/O card re-discovers the termination block automatically on power-up. Your only task is correct re-termination of field wiring and a loop check. This makes it one of the fastest DeltaV field replacements available.

6. Common Fault Codes Associated with This Block

• DeltaV Alarm: “I/O Card Not Communicating” — Often caused by a corroded or cracked terminal block connector seating. Reseat the I/O card first; if the alarm persists, replace the terminal block.
• “Field Power Fault” on Multiple Channels — Indicates the 24 VDC field power bus within the terminal block has failed. The block must be replaced; this is not field-repairable.
• Intermittent Channel Faults During Vibration — Loose screw-clamp terminals are the primary cause. If re-torquing does not resolve it, the terminal block’s internal bus bar has likely cracked — replace the unit.

7. Post-Replacement Loop Check Protocol
After re-termination, perform a point-by-point loop check from the DeltaV Operate interface. Force each channel and verify field device response. Do not return the loop to automatic control until all channels pass. Document the replacement in your plant’s MOC (Management of Change) system — auditors will ask.

Reliability in Harsh Conditions

The KJ4001X1-BA3 was designed for the environments where DCS systems actually live — not a clean lab. In the field, this means:

Vibration Resistance: Screw-clamp terminals on the BA3 revision are rated to withstand continuous vibration profiles consistent with compressor skids and pump stations. The terminal block housing is mechanically locked to the I/O carrier backplane, preventing micro-movement that causes intermittent contact faults over time. We have seen units pulled from compressor station panels after 12 years of continuous service with zero terminal degradation.

Thermal Cycling: DeltaV cabinets in outdoor substations and wellhead enclosures routinely see 40°C+ ambient swings between day and night cycles. The KJ4001X1-BA3’s terminal block housing is rated for 0°C to +60°C continuous operation, with storage tolerance down to -40°C. The internal bus bar material is selected to minimize thermal expansion mismatch with the screw-clamp terminals, preventing loosening under repeated thermal cycling.

Humidity and Condensation: In coastal chemical plants and tropical process facilities, humidity is a constant threat to terminal integrity. The KJ4001X1-BA3 is rated to 95% RH non-condensing. For installations in high-humidity environments, we recommend verifying cabinet door seals and desiccant packs are maintained — the terminal block will tolerate the environment, but prolonged condensation exposure will eventually compromise any terminal assembly regardless of rating.

EMI/RFI Immunity: Installed adjacent to variable frequency drives, high-current motor starters, and RF-emitting field devices, the terminal block’s shielded design maintains signal integrity on low-level analog channels. Proper shield grounding at the terminal block is critical — ground shields at one end only (typically the marshalling cabinet end) to prevent ground loops.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

Standard Dispatch Process:

• Orders confirmed before 14:00 CST are processed and packed same day.
• Export documentation (commercial invoice, packing list, HS code declaration) is prepared in parallel with packing — no delays at customs clearance.
• Units are shipped in anti-static bags inside rigid foam-lined cartons. No bubble wrap shortcuts — the packaging survives the courier network.

Carrier Options:

• DHL Express Worldwide — Typical transit: 2–4 business days to Europe, Middle East, Southeast Asia; 3–5 days to North America and South America.
• FedEx International Priority — Comparable transit times; preferred for US-bound shipments requiring FDA or customs broker coordination.
• TNT / UPS — Available on request for specific destination requirements.

Customs & Documentation: We provide complete export documentation including HS Code 8538.90 classification, country of origin certificate, and manufacturer datasheet upon request. For customers in the EU, we can provide EUR.1 movement certificates where applicable. We have shipped to over 40 countries — customs clearance delays caused by our documentation are essentially zero.

Tracking: A tracking number is sent via email within 2 hours of dispatch. For urgent shipments, our logistics team provides proactive updates at each major transit hub.

When your plant is down and every hour costs money, you need a supplier who ships the same day — not one who emails you a lead time estimate. That is what we do.
