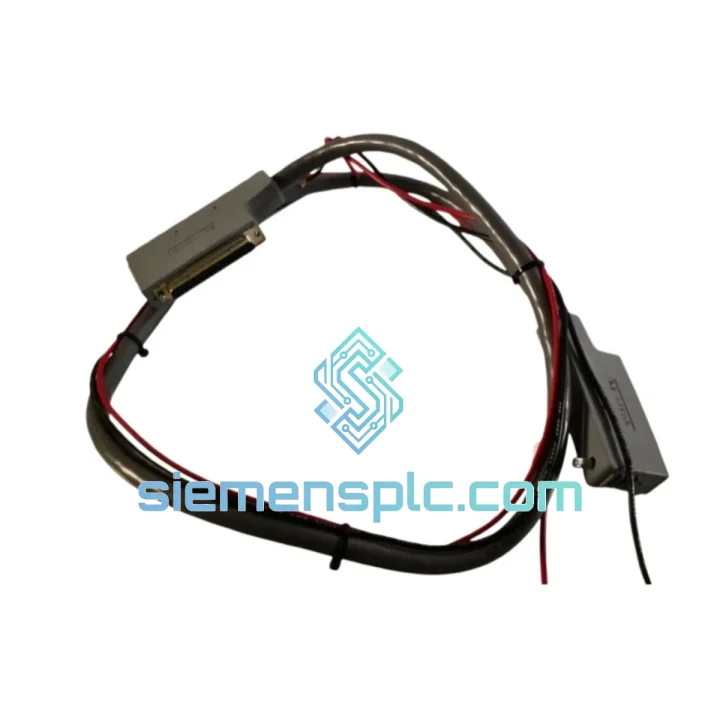

Emerson KJ4001X1-HA1-12P0949X042 LocalBus Cable Extender – DeltaV Series

Emerson KJ4001X1-HA1-12P0949X042 DeltaV LocalBus Cable Extender — Extending I/O Bus Reach Without Compromising Deterministic Control

The KJ4001X1-HA1-12P0949X042 is a factory-original Emerson DeltaV LocalBus Cable Extender engineered to bridge the physical gap between a DeltaV controller node and its associated I/O subsystem carriers when standard backplane-direct mounting is not feasible. In distributed process control architectures — particularly in large-scale petrochemical, power generation, and pharmaceutical facilities — the physical separation between marshalling cabinets and controller enclosures frequently exceeds the reach of direct-mount I/O baseplates. This component resolves that constraint by maintaining the electrical and logical integrity of the DeltaV LocalBus across extended cable runs, preserving the deterministic scan cycle that the DeltaV platform depends on for closed-loop process control.

Unlike generic cable assemblies, the KJ4001X1-HA1-12P0949X042 uses Emerson’s proprietary LocalBus interface protocol, which carries both power distribution signals and high-speed I/O data on a single shielded cable assembly. The connector geometry and impedance characteristics are matched to the DeltaV backplane specification, ensuring that signal reflection, propagation delay, and ground loop interference remain within the tolerances defined in Emerson’s DeltaV Hardware Reference Manual. This is not a passive cable — it is a precision-matched interconnect component with defined electrical parameters that directly affect the reliability of the control loop.

siemensplc.com maintains verified stock of this part number, sourced through traceable supply channels, and ships globally from Xiamen, China. Each unit is inspected against OEM label and connector specifications before dispatch.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DeltaV LocalBus is a proprietary, time-division multiplexed serial bus that carries I/O scan data between the controller module and up to eight I/O subsystem carriers per node. The KJ4001X1-HA1-12P0949X042 extender preserves the bus topology by replicating the mechanical and electrical interface of the direct-mount backplane connection in a cable-routed form factor.

Impedance Matching and Signal Integrity: The cable assembly is terminated with matched impedance at both ends, suppressing reflections that would otherwise corrupt the differential signal pairs used by the LocalBus protocol. At the data rates employed by DeltaV’s I/O scan engine, even minor impedance discontinuities can introduce bit errors that manifest as spurious I/O faults or missed scan cycles. The KJ4001X1-HA1-12P0949X042 is designed to maintain signal integrity across its rated cable length without requiring external termination resistors.

EMC Design: The 360° foil-plus-braid shield construction provides attenuation against both radiated and conducted electromagnetic interference — a critical requirement in industrial environments where variable-frequency drives, high-current motor starters, and arc welding equipment generate broadband RF noise. The shield is bonded to the connector shells at both ends, creating a continuous Faraday enclosure around the signal conductors. This design approach aligns with IEC 61000-4-3 radiated immunity requirements applicable to process control equipment.

Power Rail Integrity: The LocalBus cable carries 24 VDC power from the controller backplane to the I/O subsystem. The KJ4001X1-HA1-12P0949X042 uses appropriately gauged conductors for the power rails to limit resistive voltage drop across the cable length, ensuring that I/O modules at the far end of the bus receive voltage within the operating range specified by Emerson. Voltage drop outside this range can cause I/O module brownout or intermittent communication faults that are difficult to diagnose without measuring bus voltage directly at the carrier.

Connector Retention Mechanism: The proprietary DeltaV LocalBus connector incorporates a positive-locking retention mechanism that prevents accidental disconnection due to vibration — a common failure mode in cable assemblies used in rotating machinery environments. The locking geometry is specific to the DeltaV platform and cannot be substituted with generic industrial connectors without compromising the mechanical retention specification.

System Integration Benefits

• Cabinet Layout Flexibility: Enables physical separation of the DeltaV controller enclosure from I/O marshalling cabinets, allowing engineers to optimize cabinet placement for cable tray routing, maintenance access, and thermal management without being constrained by direct-mount I/O proximity requirements.
• Deterministic Scan Cycle Preservation: The extender introduces no additional latency beyond the propagation delay of the cable length, which is negligible relative to the DeltaV controller’s I/O scan period. The control loop’s deterministic timing is maintained without software configuration changes.
• Plug-and-Play Compatibility: No firmware updates, address configuration, or DeltaV Explorer modifications are required. The extender is transparent to the DeltaV system software — the controller recognizes the connected I/O subsystem identically to a direct-mount configuration.
• Diagnostic Transparency: Because the extender does not insert any active electronics into the bus path, DeltaV’s built-in I/O diagnostics — including module health status, communication fault detection, and channel-level diagnostics — function without modification. Fault isolation remains at the module level, not the cable level.
• Reduced Downtime During Maintenance: The cable extender allows I/O subsystem carriers to be accessed and serviced without disturbing the controller module, reducing the scope of maintenance interventions and minimizing the risk of accidental controller disconnection during I/O work.
• Scalable I/O Architecture: Supports DeltaV system expansions where additional I/O nodes must be located remotely from the primary controller enclosure, without requiring the installation of additional controller hardware or remote I/O network infrastructure.
• Compliance with DeltaV Hardware Reference: Using the OEM-specified extender ensures that the installation remains within the hardware configuration boundaries documented in Emerson’s DeltaV Hardware Reference Manual, preserving the validity of the system’s functional safety assessment where applicable.
• Spare Parts Standardization: Stocking the KJ4001X1-HA1-12P0949X042 as a critical spare eliminates the risk of extended downtime caused by cable assembly failure — a low-probability but high-consequence event in continuous process operations where unplanned shutdowns carry significant production cost.

Quality Assurance & Global Logistics

Every KJ4001X1-HA1-12P0949X042 unit supplied by siemensplc.com is an original Emerson manufactured component. Units are sourced through traceable supply channels and inspected upon receipt: OEM label verification (part number, date code, revision level), connector shell and pin condition check, cable jacket integrity inspection, and packaging seal verification. No remanufactured, relabeled, or third-party substitute components are stocked or supplied.

Shipments originate from Xiamen, China, with access to major international express carriers including DHL Express, FedEx International Priority, UPS Worldwide Express, and SF Express International. In-stock orders are typically dispatched within 1–3 business days of order confirmation. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. HS code classification and EAR99/ECCN documentation are available upon request for customers with import compliance requirements.

A 12-month warranty against manufacturing defects applies to all new units from the date of shipment. Warranty claims are processed with replacement dispatch within 5 business days of confirmed defect verification.
