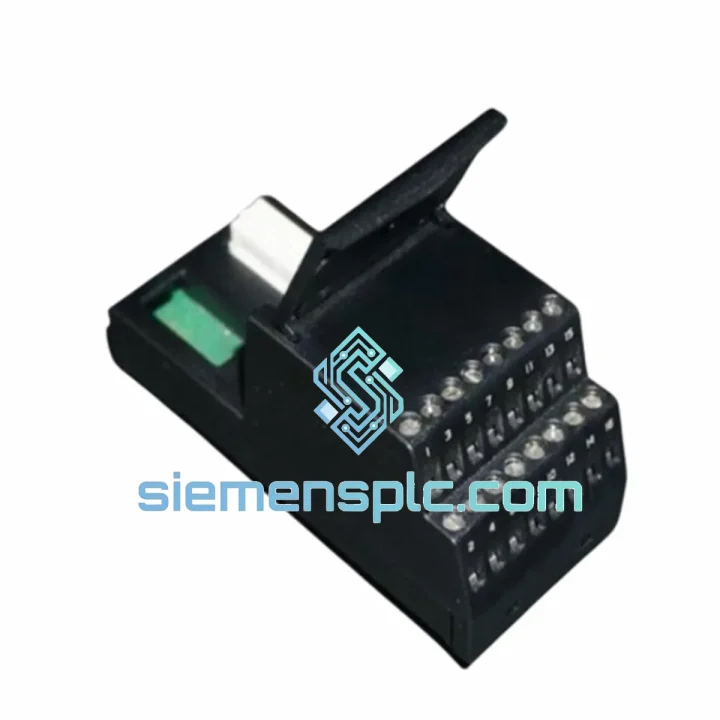

Emerson KJ4006X1-BD1 DCS Terminal Block

Emerson KJ4006X1-BD1 – Stop the Clock on Your DCS Downtime. Ship Today.

Every hour your DeltaV system sits offline costs real money — lost throughput, idle crews, and contract penalties. The KJ4006X1-BD1 field termination block is one of those components that nobody thinks about until it fails, and when it does, the entire I/O subsystem goes dark. We stock it. We ship it today. That’s the only thing that matters right now.

This is not a catalog listing. This is a direct line to a verified, ready-to-ship KJ4006X1-BD1 sourced through controlled supply channels, inspected before it leaves our warehouse in Xiamen, and on a DHL/FedEx truck within hours of your order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The KJ4006X1-BD1 fails in predictable ways. Here’s what ten years of field calls have taught me:

Fault Pattern 1 – Intermittent AI channel dropout. You’ll see sporadic loss of 4–20 mA readings on one or more channels, often correlating with ambient temperature swings. Root cause is almost always oxidized screw-clamp contacts or a cracked terminal housing from thermal cycling. Before you pull the I/O card, swap the terminal block first — it’s a five-minute job and eliminates the most common culprit.

Fault Pattern 2 – HART communication loss on a single loop. If your DeltaV HART pass-through stops responding on a specific channel while the 4–20 mA signal remains intact, check the terminal block’s signal path continuity. A partially seated terminal or a hairline crack in the PCB trace inside the block will kill HART superimposed signal while leaving the analog loop alive.

Fault Pattern 3 – Multiple channels fail simultaneously after a cabinet surge event. Lightning-induced transients or upstream power fault events can carbonize the internal bus bar of the terminal block. If you’re seeing three or more channels go dead at once with no corresponding I/O card fault LED, the terminal block is the first thing to replace.

Replacement Procedure (field-verified):

1. Confirm the DeltaV I/O card is in a safe state — check the module status LED and acknowledge any active alarms in DeltaV Explorer before proceeding.
2. Photograph the existing field wiring layout before disconnecting anything. Terminal labeling fades; your photo won’t.
3. Loosen each screw-clamp terminal and tag wires with numbered ferrule markers if not already labeled. Do not rely on wire color alone.
4. Depress the carrier latch and slide the KJ4006X1-BD1 off the I/O carrier rail. No tools required — it’s a snap-fit design.
5. Inspect the carrier connector pins for corrosion or mechanical damage before seating the replacement block.
6. Snap the new KJ4006X1-BD1 onto the carrier. You should feel a positive click. If it doesn’t seat fully, check for debris in the carrier slot.
7. Re-terminate field wires in the correct positions per your loop drawing. Torque screw terminals to 0.5–0.6 N·m — under-torqued terminals are the leading cause of premature failure.
8. In DeltaV Explorer, perform a channel diagnostic scan. Verify all AI/AO/DI/DO channels return to normal status within 30 seconds of power restoration.
9. Run a HART device scan if applicable. Confirm device descriptors are recognized before releasing the loop to operations.

Configuration note: The KJ4006X1-BD1 is a passive termination block — it carries no firmware, no DIP switches, and no address configuration. There is no self-addressing procedure required. All channel assignment is handled at the I/O card and DeltaV controller level. If channels remain unresponsive after block replacement, the fault has migrated upstream to the I/O card or carrier.

Reliability in Harsh Conditions

Process plants are not server rooms. The KJ4006X1-BD1 is built to survive the environments that destroy consumer-grade electronics within months.

Vibration resistance: The snap-on carrier mount and screw-clamp terminal design maintain mechanical integrity under continuous vibration loads typical of compressor houses, pump skids, and rotating equipment enclosures. The housing polymer is selected for dimensional stability — it won’t creep or deform under sustained mechanical stress.

Thermal cycling endurance: Rated for 0°C to +60°C continuous operation, the KJ4006X1-BD1 handles the daily thermal cycling of outdoor marshalling cabinets in tropical and desert climates. Internal contact materials are selected to minimize differential thermal expansion between the terminal body and field wire conductors, which is the primary driver of contact resistance increase over time.

Humidity and condensation: The terminal block housing provides IP-rated protection against moisture ingress when installed in a properly sealed DeltaV I/O enclosure. For installations in high-humidity coastal or offshore environments, ensure cabinet door seals are intact and desiccant packs are replaced on schedule — the terminal block will outlast a neglected cabinet seal every time.

Chemical atmosphere tolerance: In petrochemical and refinery environments where H₂S, SO₂, or chlorine compounds are present in the ambient air, the KJ4006X1-BD1’s contact plating provides adequate corrosion resistance for standard control room and marshalling cabinet installations. For direct exposure to aggressive chemical atmospheres, consult Emerson’s environmental compatibility documentation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx international gateway access. Here’s exactly what happens after you confirm your order:

Hour 0–2: Order confirmed, payment cleared. Our warehouse team pulls the KJ4006X1-BD1 from stock, performs a final visual and continuity check, and packages it in anti-static foam with a rigid outer carton rated for international air freight handling.

Hour 2–4: Customs documentation prepared — commercial invoice, packing list, HS Code 8538.90 declaration, and Certificate of Origin. For orders requiring an urgent export license or end-user declaration, our logistics team initiates that process in parallel.

Hour 4–8: Shipment handed to DHL Express or FedEx International Priority, depending on your destination and preference. Tracking number issued to your email immediately upon carrier scan.

Transit times (typical):

• Southeast Asia (Singapore, Thailand, Malaysia): 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days
• Europe (Germany, Netherlands, UK): 3–4 business days
• North America (USA, Canada): 3–5 business days
• South America (Brazil, Chile): 5–7 business days

For genuine plant emergencies, contact us directly on WhatsApp before placing your order. We can coordinate same-day dispatch for orders confirmed before 14:00 CST and arrange airport-to-airport freight for the most time-critical situations.
