EMERSON PR6426/000-030 CON021 Proximity Sensor – Bently Nevada 3300 Series

EMERSON PR6426/000-030 CON021 — Eddy Current Proximity Sensor with Integral CON021 Signal Conditioner for Critical Machinery Protection

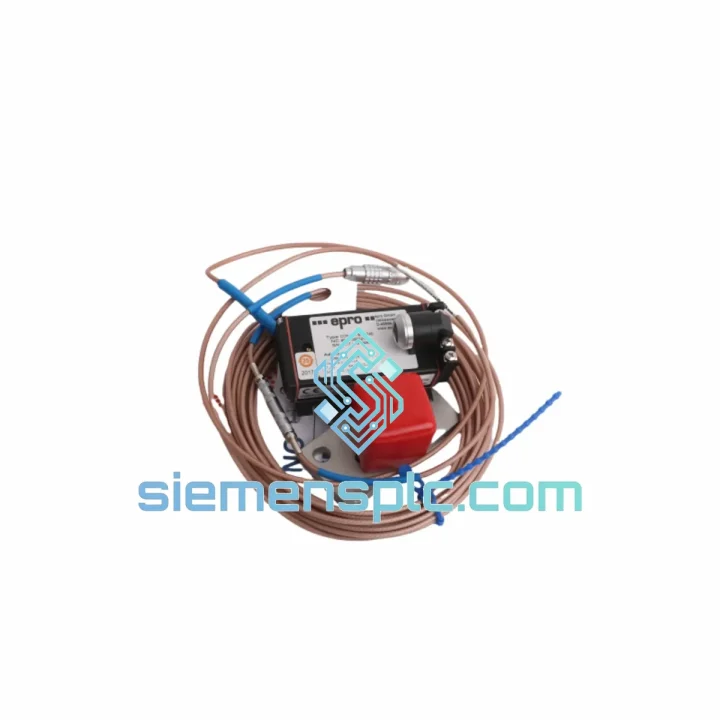

The PR6426/000-030 CON021 is a non-contact displacement transducer manufactured by EMERSON under the Bently Nevada product line. It operates on the eddy current principle: a high-frequency oscillating magnetic field generated at the probe tip induces circulating currents in any electrically conductive target surface within its measurement gap. The impedance change in the probe coil, proportional to the gap distance, is processed by the integral CON021 driver/conditioner into a DC voltage output that is directly proportional to the physical separation between probe tip and target. This architecture eliminates the need for a separate extension cable driver, reducing installation complexity and potential signal degradation points in the measurement chain.

In a rotating machinery protection loop, this transducer occupies the first and most critical position: it converts a mechanical displacement event — shaft radial vibration, axial thrust movement, or differential thermal expansion — into an electrical signal that feeds the monitor rack. The accuracy and repeatability of this conversion determines the reliability of every downstream alarm, trip, and diagnostic decision. The PR6426/000-030 CON021 is designed to maintain calibration stability across the full operating life of the machine, with no moving parts and no wear mechanism that could introduce drift.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6426 probe coil is wound on a ferrite core and encapsulated in a thermally stable polymer housing. The coil geometry is precision-controlled to maintain consistent inductance across the production batch, which directly determines sensitivity uniformity. The CON021 conditioner integrates the oscillator, demodulator, and output buffer into a single sealed module. The oscillator operates at a fixed frequency selected to optimize the depth of eddy current penetration for standard steel targets — typically in the range of 1–2 MHz — which confines the measurement field to the near-surface layer of the shaft and minimizes sensitivity to subsurface material variations.

EMC performance is addressed at the hardware level through differential signal routing within the CON021 module and a grounded shield on the probe cable. The shield is terminated at the conditioner end only (single-point grounding), preventing ground loop currents that would appear as low-frequency noise on the output. The output stage is a low-impedance voltage source capable of driving cable loads up to several hundred picofarads without bandwidth degradation, which is relevant in installations where the monitor rack is located at a distance from the machinery.

Thermal compensation is implemented through a matched pair of NTC thermistors embedded in the probe body. Their resistance-temperature characteristic is selected to counteract the temperature coefficient of the coil inductance, maintaining sensitivity within ±0.5% across the full probe temperature range. This is particularly significant in steam turbine applications where probe body temperatures can vary by 100°C or more between cold startup and full-load steady state. Without this compensation, a thermal drift of that magnitude would produce a false axial position shift of several tens of micrometers — sufficient to trigger a spurious alarm or mask a genuine thrust bearing wear event.

The CON021 module also incorporates an open-circuit and short-circuit detection function. If the probe cable is severed or the probe coil fails, the output voltage moves to a defined out-of-range value (typically beyond −18 VDC or above −2 VDC), which the monitor rack interprets as a transducer fault rather than a process alarm. This fail-safe behavior is required by API 670 and prevents a cable failure from being misinterpreted as a machinery trip condition.

System Integration Benefits

• Direct API 670 Compliance: The PR6426/000-030 CON021 meets the performance requirements of API 670 (5th Edition) for eddy current transducer systems, including sensitivity tolerance, temperature range, and frequency response. This eliminates the need for third-party performance verification during EPC contractor acceptance testing.
• Plug-Compatible with Bently Nevada 3300 and 3500 Monitor Racks: The output signal range (−2 VDC to −18 VDC) and sensitivity (7.87 V/mm) match the input specifications of the 3300/16, 3500/40M, and 3500/42M monitor modules without any scaling adjustment. Replacement of an existing PR6426 unit requires no monitor reconfiguration.
• Deterministic Frequency Response to 10 kHz: The flat amplitude response from DC to 10 kHz allows the monitor to capture shaft vibration components up to the 10th harmonic of a 60,000 RPM machine, or sub-synchronous instability frequencies as low as a few hertz, within a single transducer channel.
• Integral Driver Eliminates Extension Cable Matching: Conventional eddy current systems require a matched probe-extension cable-driver set where cable length is fixed at calibration. The CON021 integral design removes the extension cable variable, simplifying spare parts management and reducing the risk of mismatched component substitution in the field.
• Single-Point Ground Architecture Reduces Noise Floor: The shielding scheme suppresses common-mode interference from variable-frequency drives, high-voltage switchgear, and RF sources present in industrial environments, maintaining signal integrity in electrically noisy machinery halls.
• Fail-Safe Output on Transducer Fault: Out-of-range output on open or short circuit allows the monitor to distinguish between a machinery alarm and a measurement system fault, supporting SIL-capable safety instrumented system architectures per IEC 61511.
• Wide Probe Temperature Rating Supports Hot-Section Installations: The −50°C to +177°C probe rating covers bearing housing temperatures in gas turbines and high-pressure steam turbines where lower-rated sensors require active cooling or relocation to cooler measurement points.
• Traceable Calibration Documentation Available: Each unit can be supplied with a calibration certificate traceable to national standards, supporting quality management systems operating under ISO 9001 or equivalent frameworks and satisfying documentation requirements for nuclear and safety-critical applications.

Quality Assurance & Global Logistics

Every PR6426/000-030 CON021 unit supplied through siemensplc.com is sourced as genuine EMERSON / Bently Nevada original equipment. Units are procured through verified industrial distribution channels with full supply chain traceability. Incoming inspection at our Xiamen facility includes dimensional verification against the OEM datasheet, sensitivity and linearity bench testing across the full gap range, packaging integrity check with anti-static and moisture barrier protection, and serial number / date code documentation for lot traceability.

We do not supply refurbished, reconditioned, or grey-market units. Certificate of conformance is available upon request. For projects requiring material test reports or third-party inspection, please specify at the time of inquiry.

Logistics are managed from Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are dispatched within 1–3 business days. Export documentation including commercial invoice, packing list, and HS code classification (HS 9031.80) is prepared for each shipment. For project quantities requiring consolidated freight or air charter, our logistics team can coordinate door-to-door delivery to any destination worldwide.
