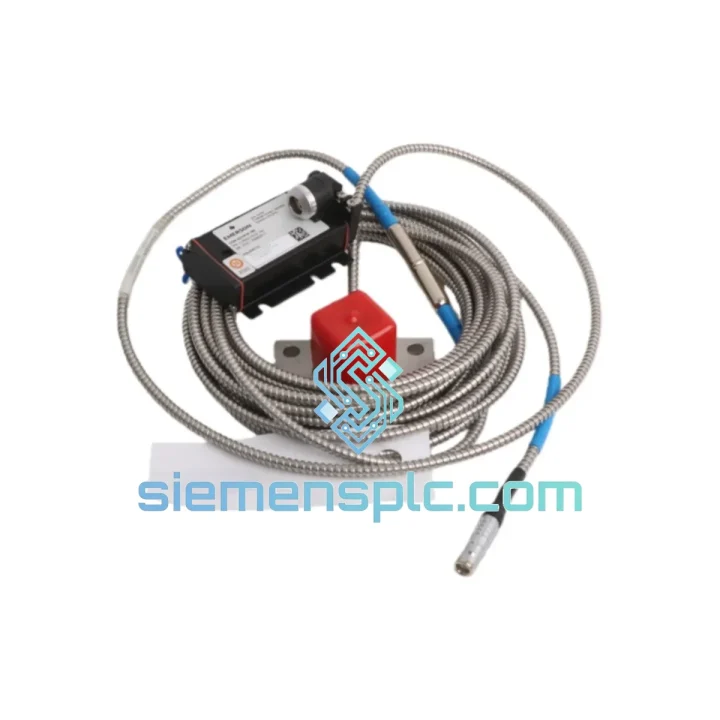

Emerson PR6426/010-040 Eddy Current Sensor – EPRO Series

Emerson PR6426/010-040 — Eddy Current Proximity Probe in Rotating Machinery Condition Monitoring

The PR6426/010-040 is a 10 mm eddy current proximity probe manufactured under Emerson’s EPRO platform, designed for continuous non-contact measurement of shaft radial vibration, axial displacement, and rotor position in high-speed rotating machinery. The “/010” suffix designates the 10 mm probe tip diameter; the “/040” suffix specifies a 4.0 m coaxial extension cable. Together, these define a complete probe-cable assembly that interfaces with a compatible driver/oscillator module — typically the Emerson CON021 or CON041 — to form a three-component eddy current measurement chain.

In a control loop context, this sensor occupies the field-sensing layer: it converts mechanical gap distance between probe face and conductive target shaft into a proportional DC voltage signal. That signal feeds directly into vibration monitors, safety shutdown systems, or analog input modules on DCS and PLC platforms. The measurement is inherently continuous, with no moving parts and no physical contact with the rotating element, making it the standard transducer choice for API 670-compliant machinery protection systems.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6426/010-040 operates on the principle of electromagnetic induction: the probe coil, driven by a high-frequency oscillator (typically 1 MHz carrier), generates an alternating magnetic field at the probe face. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and reducing coil impedance. The driver module detects this impedance shift, demodulates the carrier, and outputs a linearized DC voltage proportional to the air gap — typically in the range of –2 VDC (near gap) to –18 VDC (far gap) for a standard AISI 4140 steel target.

EMC Design: The coaxial extension cable (/040) uses a double-shielded construction with low-capacitance dielectric, suppressing common-mode noise injection from adjacent power cables and variable-frequency drives. The probe body is constructed from non-magnetic stainless steel, which prevents the housing from distorting the electromagnetic field pattern and ensures measurement linearity is maintained even in magnetically noisy environments such as motor end-bells or generator stator housings.

Thermal Compensation: The probe coil winding uses a temperature-stable alloy with a controlled thermal coefficient of resistance. This compensates for the natural drift in coil impedance across the –40 °C to +120 °C operating range, maintaining sensitivity within ±0.5% of nominal across the full thermal envelope — a critical requirement for steam turbine bearing housings where probe temperatures can vary by 80 °C between cold startup and full-load operation.

Gap-Voltage Linearity: The measurement chain achieves better than ±1% linearity error across the 0–2 mm linear range when used with the specified Emerson driver. This linearity is achieved through a combination of probe geometry optimization (controlled winding pitch and coil former dimensions) and driver-side signal conditioning that applies a polynomial correction to the raw demodulated signal.

IP67 Sealing Architecture: The probe-to-cable junction is the most mechanically vulnerable point in any eddy current assembly. Emerson’s PR6426 series uses an overmolded junction with a dual O-ring seal and epoxy backfill, rated to IP67 (1 m submersion, 30 minutes). This construction withstands oil mist, coolant spray, and high-pressure wash-down without moisture ingress into the coaxial signal path — a failure mode that would otherwise introduce capacitive loading errors and degrade sensitivity.

System Integration Benefits

• Direct API 670 compliance: The PR6426/010-040 meets the transducer requirements of API Standard 670 (5th Edition) for radial vibration and axial position measurement, enabling drop-in use in machinery protection systems without additional engineering justification.
• Deterministic analog output: The DC voltage output has zero latency relative to shaft motion — there is no digital conversion delay, no fieldbus cycle time, and no firmware processing lag. This makes the signal suitable for direct connection to hardware-based overspeed and high-vibration trip relays with sub-millisecond response requirements.
• Broad monitor compatibility: The output signal is compatible with Emerson CSI 2140, Bently Nevada 3500 series, Metso Neles, and any DCS/PLC analog input card accepting –24 VDC-powered eddy current probes. No signal conditioning adapter is required for standard installations.
• Diagnostic transparency: The raw gap voltage is continuously available at the monitor terminal, allowing maintenance engineers to trend static gap (DC component) and dynamic vibration (AC component) independently. A rising DC offset indicates bearing wear or shaft bow; increasing AC amplitude indicates developing imbalance or misalignment.
• Non-ferromagnetic target support: Unlike magnetic reluctance sensors, the PR6426 responds to all conductive metals. This allows use on aluminum, titanium, and Inconel shafts common in aerospace-derived turbomachinery and high-temperature process compressors, without recalibration of the monitor trip setpoints (sensitivity adjustment at driver level is sufficient).
• 4.0 m cable reach for confined installations: The /040 extension cable allows the driver/oscillator to be mounted outside the machine casing in an accessible junction box, while the probe is positioned at the bearing housing. This separation is essential in high-temperature zones where driver electronics cannot survive continuous exposure above 85 °C.
• Redundant measurement capability: Two PR6426/010-040 probes mounted 90° apart (X-Y configuration) provide full orbital analysis of shaft motion. This configuration, standard in API 670 installations, enables detection of directional vibration, shaft bow, and rub events that a single-axis measurement would miss.
• Long-term calibration stability: The probe’s coil assembly is potted in a thermally stable epoxy compound that prevents mechanical relaxation of the winding over time. Field experience in continuous-duty turbine applications demonstrates calibration drift of less than 2% over a 5-year service interval, reducing the frequency of in-situ calibration checks.

Quality Assurance & Global Logistics

Each PR6426/010-040 unit supplied by siemensplc.com is sourced as genuine Emerson EPRO OEM hardware. Prior to shipment, every probe assembly undergoes a functional verification protocol: gap-voltage linearity is checked at three reference distances (0.5 mm, 1.0 mm, 1.5 mm) against a calibrated AISI 4140 steel target, and sensitivity is confirmed within ±5% of the 8 mV/µm nominal value. Units that do not meet this threshold are quarantined and not offered for sale.

Traceability documentation — including serial number, manufacturing date code, and test results — is provided with each shipment. Original Emerson datasheets and, where applicable, ATEX certification documents are available on request at the time of order confirmation.

Packaging uses anti-static foam inserts with a moisture-barrier outer bag, suitable for air freight and sea freight transit. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment from our Xiamen, China operations center. Preferred carriers are DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with full tracking provided from dispatch to delivery. Standard lead time for in-stock units is 3–5 business days to most destinations in Asia, Europe, and North America. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or credit issued upon verification.
