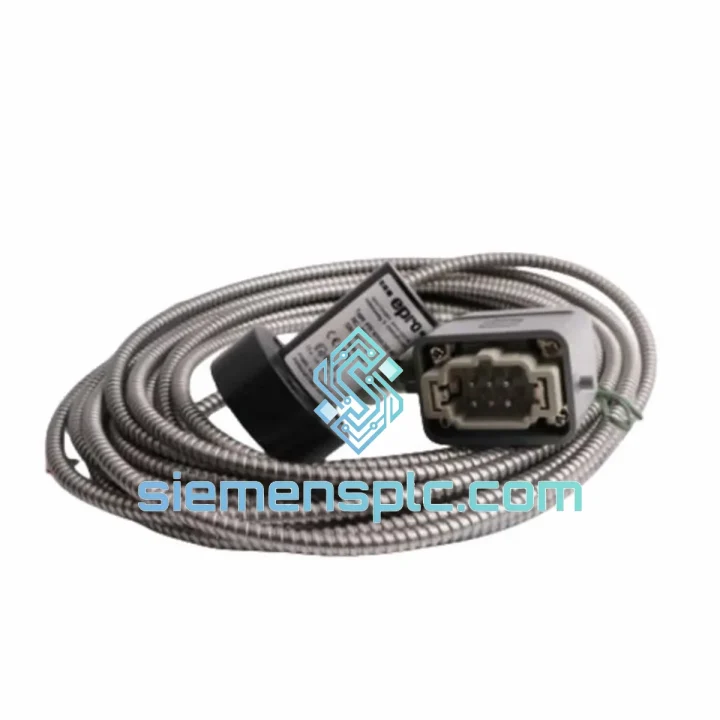

EMERSON PR9268/302-00 Velocity Sensor – Bently Nevada Series

EMERSON PR9268/302-00 Seismic Velocity Sensor – Structural Role in Rotating Machinery Protection Loops

The PR9268/302-00 is a passive electromagnetic velocity transducer manufactured by EMERSON within the Bently Nevada instrumentation lineage. Its operating principle is grounded in Faraday’s law of electromagnetic induction: a permanent magnet suspended on a spring-mass system moves relative to a fixed coil winding when the sensor housing is subjected to mechanical vibration. The resulting EMF output is directly proportional to the velocity of the vibrating surface, expressed in millivolts per millimeter per second (mV/mm·s⁻¹). This self-generating characteristic eliminates the need for external excitation power, making the PR9268/302-00 inherently suitable for intrinsically safe zone installations where power budgets are constrained.

Within a machinery protection loop, the PR9268/302-00 occupies the front-end sensing position. Its analog voltage output feeds directly into Bently Nevada 3500-series monitor cards or equivalent signal conditioning modules, where the raw velocity signal is band-pass filtered, RMS-integrated, and compared against alarm and danger setpoints. The sensor’s flat frequency response across 10 Hz to 1,000 Hz covers the dominant vibration modes of most rotating equipment operating between 600 RPM and 60,000 RPM, including sub-synchronous instability, fundamental unbalance (1×), misalignment (2×), and blade-pass frequencies in multi-stage turbomachinery.

The spring-mass resonance of the internal seismic element is tuned below 10 Hz, ensuring that the sensor operates well above its natural frequency across the entire measurement band. This design choice produces a flat amplitude response with phase linearity better than ±3° from 20 Hz to 800 Hz — a critical requirement when phase-referenced vibration analysis is used for balancing or orbit reconstruction. The IP65-rated stainless steel housing provides ingress protection against pressurized water jets and particulate contamination, consistent with IEC 60529 classification, enabling direct mounting on bearing housings in wet or dusty plant environments without additional enclosure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR9268/302-00 employs a dual-layer EMC shielding architecture. The inner coil assembly is enclosed within a mu-metal (nickel-iron alloy) magnetic shield that attenuates external AC magnetic field interference by a factor exceeding 40 dB at 50/60 Hz power-line frequencies. This is particularly significant in substation-adjacent installations where stray magnetic flux from bus bars and transformers would otherwise induce spurious voltages in the sensor output, generating false alarm conditions in the monitoring rack.

The spring-mass suspension system uses a beryllium-copper leaf spring with a fatigue life rated at 10⁸ cycles at maximum rated displacement amplitude. Unlike coil-spring designs, the leaf spring geometry constrains lateral motion of the seismic mass to less than 0.05 mm, preventing cross-axis sensitivity from exceeding 5% of the primary axis response. This mechanical constraint is essential when the sensor is mounted on bearing housings subject to multi-directional vibration from coupled machinery trains.

The coil winding uses polyimide-insulated copper wire rated to Class H (180°C), providing a thermal margin of 60°C above the maximum rated operating temperature. This margin accommodates transient thermal excursions during process upsets without degrading insulation resistance below the 100 MΩ threshold required for reliable signal integrity. The coil termination uses silver-soldered joints rather than crimped connections, eliminating the contact resistance variability that can introduce low-frequency noise into the output signal.

The connector interface is sealed with a fluorosilicone O-ring rated for continuous exposure to hydrocarbon vapors, H₂S concentrations up to 500 ppm, and steam condensate — conditions routinely encountered in petrochemical and power generation environments. The connector shell is bonded to the sensor housing via a conductive gasket, maintaining shield continuity from the coil assembly through to the cable screen termination at the monitor card.

System Integration Benefits

• Direct Bently Nevada 3500 Rack Compatibility: The PR9268/302-00 output impedance and sensitivity are matched to the input specifications of Bently Nevada 3500/42M and 3500/45 velocity monitor cards, enabling plug-and-play replacement without recalibration of the monitor card’s full-scale range or alarm setpoints.
• No Power Supply Dependency: As a self-generating transducer, the sensor introduces zero additional load on the instrument power distribution system. This simplifies intrinsic safety barrier selection and eliminates the failure mode associated with sensor power supply faults causing false machinery trips.
• Deterministic Signal Latency: The passive analog output has zero processing latency between mechanical input and electrical output. Signal propagation delay is limited only by cable capacitance — typically less than 50 ns for a 5 m cable — ensuring that the monitor card receives a real-time representation of bearing housing velocity without digital sampling artifacts.
• Broadband Diagnostic Transparency: The 10–1,000 Hz flat response band allows the monitor card to extract both low-frequency sub-synchronous components (fluid whirl, rub) and high-frequency blade-pass or gear-mesh frequencies within a single sensor channel, reducing the number of transducers required per measurement plane.
• Orbit Plot Reconstruction Capability: When two PR9268/302-00 sensors are mounted at 90° on the same bearing housing, the phase-linear response enables accurate X-Y orbit reconstruction in the monitor software, providing shaft centerline position data equivalent to proximity probe measurements for machines where proximity probe installation is mechanically impractical.
• Hazardous Area Suitability: The sensor’s passive architecture and low internal energy storage make it compatible with Zener barrier and galvanic isolator designs for ATEX Zone 1 and IECEx Group IIC installations without requiring an intrinsically safe sensor variant with modified electrical parameters.
• DCS Integration via Standard Signal Conditioning: The analog voltage output is compatible with standard velocity-to-4–20 mA transmitters, enabling direct integration into Honeywell Experion, ABB 800xA, Yokogawa CENTUM VP, and Emerson DeltaV DCS platforms without proprietary interface modules.
• Reduced Maintenance Interval: The absence of active electronic components within the sensor body eliminates the primary failure modes associated with powered transducers (power supply degradation, capacitor aging, firmware corruption). Field experience in continuous-duty turbine monitoring applications indicates mean time between failures (MTBF) exceeding 80,000 operating hours under rated conditions.
• Calibration Traceability: Each unit is factory-calibrated against a reference standard traceable to national metrology institutes (PTB/NIST equivalent), with sensitivity deviation documented on the calibration certificate. This traceability supports ISO 17025-compliant maintenance programs in regulated industries.

Quality Assurance & Global Logistics

Every PR9268/302-00 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full batch traceability. Physical inspection covers housing markings, serial number format, connector pin geometry, and cable jacket material against OEM reference samples. Functional verification confirms that the open-circuit sensitivity falls within the factory-specified tolerance band using a calibrated vibration exciter at 79.6 Hz (500 RPM equivalent). Insulation resistance is measured at 500 VDC between the coil winding and the housing to confirm values above 100 MΩ before dispatch.

Logistics operations are managed from Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. In-stock units are dispatched within 1–3 business days of order confirmation. Export documentation includes a commercial invoice, packing list, certificate of origin (Form A or CO), and HS code declaration (HS 9031.80) for customs clearance. Bulk orders of 5 units or more qualify for sea freight consolidation via LCL service to major ports in Southeast Asia, the Middle East, Europe, and South America. A 12-month warranty against manufacturing defects is provided with every unit, covering free replacement or full refund at the buyer’s discretion.
