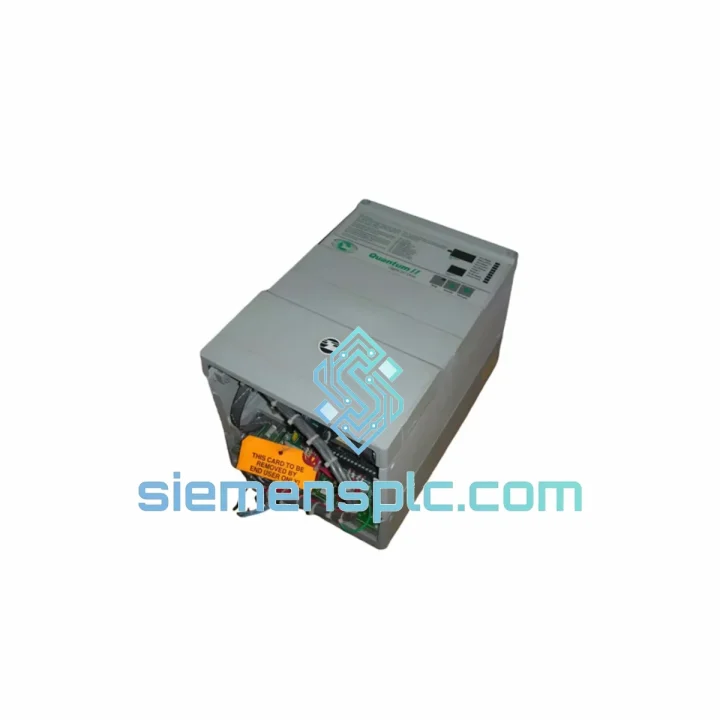

EMERSON QUANTUM-II-9500-8201A Servo Drive

QUANTUM-II-9500-8201A: Your Line Stopped — We Ship Before the Next Shift

Unplanned downtime on a servo axis costs real money. Not theoretical money — actual lost production, penalty clauses, and overtime for your maintenance crew. When the QUANTUM II 9500-8201A goes down, you don’t have three weeks for a factory repair cycle. You need a verified unit on a truck today. We stock this drive in Xiamen, tested and ready. Order confirmed before 14:00 CST and it leaves the same evening via DHL or FedEx International Priority. That’s not a marketing claim — it’s how we’ve operated for every emergency callout we’ve handled across four continents.

The EMERSON QUANTUM II platform is a mature, field-proven servo drive architecture deployed across packaging lines, CNC machining centers, semiconductor handling equipment, and high-speed printing systems. The 9500-8201A variant covers multi-mode operation — position, velocity, and torque — with support for incremental encoder, resolver, and SinCos feedback depending on configuration. It’s not a niche part. It’s a workhorse that fails when it’s been running hard for years, and when it does, you need a replacement that matches the original spec exactly. That’s what we provide.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work on EMERSON QUANTUM II drives teaches you that failures cluster around the same root causes. Before you pull the drive, run through this checklist — it will save you a second trip if the problem isn’t the drive itself.

Fault Code Analysis

• F01 — Overcurrent: The drive’s output current exceeded the trip threshold. First action: isolate the motor and megger the windings phase-to-phase and phase-to-ground. A reading below 1 MΩ phase-to-ground means the motor insulation has broken down. Installing a new drive into a shorted motor will trip F01 within seconds of enable. Fix the motor first. If the motor checks out, inspect the output power cable for chafing against the cabinet frame — a single intermittent short will produce the same fault.
• F05 — Encoder / Feedback Loss: The drive lost communication with the feedback device. This is almost always a cable issue, not a failed encoder. Check the shield continuity on the feedback cable from end to end. QUANTUM II drives require the shield to be grounded at the drive end only — grounding at both ends creates a ground loop that induces noise on the differential signal lines. Reseat the D-sub connector at the drive. If the fault clears on power cycle but returns under motion, the cable is intermittent and needs replacement regardless of how it looks externally.
• F08 — DC Bus Overvoltage: The bus voltage exceeded the protection threshold during deceleration. The 9500-8201A has an internal braking resistor, but it is sized for light regenerative loads only. If your application involves a vertical axis, high-inertia load, or rapid deceleration cycles, you need an external braking resistor. Calculate the peak regenerative power and size accordingly. A resistor that’s too small will overheat and open — which looks like an F08 fault on the next deceleration cycle.
• F12 — Drive Overtemperature: The heatsink thermistor tripped. Before assuming the drive is faulty, check the cooling fan. The QUANTUM II uses a brushless DC fan that fails without audible warning — it simply slows down and stops moving air. With power off, spin the fan blade by hand. Any stiffness or grinding means the bearing is gone. Replace the fan before installing the new drive or you’ll be back on-site within months.
• Drive Enabled, No Motion: The drive accepts the enable signal but the axis doesn’t move. Check both the hardware enable input (terminal X3:EN, requires +24 VDC) and the software enable from the motion controller. QUANTUM II requires both simultaneously. A missing hardware enable produces a silent, non-faulted drive — no alarm, no motion. This catches engineers who are used to drives that default to hardware-enable-always.

Replacement Procedure — Field Checklist

• Step 1 — Parameter Export: Before cutting power to the failed drive, connect via RS-232 and export the full parameter set using CT Soft or the equivalent commissioning tool. The 9500-8201A stores all axis tuning data — gains, limits, scaling, I/O mapping — internally. A parameter upload to the replacement drive eliminates re-commissioning time entirely, provided the motor hasn’t changed.
• Step 2 — DIP Switch Documentation: The 9500-8201A uses a DIP switch bank for node address assignment in multi-axis configurations. Photograph the switch positions on the failed unit before removal. Replicate exactly on the replacement. A wrong node address causes axis ID conflicts that present as communication faults from the controller — a confusing symptom that wastes diagnostic time.
• Step 3 — Firmware Verification: Check the firmware revision label on the control board of the failed drive. Match the replacement to the same revision where possible. QUANTUM II firmware revisions are not always backward-compatible with older motion controller software versions. If you need a specific firmware build, contact us before ordering — we can verify the revision on our stock unit before it ships.
• Step 4 — Power-Up Sequence: Apply 24 VDC control power before main AC power. This allows the drive to complete its initialization and self-test sequence before the DC bus charges. Applying AC first on a QUANTUM II can mask initialization faults that would otherwise be caught during the boot sequence.
• Step 5 — Direction Verification: After parameter upload and enable, jog the axis at 5–10% of rated speed. Confirm the direction of travel matches the controller command. A single phase swap on the motor output (U/V/W) inverts torque direction and causes the axis to run away from the commanded position. Catch this at low speed before enabling full motion.

Reliability in Harsh Conditions

The QUANTUM II 9500-8201A wasn’t designed for a temperature-controlled server room. It was built for the industrial floor — where ambient temperatures swing, coolant mist settles on surfaces, and the cabinet shakes every time a press cycles. The drive’s IGBT power stage is rated for continuous operation with thermal headroom to 40 °C ambient without forced derating. Above that, the drive’s internal thermal management applies a controlled derating curve rather than a hard trip, giving you a warning window instead of a sudden shutdown.

The control board carries a conformal coating applied to the PCB surface. This isn’t a marketing specification — it’s a functional barrier against condensation, flux residue from nearby welding operations, and the fine metallic dust that accumulates in machining environments. In coastal installations where daily humidity cycles push moisture into cabinets, conformal coating is the difference between a drive that lasts five years and one that corrodes in eighteen months.

Mechanical robustness comes from the QUANTUM II’s backplane-mounted architecture. The control board is mechanically decoupled from the power stage, which means the high-frequency vibration generated by the power switching doesn’t transmit directly to the signal-level components. In stamping, forging, and press applications where floor vibration is constant and broadband, this structural isolation matters for long-term solder joint integrity.

Every unit we ship from Xiamen has been powered up and run through a functional verification: DC bus charge cycle, enable response, feedback signal acquisition, and fault-free idle operation. Units are stored in climate-controlled conditions with desiccant packs inside the packaging. What arrives at your site is a drive that was operationally verified within the past 30 days — not a unit that’s been sitting in an uncontrolled warehouse for two years.

Global Express Logistics

Our Xiamen facility sits within direct reach of the DHL, FedEx, and UPS international gateway hubs that serve southern China’s export corridor. The logistics process for an emergency order is straightforward and fast.

• Cut-off for Same-Day Dispatch: Orders confirmed before 14:00 CST ship the same evening. The AWB number reaches you via email and WhatsApp within two hours of handover to the carrier.
• DHL Express International Transit Times: Southeast Asia 1–2 business days. Europe 3–4 business days. North America 3–5 business days. Middle East and Africa 4–6 business days. Australia and New Zealand 3–5 business days.
• FedEx International Priority: Available as an alternative when DHL capacity is constrained or when your import broker has a preferred carrier relationship with FedEx. Transit benchmarks are equivalent.
• Export Documentation: Commercial invoice, packing list, and HS code declaration are prepared on the day of shipment. If your customs clearance requires a Certificate of Origin, a material safety data sheet, or specific technical documentation for import classification, advise us at the time of order and we prepare it same day.
• Customs Support: We declare accurately and completely. If a shipment is held for customs inspection, we provide supporting technical documentation to your import broker within hours. We’ve cleared shipments into the EU, GCC countries, ASEAN markets, and North America without delays attributable to documentation errors.
• Coverage: We have shipped to over 40 countries. Automotive assembly plants in Germany, pulp mills in Scandinavia, petrochemical facilities in the Gulf, food processing lines in Southeast Asia. The process is the same regardless of destination — fast, fully documented, and traceable at every checkpoint.
