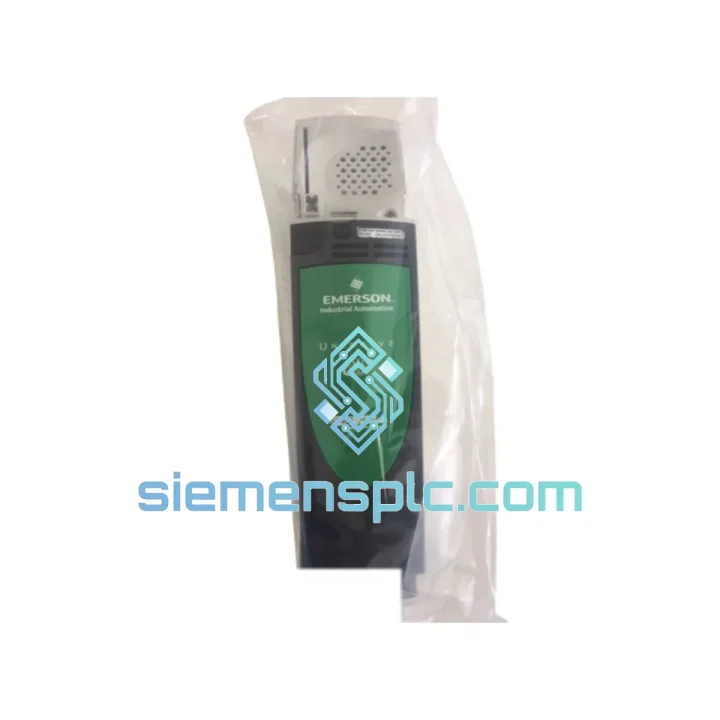

Emerson SPMD1402 DCS I/O Module

Emerson SPMD1402 – Stop the Bleeding: Get Your DeltaV Node Back Online Before the Next Shift

Every hour your DeltaV node sits dark, the losses compound — lost throughput, idle crews, and a maintenance manager breathing down your neck. The SPMD1402 Universal Digital I/O Module is the exact card that brings your 16-channel discrete loop back to life. We stock it in Xiamen, we test it before it ships, and we can have it moving toward your plant within hours of your order. No broker runaround. No “lead time TBD.” Just the part, verified, boxed, and on its way.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real-world callouts — not the manual. Here is what actually trips people up when swapping an SPMD1402 in the field:

1. Module Not Recognized After Hot-Swap
The SPMD1402 uses DeltaV’s automatic module recognition via the carrier backplane — no manual node addressing or DIP switches. If DeltaV Explorer shows the slot as “Unrecognized” after insertion, the most common culprits are: (a) the carrier slot is assigned to a different module type in the DeltaV database — open DeltaV Explorer, right-click the slot, select “Replace Module,” and confirm the SPMD1402 type; (b) the module was inserted while the carrier power was cycling — wait for the carrier LED to go solid green before seating the card.

2. Firmware Mismatch Warning (Event Code 0x4A or 0x4B)
If your DeltaV system is running v11.x or earlier and the replacement SPMD1402 carries a newer firmware revision, you may see a compatibility warning in the event log. This does not always prevent operation, but you should verify the firmware revision on the module label against Emerson’s compatibility matrix (document D800001X012). In most cases, a DeltaV system upgrade to v13.3+ resolves the mismatch cleanly. Do not force-download firmware to the module without confirming the carrier power budget first.

3. Channels Configured as DO Showing No Output
Check the field-side wiring polarity first — the SPMD1402 sourcing outputs require the load to be connected between the output terminal and the 24 VDC common, not to a separate supply positive. A reversed wiring on even one channel can mask the fault as a module failure. Use a multimeter at the terminal block before condemning the card.

4. Intermittent DI Faults on Channels 9–16
This pattern almost always points to a ground loop between the field device common and the panel common. The SPMD1402’s optical isolation handles most transients, but a floating field common on a long cable run (over 200 m) can exceed the common-mode rejection window. Install a 100 Ω resistor in series with the field common at the terminal block as a first diagnostic step.

5. Replacement Checklist Before Powering Up

• Confirm carrier slot type matches SPMD1402 footprint (8-slot vs. 12-slot carrier — both are compatible)
• Verify DeltaV database has the slot pre-assigned to SPMD1402 type
• Check firmware revision on module label vs. system compatibility matrix
• Inspect carrier backplane connector pins for bent contacts or corrosion
• Confirm 24 VDC field power supply is within ±10 % tolerance before energizing
• After insertion, allow 45–60 seconds for DeltaV to complete module initialization before checking channel status

Reliability in Harsh Conditions

The SPMD1402 was not designed for a climate-controlled server room. It was built for the kind of environments where your panel door seal has been compromised for six months and nobody noticed. Emerson’s qualification testing for this module covers continuous vibration at 0.5 g across 10–500 Hz — the kind of background shake you get from a compressor skid or a milling floor. Thermal cycling tests run from –20 °C storage to 70 °C operating, well beyond the rated 0–60 °C envelope, to ensure the solder joints and optical isolators do not fatigue under daily temperature swings.

Humidity ingress is addressed through conformal coating on the PCB assembly, which provides a barrier against condensation during plant startup after a cold shutdown. The optical isolation architecture means that a field-side wiring fault — a shorted cable, a ground fault, a lightning-induced transient — does not propagate to the backplane bus and take down adjacent modules. In high-EMI environments such as VFD-dense motor control centers, the SPMD1402’s shielded backplane connector and filtered I/O circuitry maintain signal integrity where cheaper third-party cards fail within months.

ATEX Zone 2 and FM Class I Division 2 approvals mean the module can be installed in panels located in areas with occasional explosive atmosphere presence — relevant for offshore platforms, solvent handling areas, and gas compression stations where the control room boundary is not always clearly defined.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch to DHL/FedEx sort facility
• DHL Express Worldwide: 2–4 business days to most of Europe, Middle East, and Southeast Asia; 3–5 days to North America and South America
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage (e.g., remote US industrial sites, Canadian oil sands region)
• Documentation package included: Commercial invoice, packing list, HS code 8537.10 declaration, and a certificate of origin — everything your customs broker needs to clear the shipment without delays
• Export control: The SPMD1402 is classified as EAR99 under US Export Administration Regulations. No export license is required for most destinations. We will flag any restricted-party screening issues before shipment
• Tracking: AWB number sent within 2 hours of dispatch. We monitor the shipment and proactively notify you of any customs holds

For projects requiring multiple units or phased delivery across several plant sites, contact us for a consolidated freight quote. Air freight on industrial automation parts is expensive — we can often reduce per-unit shipping cost significantly on orders of 3 or more modules.
