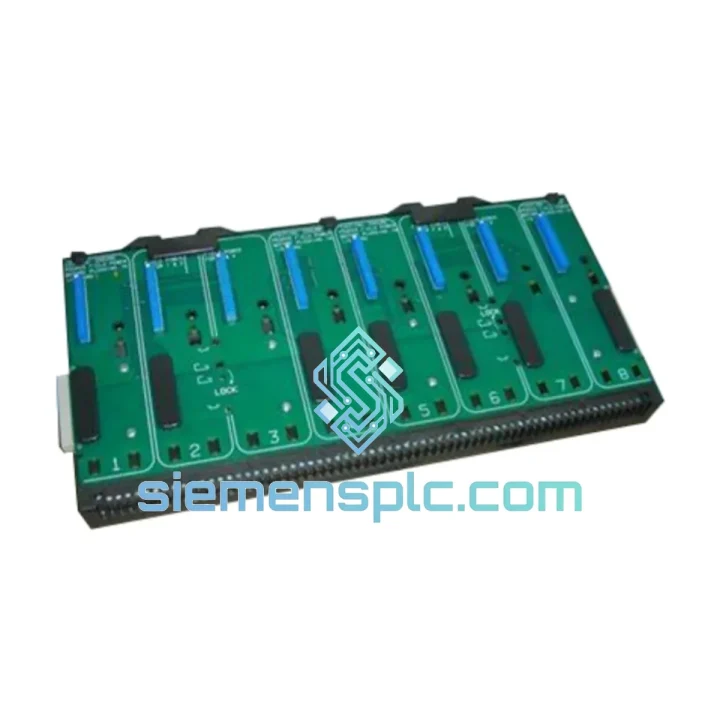

EMERSON VE4050S2K1C1 DCS I/O Module – DeltaV Series

EMERSON VE4050S2K1C1 — DeltaV Series Distributed I/O Module for Process Control Architectures

The EMERSON VE4050S2K1C1 is a carrier-mounted distributed I/O module engineered for deployment within the DeltaV Distributed Control System platform. Positioned at the field-interface boundary of a control loop, this module performs signal conditioning, analog-to-digital conversion, and channel-level diagnostics while maintaining deterministic data exchange with the DeltaV controller over the proprietary I/O bus. Its role is not peripheral — it is the primary data acquisition node between field instrumentation and the control execution engine, and its electrical integrity directly governs loop accuracy, alarm fidelity, and regulatory compliance in continuous process environments.

Deployed across oil and gas upstream separators, pharmaceutical batch reactors, chemical distillation columns, and power generation auxiliary systems, the VE4050S2K1C1 operates under the DeltaV I/O subsystem architecture where each module slot on the carrier communicates via a time-division multiplexed backplane bus. The controller polls each module at a configurable scan rate, and the module responds with channel data, status bytes, and self-diagnostic flags — all within a single bus transaction. This architecture eliminates the latency variability inherent in fieldbus-polled I/O and ensures that process variable updates arrive at the controller execution engine within a bounded, predictable window.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The VE4050S2K1C1 implements a multi-stage signal chain that begins at the field terminal block and terminates at the backplane bus interface. At the input stage, each channel passes through a passive RC filter network that attenuates high-frequency noise above the Nyquist frequency of the internal ADC sampling clock. This front-end filtering is critical in environments with variable-frequency drive (VFD) interference, where conducted emissions in the 2–20 kHz range can corrupt 4–20 mA loop signals if left unattenuated.

Galvanic isolation between the field-side circuitry and the logic-side backplane is achieved through optocoupler arrays rated for a minimum of 500 V DC isolation voltage per channel group. This isolation topology prevents ground loop currents — a common failure mode in multi-grounded field instrument installations — from propagating into the controller’s logic domain. The isolation barrier also provides a defined withstand level against transient overvoltages induced by nearby lightning strikes or switching of inductive loads on shared cable trays.

The module’s internal microcontroller manages channel scanning, linearization, and engineering-unit conversion in firmware. Linearization tables for thermocouple types (J, K, T, E, R, S, B) and RTD curves (Pt100, Pt1000, Ni100) are stored in non-volatile flash memory, ensuring that calibration data survives power cycling without requiring re-download from the controller. The firmware also implements a watchdog timer that forces the module into a defined fail-safe output state if the backplane communication heartbeat is lost for more than the configured timeout period — typically 100–500 ms depending on system configuration.

On the EMC design side, the PCB layout employs a split ground plane strategy: the analog ground and digital ground planes are joined at a single star point adjacent to the isolation barrier. This prevents high-frequency digital switching currents from coupling into the analog measurement ground reference, which would manifest as quantization noise or baseline drift on low-level millivolt inputs. The module’s metal housing provides additional shielding attenuation, and the backplane connector includes chassis ground pins that bond the module shield to the carrier’s structural ground rail.

System Integration Benefits

• Deterministic scan cycle: The TDM backplane bus guarantees that each module’s data is refreshed within a fixed controller scan period, eliminating jitter-induced process variable uncertainty in tight PID loops.
• Channel-level diagnostics: Each channel reports open-circuit, short-circuit, and out-of-range status flags independently, allowing the DeltaV AMS Device Manager to isolate faults to a single field instrument without interrupting adjacent channels.
• Hot-swap capability: The carrier architecture supports module replacement under power in non-SIL-rated applications, reducing mean time to repair (MTTR) during corrective maintenance without requiring a full system shutdown.
• Integrated HART pass-through: Where applicable, the module passes HART secondary variable data and device status to the DeltaV controller, enabling asset health monitoring without dedicated HART multiplexers.
• Firmware-resident linearization: Thermocouple and RTD linearization executes on the module’s local processor, offloading computation from the controller CPU and maintaining accuracy even during controller high-load conditions.
• Fail-safe output behavior: On loss of backplane communication, analog output channels revert to a configurable hold-last-value or defined safe-state value, preventing uncontrolled process excursions during controller restart sequences.
• Redundancy support: The VE4050S2K1C1 is compatible with DeltaV redundant I/O configurations where a secondary module mirrors the primary, enabling bumpless switchover with sub-100 ms transfer time on detection of a primary module fault.
• Scalable architecture: Modules can be added to existing carriers without reconfiguring the controller’s I/O database beyond the new channel assignments, supporting phased plant expansions with minimal engineering overhead.

Quality Assurance & Global Logistics

Every EMERSON VE4050S2K1C1 unit supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured incoming inspection protocol before dispatch. Visual inspection confirms the integrity of the module housing, front-panel connectors, and LED indicator lenses. Functional verification confirms that the module powers up correctly, communicates on the backplane bus, and reports no internal fault flags. Serial numbers are cross-referenced against manufacturer traceability records where available, and anti-counterfeit features — including holographic labels and OEM-specific marking patterns — are verified against reference samples.

Units are dispatched from our Xiamen, China logistics hub, which provides direct access to international express freight networks including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard transit times to major industrial hubs are 3–5 business days to Europe, 4–6 business days to North America, and 2–3 business days to Southeast Asia. For bulk procurement, sea freight consolidation is available with full export documentation including commercial invoice, packing list, certificate of conformance, and HS code declaration for customs clearance. All shipments are packed in ESD-safe anti-static bags within rigid foam-lined cartons to protect the module’s sensitive analog circuitry from electrostatic discharge and mechanical shock during transit.

A 12-month functional warranty covers all units against defects in materials and workmanship under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from stock where available to minimize plant downtime.
