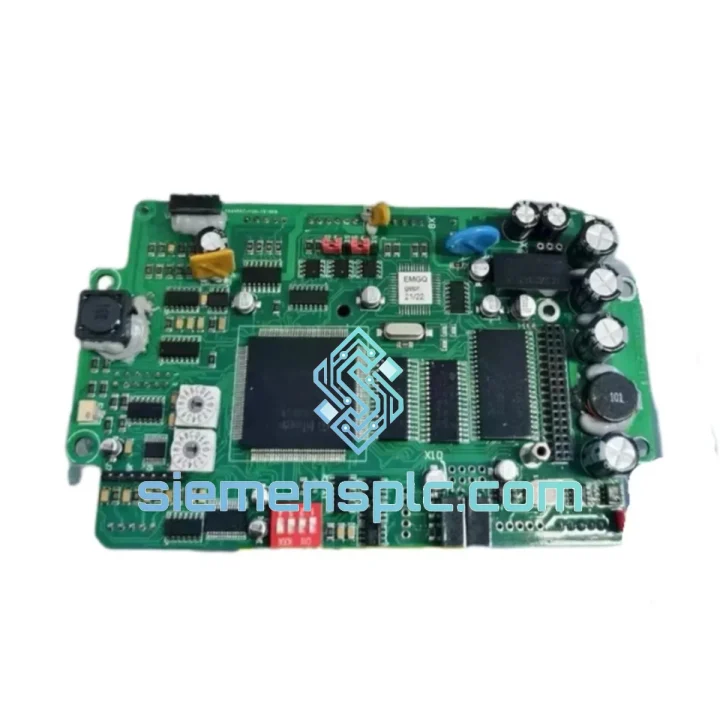

EMG IDC32-1.1 Drive Control Board

EMG IDC32-1.1 Drive Control Board – Every Hour of Downtime Costs You Money. We Ship Today.

Your drive tripped. The line is cold. Maintenance is standing by with nothing to do but watch the clock. The EMG IDC32-1.1 is the exact control board that brought your IDC Series drive back to life the last time — and we have it on the shelf right now in Xiamen, ready to move via DHL or FedEx within hours of your order confirmation. No lead-time games, no “check back in two weeks.” One call, one shipment, one restart.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on IDC Series drives, these are the failure patterns that keep showing up on the IDC32-1.1:

Common Fault Codes & Root Causes

• F001 / Overcurrent at startup: Nine times out of ten this is a gate driver signal corruption on the control board, not the IGBT module itself. Swap the IDC32-1.1 first before condemning the power stage — you’ll save yourself a much more expensive part.
• F007 / DC bus voltage fault: If the bus voltage is actually stable on your meter but the drive keeps tripping F007, the ADC reference circuit on the control board has drifted. Board replacement resolves this immediately.
• F012 / Communication timeout (fieldbus): Check firmware version on the replacement board before installation. IDC32-1.1 boards shipped before 2019 carry firmware V2.3x; post-2020 units run V3.1x. Mixing firmware generations with a newer operator panel causes persistent F012. Confirm your panel firmware before swapping.
• F021 / Temperature sensor open circuit: The NTC input on pin J3-14 is a known weak point after years of thermal cycling. If your thermistor checks out on the bench, the fault is on the board’s input conditioning circuit.
• Intermittent random trips with no repeatable fault code: Classic sign of electrolytic capacitor degradation on the 5 V logic rail. The board is at end of service life — replace, don’t repair.

Step-by-Step Replacement Procedure

1. Isolate the drive from mains supply and wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 VDC. Verify with a meter — do not skip this.
2. Photograph the existing board’s connector positions and any DIP switch settings before touching anything. The IDC32-1.1 has a 4-position DIP switch bank (SW1) on the top edge that configures the drive’s address on the internal CAN bus. Match these settings exactly on the replacement board.
3. Note the rotary address selector (if fitted to your drive variant) — this sets the axis number in multi-drive configurations. The replacement board ships with all switches in the OFF/0 position; you must set them to match your original before powering up.
4. Disconnect all ribbon cables and edge connectors. Label each one — the J2 and J4 connectors are physically identical in size but are not interchangeable.
5. Remove the four M3 standoff screws and lift the board clear. Ground yourself to the drive chassis before handling the replacement.
6. Install the new IDC32-1.1, reconnect all cables in reverse order, and verify the DIP switch positions one final time before closing the cabinet.
7. On first power-up, navigate to the drive’s parameter menu and confirm that P0.01 (control board firmware version) reads correctly. If the drive prompts for a factory reset, accept it — then reload your saved parameter set from backup.
8. Run the drive unloaded for 2 minutes and monitor for any fault codes before reconnecting the load.

Critical Note on Firmware Matching: If your site runs a networked configuration with a SCADA or PLC polling the drive via Modbus RTU or PROFIBUS, verify that the baud rate and node address parameters (P9.00–P9.03) are restored from your backup before going live. A mismatch here will cause the PLC to flag a communication fault and potentially trigger an E-stop on the wider line.

Reliability in Harsh Conditions

The IDC32-1.1 was not designed for a climate-controlled server room. It was built for the floor — and the floor is unforgiving.

EMG’s IDC Series control boards are qualified to withstand continuous vibration up to 0.5 g across the 10–150 Hz spectrum, which covers the resonance frequencies of most motor-driven machinery. The PCB uses conformal coating on critical signal traces to resist moisture ingress in environments where humidity swings are routine — think paper mills, food processing lines, and coastal installations where salt-laden air is a daily reality.

Thermal management on the IDC32-1.1 is handled through a combination of low-power component selection and strategic copper pours on the inner PCB layers, keeping the logic supply regulators well within their derating curves even when the drive cabinet ambient hits 50 °C during a summer production peak. The board’s electrolytic capacitors are rated for 105 °C, giving a meaningful service life margin over the 85 °C-rated components found on lower-cost alternatives.

Every unit we ship from our Xiamen warehouse has been stored in climate-controlled conditions with anti-static packaging and desiccant. We do not pull boards from open shelving. If a unit has been on the shelf for more than 18 months, it goes through a pre-shipment functional check before it leaves the building.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is what the logistics chain looks like from the moment you confirm your order:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handover to DHL/FedEx courier.
• DHL Express Worldwide: Xiamen → Europe (Germany, UK, Netherlands) typically 2–3 business days. Southeast Asia 1–2 business days. North America 3–4 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage (Middle East, South America, parts of Africa).
• Tracking: AWB number sent to your email within 2 hours of dispatch. Real-time tracking link included.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for customs clearance. HS Code 8537.10 declared. We have zero tolerance for misdeclaration.
• Emergency freight: For genuine production-critical situations, contact us directly on WhatsApp. We have handled same-day charter courier arrangements for customers facing extended line shutdowns — ask us what is possible.

We ship to over 60 countries. If your destination has import restrictions on industrial electronics, tell us upfront — we will advise on the correct documentation before the shipment moves, not after it gets held at customs.
