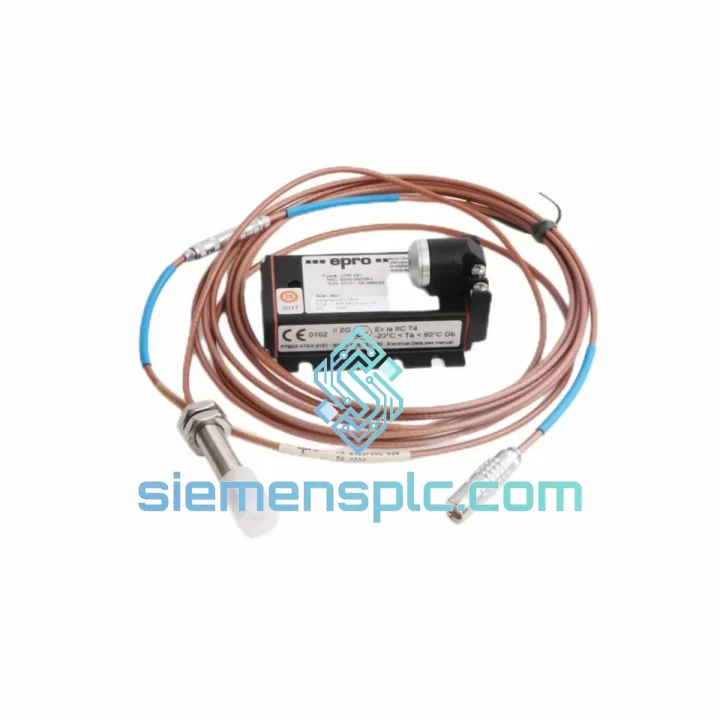

EPRO PR6423/002-030 CON021 Eddy Current Proximity Probe – PR6423 Series

EPRO PR6423/002-030 CON021 — 8 mm Eddy Current Proximity Probe for Shaft Displacement and Radial Vibration Monitoring

The EPRO PR6423/002-030 CON021 is a precision non-contact displacement transducer designed for continuous shaft radial vibration and position monitoring in critical rotating machinery. Operating on the eddy current induction principle, the probe generates a high-frequency electromagnetic field at approximately 1 MHz. When a conductive target surface enters the field, induced eddy currents load the internal oscillator circuit, producing a gap-proportional DC voltage output that is linear across the calibrated measurement range. This physical mechanism delivers sub-micron resolution without any mechanical contact, making the sensor inherently immune to wear and suitable for indefinite continuous duty cycles in turbomachinery protection systems.

The PR6423/002-030 CON021 is the field sensing element in a three-component measurement chain: probe, extension cable, and signal conditioning driver. The CON021 connector interface links the probe to the driver module, which supplies –24 VDC excitation, demodulates the oscillator signal, and outputs a buffered –2 VDC to –18 VDC analog signal proportional to the air gap. The complete chain must be treated as a calibrated matched set; substituting individual components from different serial batches introduces sensitivity offset and requires recalibration against a reference target of AISI 4140 steel (μr ≈ 40). For non-standard shaft materials such as 316L stainless steel or titanium alloys, material correction factors must be applied or a dedicated calibration performed.

The probe is fully signal-compatible with Bently Nevada 3300 XL 8 mm proximity probes and integrates directly into Bently Nevada 3500 series monitoring racks — including the 3500/40M Proximitor Monitor — without requiring rack reconfiguration or sensitivity rescaling, provided the driver output range matches the monitor input specification. This compatibility makes the PR6423/002-030 CON021 the preferred replacement transducer for brownfield turbomachinery upgrades and OEM maintenance programs where existing Bently Nevada infrastructure is retained.

Typical deployment environments include steam and gas turbines, centrifugal compressors, large centrifugal pumps, gearboxes, hydro turbines, and electric motors above 1 MW, where API 670 (5th Edition) mandates continuous shaft radial vibration monitoring. The probe’s IP67-rated body withstands oil mist, coolant splash, and high-pressure wash-down, while the –50 °C to +120 °C probe temperature rating accommodates bearing housing and turbine casing installations without thermal derating.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6423/002-030 CON021 probe body houses a precision wound coil embedded in a thermally stable ceramic former, encapsulated in a stainless steel housing with a PEEK (polyether ether ketone) tip face. The coil forms the inductive element of a Colpitts-type LC oscillator circuit integrated within the probe body. This architecture places the oscillator at the measurement point rather than in a remote driver, minimizing transmission line effects and preserving signal integrity across the 1.0 m integral cable run.

EMC performance is achieved through a combination of coaxial cable shielding with drain wire grounding at the driver end only (single-point ground to prevent shield current loops), and the inherently narrow-band nature of the 1 MHz oscillator, which rejects broadband electromagnetic interference from variable-frequency drives, switchgear, and high-current bus bars common in turbomachinery environments. The probe housing acts as a Faraday shield for the coil assembly, attenuating capacitively coupled interference from adjacent conductors.

Thermal drift compensation is addressed through the matched thermal coefficient of the coil former material and the calibration algorithm embedded in the CON021 driver. Over the –50 °C to +120 °C probe range, sensitivity variation is held within ±0.5% of nominal, which is critical for thrust position monitoring where a 25 µm position error can trigger a spurious trip in a tightly configured API 670 protection loop.

The IP67 sealing is achieved via a dual O-ring arrangement at the cable entry point and a hermetic epoxy fill of the probe body cavity. This construction prevents ingress of bearing oil, steam condensate, and cleaning solvents without requiring periodic resealing maintenance. The CON021 connector employs a bayonet-lock mechanism with a secondary locking collar, rated for 500 mating cycles, which prevents accidental disconnection under vibration loads up to 20 g broadband.

System Integration Benefits

• Direct API 670 Compliance: The probe meets the mandatory transducer specification for radial vibration channels in API 670 (5th Edition) machinery protection systems, eliminating the need for additional qualification testing during plant commissioning audits.
• Zero-Reconfiguration BN Rack Integration: Signal output (–2 to –18 VDC at 7.87 V/mm) matches Bently Nevada 3500/40M and 3300 XL monitor input specifications exactly, allowing direct substitution without altering alarm setpoints, scale factors, or I/O module configuration in the DCS or safety instrumented system.
• DC-to-10 kHz Bandwidth for Multi-Parameter Capture: A single installed probe simultaneously captures static shaft centerline position (DC component), synchronous 1× and 2× vibration, sub-synchronous instability (oil whirl/whip), and high-frequency structural resonances — reducing the sensor count per bearing journal compared to narrowband alternatives.
• Deterministic Analog Output for SIS Integration: The –2 to –18 VDC analog output is inherently deterministic with no protocol stack latency, making it directly compatible with IEC 61511-compliant safety instrumented systems where response time budgets are constrained to <100 ms for turbine overspeed or thrust trip functions.
• Diagnostic Transparency via Gap Voltage Monitoring: The raw DC gap voltage is accessible at the driver output terminal, enabling maintenance engineers to trend shaft centerline migration over time without interrupting the protection channel — a key diagnostic indicator for bearing wear progression and alignment shift.
• Non-Intrusive Installation: The probe mounts in a standard 3/8-24 UNF or M10×1 threaded boss on the bearing housing, requiring no shaft modification. Gap setting is performed with a digital voltmeter against the driver output, with no special tooling required beyond a standard probe holder fixture.
• Matched-Set Traceability for Audit Compliance: Each probe, cable, and driver set is serialized and calibration-matched at the factory. This traceability chain satisfies the documentation requirements of ISO 55001 asset management audits and ASME PTC 19.22 instrumentation standards.
• Reduced Spare Parts Complexity: Full signal compatibility with the Bently Nevada 330101 8 mm probe family means a single PR6423/002-030 CON021 spare can cover both EPRO and BN-equipped machines in a mixed-fleet plant, reducing the number of line items in the critical spare parts inventory.

Quality Assurance & Global Logistics

Every EPRO PR6423/002-030 CON021 unit supplied by siemensplc.com is sourced from verified industrial distribution channels with full manufacturer traceability. Prior to dispatch from our Xiamen, China facility, each probe undergoes a structured pre-shipment inspection protocol: visual examination of the probe tip face and housing for mechanical damage, connector mating force and locking collar function check, cable continuity and shield integrity measurement, and dimensional verification of the threaded mounting section against the EPRO drawing tolerance.

Calibration certificates, CE declarations of conformity, and material test reports are available upon request for each serialized unit. Batch records and serial number logs are retained for a minimum of five years to support plant maintenance documentation requirements.

Packaging is engineered for international air freight: the probe tip is protected by a machined aluminum cap, the assembly is seated in a custom-cut anti-static foam insert, sealed in a moisture-barrier polyethylene bag with desiccant, and enclosed in a rigid double-wall corrugated carton rated for 50 kg drop test per ISTA 2A. This packaging specification ensures the probe arrives at the installation site in calibration-valid condition regardless of transit handling.

Standard in-stock units ship within 1–3 business days via DHL Express or FedEx International Priority from Xiamen, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Full export documentation — commercial invoice, packing list, certificate of origin, and HS Code 9031.80 classification — is provided with every international shipment. ATEX-rated variants and factory-matched three-component sets (probe + extension cable + driver) are available with a 10–15 business day lead time.
