EPRO PR6423/01R-040 CON021: Non-Contact Displacement Measurement in Turbomachinery Protection Loops

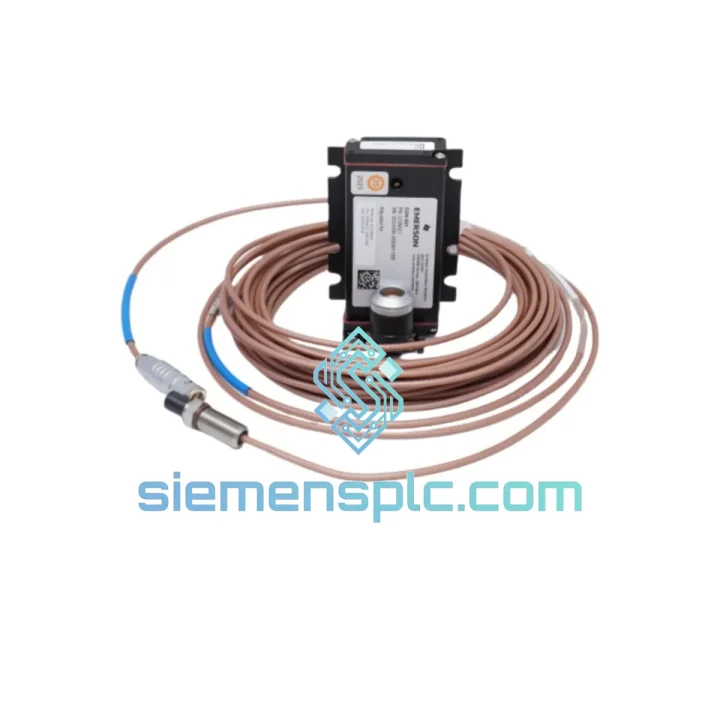

The EPRO PR6423/01R-040 paired with the CON021 signal conditioning converter constitutes a complete eddy current proximity measurement chain engineered for continuous, non-contact shaft displacement and radial vibration monitoring in rotating machinery. This system operates on the principle of electromagnetic induction: the probe tip generates a high-frequency oscillating magnetic field (typically 1–2 MHz carrier frequency), and any conductive target entering the field induces eddy currents that load the oscillator circuit. The CON021 demodulates this impedance variation into a calibrated DC voltage or 4–20 mA output proportional to the air gap between probe tip and target surface.

Within a turbomachinery protection architecture, this sensor chain occupies the front-end signal acquisition layer. Its output feeds directly into machinery protection monitors such as the EPRO MMS 6000 series or Bently Nevada 3500 series, which execute alarm and trip logic per API 670 requirements. The reverse-polarity designation (/01R) means the output voltage decreases as the gap increases — a configuration required by certain monitor input cards and reverse-mount turbine probe installations. Misidentifying polarity at commissioning introduces a sign inversion in the protection logic, which is a critical configuration error; the /01R suffix must be matched precisely to the monitor channel polarity setting.

The CON021 conditioner provides the oscillator drive, demodulation, and output scaling functions in a compact DIN-rail or panel-mount enclosure. It accepts the probe signal via a coaxial extension cable and delivers a buffered, low-impedance analog output suitable for direct connection to PLC analog input modules (e.g., Siemens ET 200SP AI modules, ABB S800 I/O, Rockwell 1756-IF16) without additional signal conditioning. The system’s 0–40 mm nominal measurement range, combined with a sensitivity of approximately 8 mV/µm, yields a full-scale output span that covers the displacement ranges encountered in most industrial turbine and compressor shaft monitoring applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6423/01R-040 probe tip houses a precision-wound coil embedded in a thermally stable ceramic former. The coil forms the inductive element of a Colpitts-type LC oscillator within the CON021. At the nominal operating gap (typically 1.0–1.5 mm for the calibrated linear region), the oscillator runs at its design frequency with a defined tank circuit Q-factor. As the conductive target approaches, eddy currents induced on its surface act as a resistive load reflected back into the coil, reducing the effective Q and shifting the oscillator amplitude. The CON021’s demodulator extracts this amplitude envelope and maps it to the calibrated output span via a precision gain stage.

EMC Design: The coaxial cable between probe and conditioner is a critical EMC element. The cable’s outer shield is grounded at the CON021 end only (single-point grounding) to prevent shield current loops that would introduce 50/60 Hz interference into the high-impedance oscillator input. The probe body’s stainless steel housing provides additional electrostatic shielding of the coil assembly. The CON021 incorporates input filtering with a cutoff frequency above the maximum mechanical vibration frequency of interest (typically 10 kHz) but well below the carrier frequency, ensuring that mechanical vibration signals are passed while RF interference is attenuated.

Thermal Stability: The ceramic coil former has a coefficient of thermal expansion (CTE) closely matched to the coil wire, minimizing sensitivity drift across the −40 °C to +120 °C operating range. The CON021’s gain stage uses thin-film resistors with low temperature coefficients (≤ 25 ppm/°C) to maintain output accuracy without field recalibration across seasonal ambient temperature variations in outdoor or semi-outdoor installations.

Reverse Polarity Architecture (/01R): The /01R variant achieves reverse polarity through an inverting amplifier stage in the CON021 output section rather than by rewiring the probe coil. This means the probe itself is physically identical to the /00R variant; the polarity distinction is implemented in firmware-configurable gain sign or a hardware jumper on the CON021 output board. This design allows a single probe SKU to serve both polarity requirements with only a conditioner configuration change — a significant advantage for spare parts inventory management in multi-unit installations.

System Integration Benefits

• Direct PLC Analog Input Compatibility: The 4–20 mA output from the CON021 connects directly to standard IEC 61131-compliant analog input modules without signal conditioning intermediaries, reducing wiring complexity and potential failure points in the signal chain.
• API 670 Front-End Compliance: The probe-conditioner system meets the transducer performance requirements of API 670 (5th edition) for radial vibration and position measurement, enabling its use as the sensing front-end in certified machinery protection systems without additional qualification testing.
• Deterministic Response Time: The CON021’s analog output has a response bandwidth of DC to ≥ 10 kHz (−3 dB), ensuring that high-frequency vibration events (e.g., blade passing frequencies in centrifugal compressors) are captured without phase distortion that would corrupt trip timing calculations in the downstream monitor.
• Non-Contact Operation Eliminates Wear: Unlike contact-type displacement transducers, the eddy current principle imposes zero mechanical load on the rotating shaft. There is no friction, no wear debris, and no risk of probe contact damage during rotor excursions, making this system suitable for continuous 24/7 operation across multi-year maintenance intervals.
• Diagnostic Transparency via Gap Voltage: The CON021 provides a buffered gap voltage test point accessible without interrupting the main output loop. Maintenance technicians can verify probe-to-target gap in real time using a standard multimeter, enabling predictive maintenance checks without process shutdown.
• Multi-Monitor Compatibility: The standardized output signal (4–20 mA or ±10 V) is accepted by EPRO MMS 6000, Bently Nevada 3500, Emerson AMS 6500, and generic DCS analog input cards, providing flexibility to integrate into heterogeneous control architectures without sensor replacement during system upgrades.
• Configurable Alarm Setpoints at Monitor Level: Because the sensor delivers a linear analog output, alarm and trip thresholds are configured entirely in the downstream monitor or PLC — not in the sensor itself. This allows setpoint adjustments during commissioning or process changes without any hardware modification to the sensor chain.
• Redundant Measurement Architectures: Two PR6423/01R-040 probes can be mounted 90° apart on the same shaft journal (X-Y configuration) to provide full orbital analysis. The CON021 conditioners for each axis operate independently, so a single conditioner failure does not compromise the orthogonal measurement channel, supporting 1oo2 or 2oo2 voting logic in the protection system.

Quality Assurance & Global Logistics

Every EPRO PR6423/01R-040 CON021 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to the original equipment manufacturer. Incoming inspection at our Xiamen facility covers coil continuity (DC resistance within ±2% of nominal), insulation resistance (≥ 100 MΩ at 500 V DC between coil and housing), and functional sensitivity verification against a calibrated reference target. Units that do not meet these acceptance criteria are quarantined and returned to the supply chain — no exceptions.

Documentation available upon request includes Certificate of Conformance (CoC), factory test reports, and where applicable, original EPRO calibration data sheets. For projects requiring third-party calibration certificates traceable to national standards (CNAS, PTB, NIST), this service is available at additional cost with a stated turnaround time.

Logistics from Xiamen, China to global destinations are handled via DHL Express, FedEx International Priority, and UCP air freight for time-critical orders. Standard in-stock orders are dispatched within 1–3 business days of payment confirmation. Export documentation (commercial invoice, packing list, HS Code 9031.80 classification) is prepared in compliance with Chinese customs regulations and destination country import requirements. For orders to the EU, US, Southeast Asia, and the Middle East, we maintain established freight lanes with typical transit times of 3–7 business days door-to-door.

All units are shipped in anti-static packaging with foam cushioning to protect the probe coil assembly and cable termination from transit shock. The 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit at our facility.
