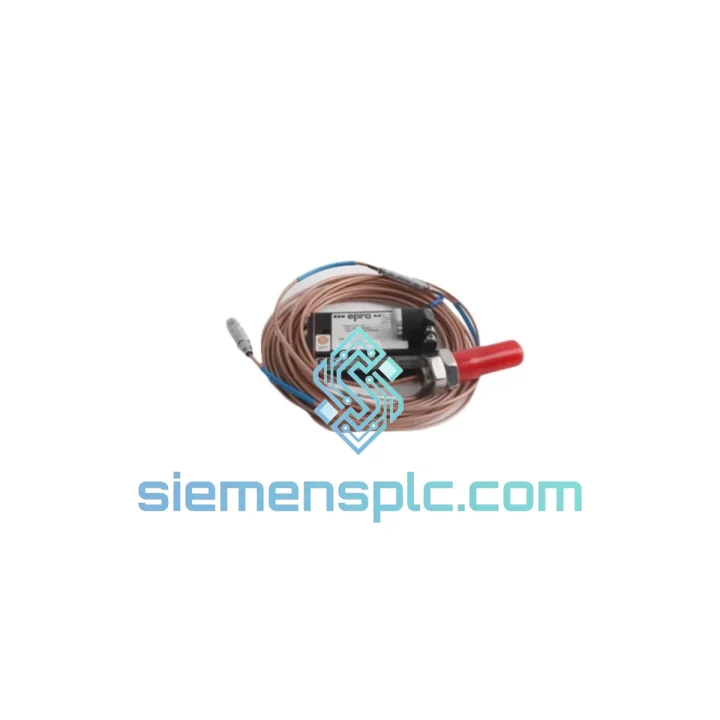

EPRO PR6424/000-010 CON021 Eddy Current Sensor – CON021 Series

EPRO PR6424/000-010 CON021 — Non-Contact Displacement Transducer for Turbomachinery Protection

The EPRO PR6424/000-010 CON021 is a factory-matched eddy current proximity transducer engineered for continuous-duty shaft displacement measurement in rotating machinery protection systems. Operating on the principle of electromagnetic induction, the sensor generates a high-frequency oscillating magnetic field at its tip. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and producing a proportional DC voltage output. This output is conditioned by the paired CON021 driver to deliver a linear, low-noise signal directly usable by machinery protection monitors and DCS/PLC analog input cards.

Unlike piezoelectric accelerometers, which measure dynamic vibration, the PR6424/000-010 CON021 measures absolute shaft position — both static displacement and dynamic orbital motion — making it the correct transducer for radial vibration, axial position, and differential expansion measurements as defined in API 670. The sensor tip diameter and coil geometry are optimized for an 8 mm nominal measurement range against AISI 4140 steel targets, with a sensitivity of 8 mV/µm providing sufficient resolution to detect sub-micron shaft excursions at rated speed.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator Circuit and Coil Geometry: The PR6424/000-010 employs a Colpitts-type LC oscillator integrated within the sensor tip housing. The coil is wound on a ferrite core and encapsulated in a thermally stable epoxy compound rated to 120 °C. The oscillation frequency is nominally 1 MHz; as the target gap changes, the effective inductance of the coil shifts, altering the oscillator amplitude. The CON021 driver demodulates this amplitude variation and outputs a linearized DC voltage. The matched-set calibration between sensor and driver is performed at the factory across the full temperature range, eliminating the need for field calibration when replacing a like-for-like unit.

EMC Design: The coaxial cable between sensor and CON021 driver is a critical element of the measurement chain. The cable’s characteristic impedance is matched to the sensor coil impedance to suppress standing waves and minimize susceptibility to radiated RF interference. The driver housing is constructed from die-cast aluminum with internal copper shielding, achieving >40 dB attenuation of common-mode noise in the 10 kHz – 1 GHz band. This is particularly relevant in environments with variable-frequency drives (VFDs) and high-current bus bars, where conducted and radiated EMI can corrupt displacement signals in competing sensor designs.

Thermal Drift Compensation: The sensor coil exhibits a temperature coefficient of inductance (TCI) of approximately +50 ppm/°C for the ferrite core material used. EPRO compensates for this by incorporating a negative-temperature-coefficient (NTC) thermistor network within the CON021 driver circuit. The thermistor network introduces a complementary gain correction that holds overall system sensitivity within ±1% across the –40 °C to +85 °C driver operating range. This is a hardware-level compensation — no software correction is required in the monitoring system.

Galvanic Isolation: The CON021 driver provides 500 V RMS galvanic isolation between the sensor loop and the monitoring system output terminals. This isolation prevents ground loop currents — a common source of low-frequency noise in large rotating machinery installations where multiple grounding points exist across the machine train — from corrupting the displacement signal. The isolation barrier is implemented using a transformer-coupled output stage rather than optocoupler-based isolation, preserving the DC-to-10 kHz bandwidth without the frequency roll-off characteristic of optocoupler designs.

System Integration Benefits

• Deterministic Signal Latency: The analog output of the CON021 driver has a propagation delay of <1 µs from gap change to output voltage change, ensuring that the monitoring system receives displacement data with no software-induced latency. This is essential for overspeed and high-vibration trip functions where response time directly determines whether a machine is protected.
• Direct API 670 Compliance: The PR6424/000-010 CON021 is designed and tested to meet API 670 (5th Edition) requirements for proximity transducer systems, including sensitivity tolerance, linearity, temperature performance, and electrical noise immunity. This eliminates the engineering effort required to qualify a non-standard sensor for use in a protection system.
• Plug-Compatible with EPRO MMS 6000 Series: The sensor output is directly compatible with EPRO MMS 6350, MMS 6823, and MMS 6110 monitor cards without signal conditioning adapters. The –24 VDC output range maps directly to the monitor card input range, preserving full ADC resolution.
• Diagnostic Transparency via Gap Voltage Monitoring: The CON021 driver output voltage at zero vibration (static gap voltage) provides a direct, measurable indicator of sensor-to-shaft gap. Monitoring systems can continuously compare this static voltage against the commissioned gap setpoint, generating an alert if the sensor has moved due to mechanical loosening or thermal growth — a diagnostic capability not available with contact-type sensors.
• Orbit Plot Capability: When two PR6424/000-010 CON021 sensors are installed at 90° to each other on the same bearing plane, the X-Y displacement signals can be combined in the monitoring system to generate shaft orbit plots. Orbit analysis provides direct visualization of rotor dynamic behavior — including sub-synchronous instability, oil whirl, and rub events — that cannot be detected from single-channel vibration amplitude alone.
• Compatibility with Redundant Protection Architectures: The sensor’s analog output can be wired to multiple monitor inputs simultaneously (with appropriate impedance matching), supporting 1oo2 and 2oo3 voting logic architectures required in SIL 2/3 safety instrumented systems without additional signal splitters.
• Minimal Maintenance Footprint: The absence of moving parts, contact surfaces, or consumable elements means the sensor has no scheduled maintenance interval. The only periodic check required is gap verification during planned outages, which can be performed with a standard DC voltmeter without removing the sensor from the machine.
• Broad Monitor Platform Compatibility: With appropriate signal conditioning, the CON021 output is compatible with Bently Nevada 3500 Series, Emerson AMS 6500, and custom DCS/PLC analog input modules operating in the –24 VDC input range, providing flexibility for mixed-vendor monitoring architectures.

Quality Assurance & Global Logistics

Every EPRO PR6424/000-010 CON021 unit supplied by siemensplc.com is sourced through verified industrial supply channels with full traceability from manufacturer to end-user. Each unit undergoes a pre-shipment inspection protocol that includes visual examination of the sensor tip, coil housing, and connector assembly for mechanical damage; label and part number verification against the purchase order; and packaging integrity check to ensure the matched sensor-driver calibration is not compromised during transit.

A Certificate of Conformance (CoC) is provided as standard with every shipment. OEM factory test reports are available upon request for critical applications in power generation, oil & gas, and petrochemical facilities. All units are shipped with original manufacturer packaging and desiccant to prevent moisture ingress during international transit.

Logistics operations are based in Xiamen, China, with direct access to international freight forwarding services via Xiamen Gaoqi International Airport and Xiamen Port. Standard orders are dispatched within 3–5 business days. Expedited DHL Express and FedEx International Priority options are available for urgent requirements, with transit times of 2–4 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East. Export documentation including commercial invoice, packing list, and certificate of origin is prepared in compliance with destination country import requirements.
