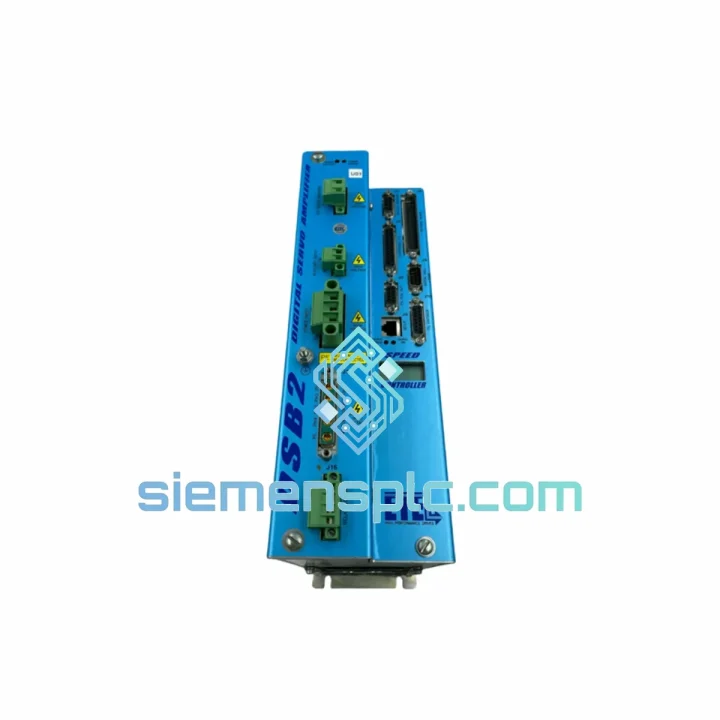

ETEL DSB2S154-211E-000H Servo Drive

DSB2S154-211E-000H: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your line is down. Every hour costs real money — lost throughput, idle labor, delayed shipments. The ETEL DSB2S154-211E-000H is in stock at our Xiamen warehouse right now. We’ve shipped this exact module to semiconductor fabs, CMM manufacturers, and laser processing OEMs across Asia, Europe, and North America. Same-day dispatch is available for orders confirmed before 14:00 CST. Stop reading datasheets and start the recovery.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the module: Connect to the ETEL DPMAC or your EtherCAT master and capture the active fault register. The DSB2S154 surfaces fault codes via the MACRO bus status word — log them before power-down. Common codes that point directly to driver failure (not motor or encoder):

• Fault 0x0021 — Power Stage Overcurrent: IGBT bridge failure. Not recoverable by reset. Module replacement required. Verify DC bus voltage is within spec before installing the replacement — a sagging bus will kill the new unit on first enable.
• Fault 0x0034 — Internal Temperature Limit: Check cabinet airflow first. If ambient is normal and the fault persists within 60 seconds of power-on, the internal thermal sensor or power stage is degraded. Replace the driver.
• Fault 0x0012 — Encoder Feedback Loss: Before condemning the driver, swap the encoder cable and verify SinCos signal amplitude at the driver input (1 Vpp nominal). If signal is clean and fault persists, the driver’s feedback receiver circuit has failed.
• Fault 0x0050 — MACRO Bus Communication Error: Reseat the MACRO bus connector first. If the fault clears and returns intermittently, inspect the cable shield termination. Persistent fault with a known-good cable = driver FPGA or communication IC failure.

Replacement procedure — field-tested sequence:

1. Disable the axis in software and confirm STO is active (check STO LED on driver front panel).
2. Discharge the DC bus — wait minimum 5 minutes after AC power removal. Measure bus capacitors with a DMM before touching power terminals.
3. Document all connector positions with a phone photo before disconnecting. The DSB2S154 has multiple identical-looking connectors — mislabeling is the #1 cause of re-commissioning delays.
4. Note the rotary address switch setting on the failed unit. The replacement must be set to the identical node address before power-on. On multi-axis systems, address conflicts cause the entire MACRO ring to drop.
5. Transfer the motor parameter file from the DPMAC to the new driver via the ETEL DriveManager software before enabling the axis. Do not attempt to auto-tune on a live machine — use the saved parameter set.
6. On first enable, command a slow jog (5% velocity) and monitor following error. If following error exceeds threshold immediately, check encoder phasing — the DSB2S154 is sensitive to A/B channel swap on SinCos encoders.
7. Run the ETEL built-in current loop test before returning the axis to production. This validates the power stage without requiring mechanical motion.

Configuration checklist for the DSB2S154-211E-000H specifically:

• Rotary node address switch: match to failed unit’s setting (visible on PCB edge, 0–F hex)
• Motor parameter file: load via DriveManager — do not rely on factory defaults
• Firmware version: DSB2S154 firmware is not interchangeable with DSB2P or DSB2+ variants — confirm version compatibility with your DPMAC firmware before flashing
• STO wiring: verify 24 VDC STO input is present before enabling — the driver will not power the output stage without it
• Encoder cable shield: must be grounded at the driver end only — floating shields cause intermittent feedback faults under vibration

Reliability in Harsh Conditions

The DSB2S154-211E-000H is not a commercial-grade drive dressed up for industrial use. ETEL designed the DSB2 platform from the ground up for environments that destroy lesser hardware:

• Vibration: The DSB2S154 PCB assembly uses conformal coating and mechanically secured connectors. In semiconductor fab environments where granite isolation tables still transmit floor vibration at 5–50 Hz, this driver maintains stable encoder signal processing without false fault trips. Solder joint fatigue — the silent killer of cheaper drives — is addressed through ETEL’s manufacturing process controls.
• Thermal cycling: Semiconductor fabs run 24/7 with controlled ambient, but laser processing and CMM environments see significant thermal swings during maintenance windows. The DSB2S154’s power stage is rated for continuous operation at elevated ambient temperatures. The internal thermal model tracks junction temperature in real time — you get a warning fault before a destructive shutdown.
• EMI: High-current servo drives are their own worst EMI source. The DSB2S154 incorporates internal filtering and shielded signal paths. In multi-axis cabinets where six or more drives share a common DC bus, this matters — cross-axis interference is a real failure mode on poorly designed drives. ETEL’s architecture keeps it contained.
• Humidity and contamination: The conformal-coated PCB handles the humidity levels typical of Asian manufacturing environments (up to 85% RH non-condensing). For installations in cleanrooms or controlled environments, the sealed connector system prevents particulate ingress into signal circuits.

Units supplied from our Xiamen stock are stored in climate-controlled conditions with ESD protection. Every unit ships in anti-static packaging with moisture barrier and foam-lined export carton. We do not ship bare boards in bubble wrap.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub for South China exports. This is not a coincidence — it is the reason we can offer same-day dispatch to global destinations.

• Order cutoff: 14:00 CST for same-day dispatch. Orders confirmed after cutoff ship next business day.
• DHL Express Worldwide: 2–4 business days to Europe, North America, Japan, South Korea, Southeast Asia. Tracking active within 4 hours of pickup.
• FedEx International Priority: Available for US, Canada, and Mexico destinations. Typically 2–3 business days door-to-door.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. EUR.1, Form A, and other preferential origin certificates available on request — specify at order time.
• Customs classification: DSB2S154-211E-000H ships under HS 8537.10 (boards, panels, consoles for electric control). We pre-declare correctly — no customs holds from misclassification.
• Insurance: All shipments above USD 500 are insured by default. Full replacement value coverage for loss or damage in transit.
• Emergency freight: For critical shutdowns requiring next-flight-out service, contact us directly on WhatsApp. We have handled AOG-equivalent industrial emergencies with 18-hour door-to-door delivery to Frankfurt and Singapore.

We understand that a tracking number is not the same as a solution. Our logistics team monitors every shipment through customs clearance and flags delays proactively. You will not be chasing us for updates.
