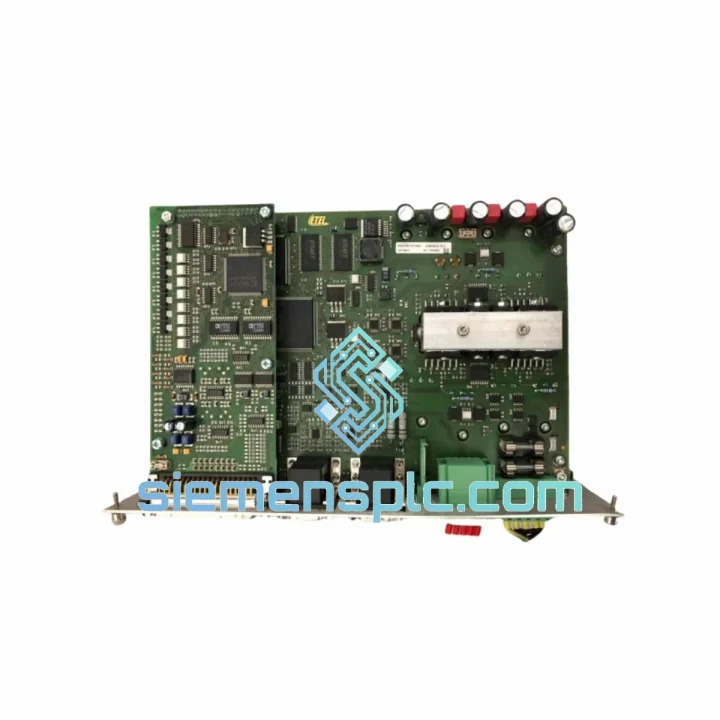

ETEL DSCDL332-131D-000A Servo Drive Control Board

ETEL DSCDL332-131D-000A: Stop the Clock on Your Downtime — Ship Within 24 Hours

Your servo axis is dead. The line is stopped. Every hour of unplanned downtime on a CNC machining center, semiconductor stage, or robotic cell costs real money — and the clock is running. The ETEL DSCDL332-131D-000A servo drive control board is in stock at our Xiamen warehouse right now. We have processed emergency replacements for this exact module for customers in Germany, South Korea, Taiwan, and the United States. We know the failure modes. We know the swap procedure. Let’s get your machine back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of DSCDL332-131D-000A field swaps, here are the failure patterns and replacement pitfalls that actually matter:

Common Failure Signatures

• Fault Code F-0x0210 / Drive Communication Loss: The EtherCAT slave drops off the network during homing or mid-cycle. Nine times out of ten this is the control board’s FPGA communication layer failing under thermal stress — not a cable issue. Swap the board before chasing the network topology.
• Fault Code F-0x0410 / Current Loop Saturation: The axis trips on overcurrent at low speeds with no mechanical load change. This points to a degraded current sense circuit on the control board. The power stage is usually fine.
• Intermittent Encoder Loss (F-0x0310): If the fault clears on power cycle but returns after 20–40 minutes of operation, suspect the EnDat receiver circuit on the board aging out under heat. Replace the board, not the encoder cable.
• No Drive Ready Signal on 24 VDC Logic Power-Up: Board fails to initialize. LED status shows no activity or stuck in boot state. This is a hard board failure — the DSP or boot ROM has failed. No firmware reflash will recover it.

Replacement Procedure — Field Notes

1. Document before you touch anything. Photograph the existing board’s DIP switch positions, jumper settings, and any handwritten labels. The DSCDL332-131D-000A has configuration switches that set axis address and encoder protocol mode. These are not stored in the drive chassis — they live on the board itself.
2. Power down completely. Isolate 24 VDC logic supply AND the DC bus. Capacitor discharge on the power stage takes 3–5 minutes. Do not rush this step.
3. Note the board revision code. Check the PCB silkscreen for the hardware revision (e.g., Rev. D, Rev. E). The -131D suffix in the part number encodes a specific hardware configuration. Confirm your replacement board carries the same revision or a confirmed compatible successor revision before installation.
4. Transfer DIP switch settings exactly. The axis node address switches must match the original board. If you are replacing a board in a multi-axis system and the address is wrong, the EtherCAT master will enumerate the wrong axis and you will get a topology mismatch fault at startup.
5. Firmware version check. After installation, connect via the ETEL commissioning tool (IUC or equivalent) and verify the firmware version on the new board matches the version expected by your motion controller. A firmware mismatch between the control board and the drive chassis firmware will cause initialization faults. If the versions differ, perform a firmware update before enabling the drive.
6. Re-run the current loop auto-tuning. Even on a direct board swap, the current controller parameters stored in the drive chassis may need to be re-applied to the new board. Run the ETEL auto-tuning sequence before returning the axis to production.
7. Verify STO (Safe Torque Off) function. Before enabling the axis under load, confirm the STO input is correctly wired and the safety function is operational. A board swap is a maintenance event — your safety validation procedure applies.

Reliability in Harsh Conditions

The DSCDL332-131D-000A was not designed for a climate-controlled server room. ETEL builds these boards for the real world: semiconductor fabs with aggressive HVAC cycling, automotive body shops with weld spatter and vibration, and offshore inspection equipment with humidity levels that would kill consumer electronics in a week.

The board’s conformal coating protects the PCB against condensation and airborne contaminants. The component selection targets industrial temperature grades, not commercial. Connectors are rated for repeated mating cycles — relevant when you are doing quarterly preventive maintenance swaps. Vibration resistance meets IEC 60068-2-6 test profiles, which means the board can handle the resonance frequencies common in spindle-driven machine tools without solder joint fatigue over a multi-year service life.

Every unit we ship from Xiamen is inspected for physical damage, connector integrity, and — where test fixtures are available — bench-verified against ETEL drive system parameters. We do not ship boards that have visible corrosion, damaged traces, or missing components. If a unit does not pass our inspection, it does not leave the warehouse.

Global Express Logistics

Our Xiamen warehouse is positioned for fast export to every major industrial region. Here is how the process works from the moment you confirm your order:

• Same-Day Processing: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day. ESD-safe anti-static bag, foam-lined inner carton, double-wall outer carton — the packaging is engineered for the handling abuse of international air freight.
• Carrier Options: DHL Express (typical transit: 2–4 business days to Europe, 3–5 days to North America), FedEx International Priority (comparable transit, preferred for US Customs clearance speed), and UPS Worldwide Express for specific regional requirements.
• Export Documentation: Commercial invoice, packing list, and country of origin certificate are prepared for every shipment. For customers requiring ATA Carnet, CITES exemption letters, or specific HS code declarations, contact us before ordering and we will prepare the documentation in advance.
• Tracking: You receive a tracking number within 2 hours of carrier pickup. We monitor shipments actively and will contact you proactively if a customs hold or routing delay occurs.
• Emergency Freight: For genuine production-down situations, contact us via WhatsApp for same-day courier options and hand-carry arrangements to major hub airports.
