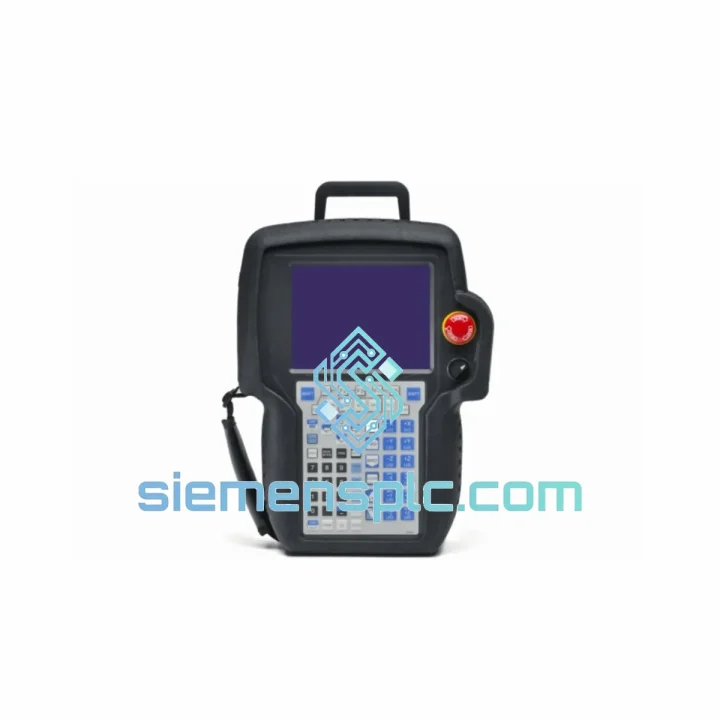

FANUC A05B-2301-C300 Teach Pendant – C-Series

FANUC A05B-2301-C300 — Operator Interface Architecture for C-Series Robot Control Loops

The FANUC A05B-2301-C300 is the dedicated teach pendant for FANUC C-Series robot controllers, including the C100, C102, C202, and the 2004-T364 chassis (A05B-2490-0171). Within a robot control loop, this pendant occupies the operator-interface layer of the system architecture: it is the sole physical device through which a technician can issue jog commands, define Cartesian and joint-space teach points, modify motion programs, and read real-time axis position feedback. Its role is not peripheral — without a functional teach pendant, the controller cannot be commissioned, re-taught after a fixture change, or diagnosed at the axis level during fault recovery.

Unlike generic HMI terminals, the A05B-2301-C300 communicates with the C-Series controller over a proprietary serial bus embedded in the pendant cable harness. This dedicated link carries both command data (key presses, E-Stop state, deadman switch state) and display data (axis positions, program listings, alarm codes) in a synchronous polling architecture. The controller firmware expects the pendant’s hardware handshake signals at fixed intervals; substituting an incompatible pendant will cause a pendant communication fault and lock the controller into a safe-stop state.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A05B-2301-C300 is built around three hardware subsystems that define its reliability in industrial environments:

1. Three-Position Enabling Device (Deadman Switch)
The enabling device is a safety-rated, three-position switch integrated into the rear grip of the pendant. Position 1 (released) and Position 3 (fully depressed) both interrupt the enabling circuit — only Position 2 (mid-travel) closes the enabling contact and permits robot motion in T1/T2 teach modes. This architecture conforms to ISO 10218-1:2011 and EN ISO 13849-1 Performance Level d (PLd), meaning the switch circuit is dual-channel with cross-monitoring. A single component failure in the enabling circuit defaults to the safe state (motion inhibited), satisfying the requirements of Category 3 safety architecture.

2. EMC-Hardened Membrane Keypad
The keypad membrane is a polyester-over-polycarbonate laminate with embedded carbon-pill contacts. The sealed construction provides IP54 ingress protection against metallic dust and coolant mist — common contaminants in welding and machining cells. The membrane also acts as a Faraday shield layer, attenuating electrostatic discharge (ESD) events before they reach the PCB-mounted key-scan matrix. FANUC specifies the keypad to withstand IEC 61000-4-2 Level 3 ESD (8 kV contact discharge) without functional degradation.

3. Proprietary Serial Communication Protocol
The pendant communicates with the C-Series controller via a synchronous serial protocol over the dedicated cable harness. The controller polls the pendant at a fixed cycle time (typically 8 ms for C-Series), reading key states, deadman switch state, and E-Stop state in each cycle. Display data is pushed from the controller to the pendant’s LCD driver in the same cycle. This tight coupling means the pendant’s response latency to a jog key press is bounded by the controller’s servo cycle — typically under 16 ms end-to-end — which is essential for precise manual axis positioning during teach operations.

4. Latching E-Stop Circuit
The E-Stop button uses a positive-opening contact mechanism per IEC 60947-5-5. The contact is mechanically forced open by the actuator geometry — spring force alone cannot close it once actuated. This eliminates the failure mode where a welded contact could allow the E-Stop to appear reset while the circuit remains open. The E-Stop signal is wired in series with the controller’s safety relay chain, cutting servo power to all axes within the controller’s defined reaction time.

System Integration Benefits

• Zero-Configuration Replacement: The A05B-2301-C300 is a plug-and-play replacement for C100/C102/C202 and 2004-T364 systems. No firmware update, parameter adjustment, or controller re-initialization is required upon pendant substitution — the controller identifies the pendant via the hardware handshake at power-on.
• Deterministic Jog Response: Because the pendant communicates over a dedicated synchronous bus rather than a shared fieldbus, jog command latency is deterministic and bounded. Operators can perform fine-axis positioning with confidence that key-press-to-motion delay is consistent across all operating conditions.
• Full Diagnostic Transparency: The pendant displays real-time axis positions in all coordinate frames (joint, world, tool, user), active alarm codes with sub-code detail, I/O status, and program execution state. This eliminates the need for a separate diagnostic terminal during fault investigation on the shop floor.
• Safety Architecture Compliance: The integrated PLd-rated enabling device and IEC 60947-5-5 E-Stop allow the pendant to be used in T1 and T2 teach modes without additional external safety hardware, simplifying cell safety circuit design and reducing BOM cost.
• Multi-Frame Jogging: Support for World, Tool, and User-frame jog modes allows operators to move the TCP along application-relevant axes (e.g., along a weld seam or perpendicular to a fixture face) rather than being constrained to joint-space motion, reducing teach time for complex path segments.
• Program Edit Without PC: The pendant supports on-pendant program editing — inserting, deleting, and modifying motion instructions, I/O commands, and register operations — without requiring a PC-based programming terminal. This is critical for rapid path correction during production changeovers.
• Legacy Fleet Continuity: FANUC C-Series controllers remain in active production service across automotive and general manufacturing facilities globally. The A05B-2301-C300 extends the operational life of these controllers without requiring a capital-intensive controller upgrade, preserving existing robot programs, tooling offsets, and calibration data.
• Reduced Unplanned Downtime: A failed teach pendant renders a robot cell non-operational for programming, fault recovery, and manual intervention. Stocking a verified A05B-2301-C300 as a spare reduces mean time to recovery (MTTR) for pendant-related failures from days (OEM lead time) to minutes (swap from shelf stock).

Quality Assurance & Global Logistics

Every A05B-2301-C300 unit dispatched from our Xiamen, China facility passes a structured pre-shipment verification protocol:

• Visual inspection of enclosure, cable connector body, keypad membrane surface, and LCD window for mechanical damage
• Power-on functional test: LCD display initialization, backlight operation, and key-scan matrix response across all keys
• E-Stop circuit continuity test: contact resistance measured at actuation and release positions
• Deadman switch three-position actuation test: enabling contact state verified at all three positions
• Connector pin-out verification against A05B-2301-C300 wiring specification to confirm cable harness integrity
• Serialization record retained for 12 months post-dispatch for traceability

Units are packed in anti-static polyethylene bags, surrounded by 30 mm closed-cell foam, and shipped in double-wall corrugated cartons rated for 32 ECT. International shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — typical transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia. Export documentation (commercial invoice, packing list, HS code 8537.10.9000) is prepared for all international orders. In-stock units ship within 1–2 business days of payment confirmation.

All units carry a 12-month warranty covering functional defects under normal operating conditions. Warranty claims are processed with advance replacement for verified defects — no extended RMA wait.
