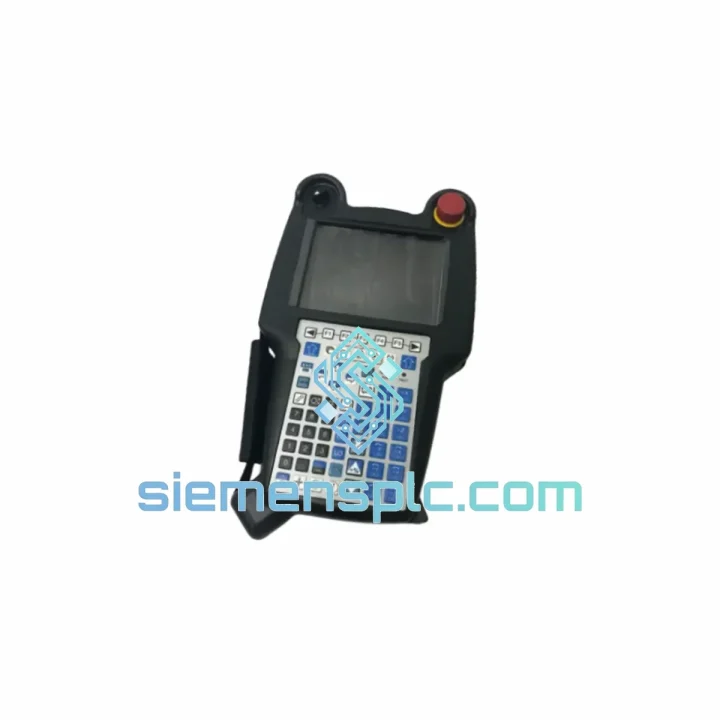

FANUC A05B-2518-C200 C202 C204 Teach Pendant – R-30iB Series

FANUC A05B-2518-C200 / C202 / C204 iPendant: Operator Interface Architecture for R-30iB Material Handling Cells

The FANUC A05B-2518-C200, C202, and C204 teach pendants are the primary human-machine interface layer for robot cells built on the R-30iB and R-30iB Plus controller platform. Each variant in this series is purpose-matched to specific safety circuit configurations and I/O display requirements within FANUC’s material handling (MH) application stack. Understanding the functional differentiation between C200, C202, and C204 is essential for correct spare-part procurement and cell safety compliance.

The C200 is the baseline iPendant configuration, providing full jog, program edit, and I/O monitoring capability via a 6.4-inch color LCD touchscreen. The C202 extends the standard I/O display panel to accommodate expanded discrete I/O mapping — relevant in cells where the robot controller manages peripheral device I/O beyond the standard 40-point DI/DO allocation. The C204 introduces a dual-channel, safety-rated deadman switch assembly, required in cells where the safety PLC or safety relay module demands a Category 3 / PLd-compliant teach-mode enable signal per ISO 10218-1:2011 and EN ISO 13849-1.

All three variants share the same mechanical housing, 50-pin proprietary pendant connector, and R-30iB firmware compatibility baseline. This commonality allows a single spare-part strategy to cover the majority of R-30iB MH installations, with variant selection driven solely by the controller’s safety configuration file (SYSVAR.SV) and the cell’s safety circuit wiring diagram.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A05B-2518-C200 series pendant operates as a peripheral node on the R-30iB controller’s internal communication bus. The pendant CPU board — a dedicated embedded processor within the iPendant housing — handles local display rendering, touchscreen input debouncing, and USB data transfer independently of the main robot CPU (A16B-3200 series main board). This distributed processing model prevents pendant display latency from affecting the real-time motion control cycle, which operates at a 1 ms servo period on the R-30iB platform.

EMC Design: The pendant housing incorporates a conductive inner shield layer bonded to the cable shield drain wire, providing a continuous Faraday enclosure from the pendant PCB ground plane through to the controller chassis ground. This design suppresses radiated emissions from the LCD backlight inverter and touchscreen controller IC, and provides immunity against the 10 V/m radiated field levels specified in IEC 61000-4-3 — a relevant concern in welding and servo-drive-dense MH environments.

Deadman Switch Signal Path (C204): In the C204 variant, the dual-channel deadman switch generates two independent discrete signals routed through separate conductors within the pendant cable to the controller’s safety circuit board (A20B-2004 series). The safety board performs cross-channel monitoring with a maximum discrepancy time of 500 ms before triggering a safety stop (Category 0 or Category 1 per IEC 60204-1, depending on controller configuration). This hardware-level interlocking is entirely independent of the robot software state — a critical design requirement for ISO 10218-1 compliance in teach mode.

E-Stop Circuit Architecture: The integrated E-Stop button on all three variants is wired in series with the controller’s external E-Stop chain via dedicated conductors in the 50-pin cable. The circuit is normally-closed (NC) and force-guided — pressing the E-Stop opens the NC contacts and simultaneously closes the NC monitoring contacts, allowing the safety relay module to detect both the stop command and any contact welding fault. This dual-contact architecture meets the requirements of IEC 60947-5-5 and EN ISO 13850.

Display and Communication Bus: The pendant communicates with the R-30iB main CPU via a proprietary serial protocol over the 50-pin cable. Display data (axis positions, alarm codes, I/O states, program content) is streamed from the main CPU at a refresh rate sufficient to maintain operator situational awareness during jog operations. The touchscreen controller IC translates capacitive touch events into coordinate data transmitted back to the main CPU for HMI processing — the pendant itself does not execute motion commands; it transmits operator intent to the main CPU, which validates and executes within the real-time motion kernel.

System Integration Benefits

• Zero-Configuration Replacement: The A05B-2518-C200 series is plug-and-play within the same R-30iB controller generation. No firmware re-flashing, no controller reconfiguration, and no SYSVAR.SV modification is required when replacing a pendant of the same variant code — reducing mean time to repair (MTTR) to the physical swap duration.
• Deterministic Safety Response: The hardware-interlocked E-Stop and deadman switch circuits operate independently of the robot software stack. Safety stop response is not subject to software scan cycle delays, ensuring deterministic Category 0/1 stop behavior regardless of the program execution state at the moment of activation.
• Diagnostic Transparency via iHMI: The iPendant’s iHMI interface provides structured alarm history with timestamp, axis-level fault isolation, and I/O state visualization. Engineers can identify the root cause of a motion fault — whether servo amplifier, encoder, or peripheral I/O — without connecting a laptop or external diagnostic tool.
• Offline Program Upload via USB: The pendant’s USB port supports direct TP program upload and download using FANUC’s standard .TP and .LS file formats. This eliminates dependency on a PC-based ROBOGUIDE connection for routine program updates in production environments.
• Multi-Language HMI: The pendant supports English, Simplified Chinese, Japanese, and additional language packs loaded via the controller’s language configuration. This is operationally significant for multinational manufacturing sites where operators and engineers may work in different languages on the same cell.
• Variant-Specific Safety Compliance: The C204’s dual-channel deadman switch allows the cell safety architecture to achieve Category 3 / PLd for the teach-mode enable function without adding external safety relays or rewiring the pendant cable — the compliance is built into the pendant hardware.
• Reduced Spare-Part Inventory Complexity: The C200/C202/C204 family shares a common housing, cable, and connector. A facility maintaining R-30iB MH cells can standardize on a single pendant family across multiple robot models (M-10iA, M-20iA, M-710iC, LR Mate 200iD), reducing spare-part SKU count and storage requirements.
• Extended Environmental Tolerance: IP54 ingress protection and a 0–45 °C operating range cover the thermal and contamination conditions typical of automotive stamping, food-grade palletizing, and general assembly MH environments without requiring additional protective enclosures for the pendant.

Quality Assurance & Global Logistics

Each A05B-2518-C200 / C202 / C204 unit supplied by siemensplc.com is sourced as genuine FANUC OEM hardware. Units are not remanufactured or third-party clones. Prior to shipment, each pendant undergoes a structured pre-shipment inspection protocol: power-on functional test confirming display initialization and touchscreen response; deadman switch continuity and cross-channel verification (C204); E-Stop NC contact resistance measurement and monitoring contact function check; USB port data transfer verification; and visual inspection of the housing, cable jacket, and 50-pin connector for mechanical integrity.

Units are packaged in anti-static bags within foam-lined export cartons. The cable is coiled to a minimum bend radius of 75 mm and secured to prevent connector pin stress during transit. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to facilitate customs clearance in the destination country.

Logistics operations are based in Xiamen, China. Standard international shipment is via DHL Express or FedEx International Priority, with door-to-door transit times of 3–5 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. Air freight consolidation is available for multi-unit orders. All shipments include full tracking and are covered by carrier insurance. For time-critical requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

A 12-month warranty is provided from the shipment date, covering functional defects identified under normal operating conditions consistent with the R-30iB controller environment. Warranty claims are processed with a functional test report and, where applicable, a replacement unit dispatched prior to return of the defective unit for approved accounts.
