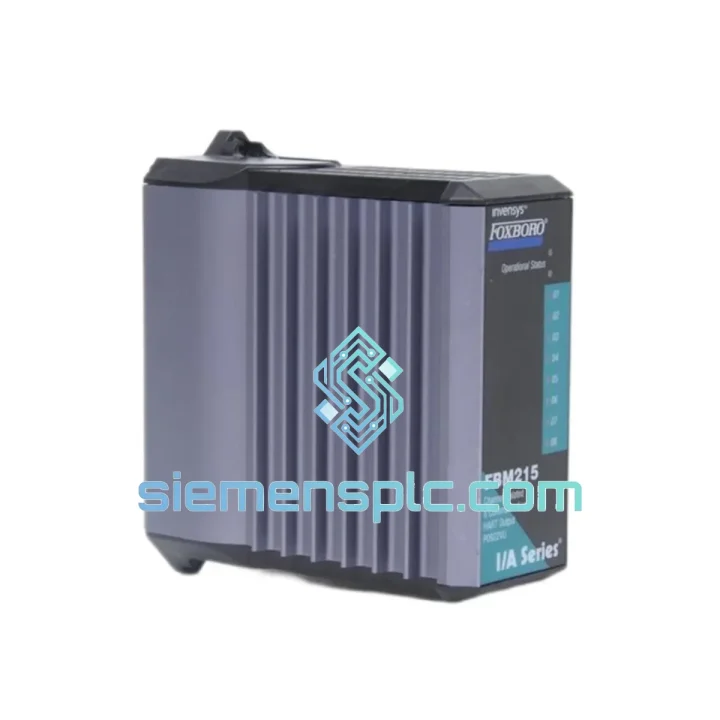

FOXBORO FBM215 DCS Output Module

FOXBORO FBM215 Output Interface Module: Cut Downtime, Restore Control — Ships Within 24 Hours

Your distillation column is in manual. Your DCS alarm screen is lit up like a Christmas tree. The shift supervisor is on the phone. You already know the FBM215 is the culprit — the output channel is dead, the valve isn’t responding, and every minute of open-loop operation is burning money. This is exactly the situation we built our inventory for.

We stock the FOXBORO FBM215 Output Interface Module specifically because I/A Series plants don’t get to wait two weeks for a factory order. The FBM215 is a dedicated output fieldbus module within the Foxboro I/A Series DCS architecture — it sits between the control processor and your final control elements, converting digital commands into the 4–20 mA analog signals that drive your valves, positioners, and variable-speed drives. When it fails, your control loop is open. Full stop. There is no workaround that doesn’t involve risk.

We ship from Xiamen via DHL Express and FedEx International Priority. Most destinations in Southeast Asia receive the module within 3–5 business days from order confirmation. Middle East and Europe: 4–7 business days. We have done this hundreds of times. We know what export documentation your customs broker needs, and we prepare it in advance.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for FBM215:

• Output channel frozen at last value (LLV): The I/A Series controller reports the channel as healthy, but the field device is not responding. This is a classic sign of a failed output DAC stage inside the FBM215. The module’s self-diagnostics may not catch this — check the actual mA output at the terminal block with a calibrated loop calibrator before condemning the field device.
• HARDWARE FAULT alarm on the FBM: The module’s internal watchdog has tripped. Power-cycle the module first (pull and reseat in the baseplate). If the fault persists after two reseats, the module is defective. Do not continue operating with a faulted FBM215 — the output state is indeterminate.
• Intermittent output dropout: Often caused by backplane connector oxidation rather than module failure. Clean the rear-plane DIN connector with isopropyl alcohol (99%) before condemning the module. If dropout continues after cleaning, swap the module.
• All channels fail simultaneously: Points to a power supply issue on the FBM enclosure bus rather than the FBM215 itself. Verify enclosure bus voltage before ordering a replacement module.

Replacement procedure — field checklist:

1. Confirm the I/A Series system is configured for hot-swap on this FBM slot. Check the FBM enclosure configuration in the Foxboro AIM* historian or the I/A Series System Manager. If hot-swap is not enabled, coordinate a controlled output hold with the board operator before pulling the module.
2. Place all downstream control loops in manual at the DCS console. Do not rely on the controller to hold outputs during module swap — the output state during module removal is undefined.
3. Pull the FBM215 straight out from the baseplate. Do not rock or twist — the rear-plane connector is fragile on aged units.
4. Inspect the baseplate connector for bent pins or debris before inserting the replacement unit.
5. Insert the new FBM215 firmly until the front latch clicks. The module should power up within 5–10 seconds and the STATUS LED should go green.
6. Verify the module address assignment. In I/A Series, FBMs are addressed by physical slot position — no DIP switch setting is required on the FBM215 itself. The slot address is read automatically by the control processor. Confirm the module appears in the I/A Series System Manager with the correct letterbug assignment.
7. Verify firmware revision compatibility. The FBM215 firmware is embedded and non-field-upgradeable on most revisions. Confirm the replacement unit’s hardware revision matches or is backward-compatible with your control processor firmware level. Check the Foxboro I/A Series hardware compatibility matrix (document number B0400FA or equivalent for your system revision).
8. Return loops to automatic one at a time. Monitor the first loop for 2–3 minutes before releasing the next. Watch for output bumps caused by any setpoint/PV mismatch that accumulated during the manual hold period.

Configuration note: The FBM215 does not require manual DIP switch addressing. Slot position determines the module address within the I/A Series fieldbus scan. However, if you are replacing a module in a system that has been reconfigured since original commissioning, verify the slot-to-letterbug mapping in the I/A Series database before returning to automatic control.

Reliability in Harsh Conditions

The FBM215 was designed for continuous operation in process plant environments — not office conditions. The I/A Series FBM platform was engineered to tolerate the realities of industrial installation: vibration from rotating equipment, temperature cycling between day and night shifts, humidity ingress in coastal and tropical facilities, and the occasional voltage transient from a nearby motor start.

The module’s PCB uses conformal coating on production revisions, providing a barrier against condensation and airborne contaminants common in chemical plant environments. The rear-plane DIN connector is gold-plated on the contact surfaces to resist oxidation in humid climates — a detail that matters when the module has been in service for a decade or more.

Every unit we ship has been inspected for connector integrity, PCB condition, and physical damage. Units showing evidence of thermal stress, corrosion, or mechanical damage are rejected from inventory. We do not ship cosmetically damaged units without explicit disclosure and customer acceptance.

For installations in high-vibration environments (compressor buildings, turbine halls), we recommend verifying that the FBM enclosure mounting hardware is torqued to specification and that the enclosure door is properly latched. The FBM215 itself is not the weak point in vibration — the enclosure mounting and cable management are.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major port city with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. The module is physically in our warehouse, inspected, and ready to pack when your order is confirmed.

Standard express transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia, Vietnam): 3–5 business days via DHL Express or FedEx International Priority
• Middle East (UAE, Saudi Arabia, Kuwait, Qatar): 4–7 business days
• Europe (Germany, Netherlands, UK, France): 5–7 business days
• North America (USA, Canada): 5–8 business days
• Australia / New Zealand: 4–6 business days

What’s included with every shipment:

• Commercial invoice with accurate HS code classification (HS 8537.10 or 8471.49 depending on destination customs requirements)
• Packing list with unit serial number and hardware revision
• Certificate of origin (China)
• Anti-static bag + foam cushioning + double-wall carton + desiccant pack
• DHL/FedEx tracking number provided within 24 hours of dispatch
• Inspection photos of actual unit available on request before shipment

For urgent shipments, flag your inquiry as URGENT in the subject line. We prioritize same-day quotation and next-business-day dispatch for confirmed urgent orders received before 16:00 CST.
