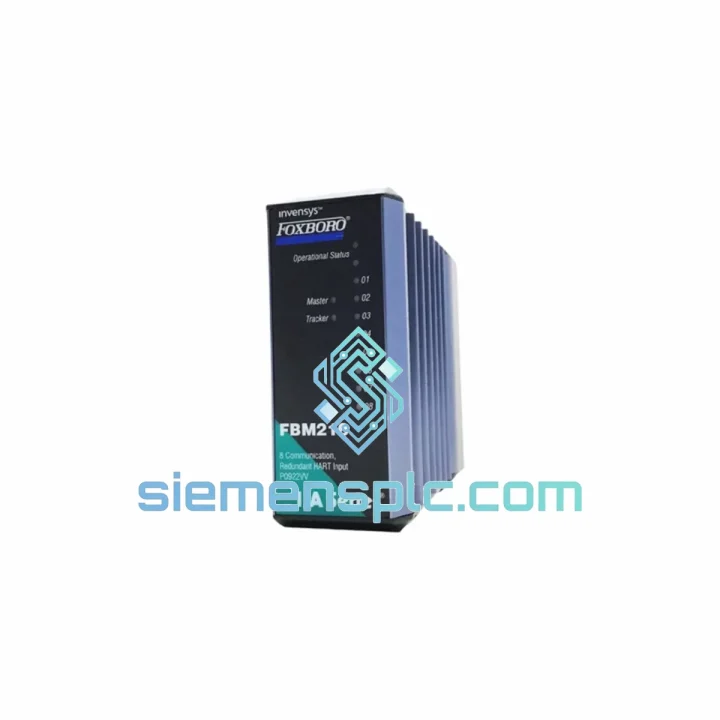

FOXBORO FBM216 P0922VV Analog Input Module – I/A Series DCS

FOXBORO FBM216 P0922VV — 16-Channel Analog Input Module in the I/A Series Distributed Control System

The FOXBORO FBM216 P0922VV is a 16-channel analog input field bus module (FBM) designed for deployment within Foxboro’s I/A Series Distributed Control System architecture. It serves as the primary signal acquisition interface between field-mounted transmitters and the I/A Series control network, converting 4–20 mA current loop signals into digitized process values that the Field Control Processor (FCP) uses to execute PID and advanced control strategies. In continuous process environments — refinery distillation columns, ethylene crackers, combined-cycle power plants, and water treatment facilities — the FBM216 P0922VV occupies a structurally critical position: every analog measurement that feeds a closed control loop passes through this module’s signal conditioning chain before it reaches the control algorithm.

Unlike general-purpose I/O cards, the FBM216 P0922VV is engineered specifically for the I/A Series backplane communication protocol. It communicates with the FCP via the Nodebus or Fieldbus interface depending on system generation, maintaining deterministic scan rates that are essential for tight loop control. The module’s 16-channel density reduces baseplate slot consumption in high-channel-count applications, lowering both hardware cost and cabinet footprint compared to lower-density alternatives.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FBM216 P0922VV’s internal architecture reflects the design philosophy of the I/A Series platform: determinism, fault transparency, and field serviceability without process interruption.

Optical Isolation Architecture: Each channel group employs galvanic isolation via optocouplers positioned between the field terminal block and the A/D conversion stage. This isolation barrier — rated to withstand transient voltages common in industrial field wiring environments — prevents ground loop currents from corrupting the measurement signal and protects the module’s logic circuitry from field-side fault conditions. In installations where field cables run alongside high-voltage power conductors or variable-frequency drives, this isolation is not optional; it is the primary defense against common-mode noise injection into the measurement chain.

A/D Conversion and Signal Conditioning: The 12-bit successive approximation A/D converter provides 4,096 discrete steps across the 4–20 mA input span, yielding a resolution of approximately 3.9 µA per count. Before conversion, each channel passes through an anti-aliasing filter and a precision current-sensing resistor network. The resistor network is laser-trimmed at the factory to minimize channel-to-channel gain error, which is critical in applications where multiple transmitters feed a ratio control or cascade loop — any systematic gain offset between channels would introduce a steady-state bias into the control calculation.

EMC Design: The module’s PCB layout follows IEC 61000-4 series immunity requirements. Decoupling capacitors are placed at each power rail entry point to suppress conducted emissions from the backplane supply. The field terminal interface includes transient voltage suppression (TVS) diodes to clamp electrostatic discharge events and fast transients (per IEC 61000-4-4 burst immunity). The metal housing provides shielding against radiated electromagnetic fields, which is particularly relevant in substations and motor control centers where high-frequency switching noise is endemic.

Hot-Swap and Online Replacement: The FBM216 P0922VV supports the I/A Series hot-swap protocol. When a module is extracted from a live baseplate, the FCP detects the loss of communication within one scan cycle and transitions the affected channels to a configurable fault state (hold last value, go to safe output, or generate alarm). Upon reinsertion of a replacement module, the FCP automatically downloads the channel configuration and resumes normal scanning without operator intervention at the controller level. This behavior is governed by the FCP’s module management firmware, not by the FBM itself — the FBM simply re-establishes its Nodebus handshake and begins responding to poll requests.

System Integration Benefits

• Direct Baseplate Compatibility: The FBM216 P0922VV plugs directly into any P0916-series baseplate without adapter hardware, preserving existing wiring terminations and eliminating re-termination labor during module replacement.
• Deterministic Control Loop Timing: The module’s Nodebus communication protocol guarantees a fixed update latency to the FCP, enabling the control engineer to set PID sample times with confidence that the process variable data age is bounded and predictable.
• HART Pass-Through Capability: Where field transmitters support HART protocol, the FBM216 P0922VV passes the superimposed HART signal to the FCP, enabling remote transmitter diagnostics, range changes, and configuration without physical access to the field device.
• Per-Channel Diagnostic Transparency: Each channel reports its status — open circuit, over-range, under-range, or communication fault — as a discrete diagnostic bit in the FCP’s data structure. Operators can identify a failed transmitter loop at the channel level from the DCS console without dispatching a field technician for initial fault isolation.
• Scalable Channel Density: At 16 channels per module slot, the FBM216 P0922VV maximizes I/O density within the I/A Series cabinet, reducing the number of baseplates, power supplies, and communication segments required for large analog I/O counts.
• Redundancy Architecture Support: In systems configured with redundant FCPs, the FBM216 P0922VV participates in the FCP switchover sequence. The standby FCP maintains a synchronized copy of all channel data, so a primary FCP failure results in a bumpless transfer with no loss of process variable history.
• Long-Term Platform Continuity: The I/A Series FBM form factor has remained physically and electrically consistent across multiple platform generations. An FBM216 P0922VV installed in a system commissioned in the 1990s can be replaced with a current-production unit without firmware or configuration changes, protecting the plant’s investment in existing wiring infrastructure and operator training.
• Unified Engineering Environment: All FBM216 P0922VV channel parameters — input range, filter time constant, engineering unit scaling, alarm limits — are configured within the I/A Series Integrated Control Configurator (ICC) or equivalent engineering tool. There is no separate module-level configuration utility, which reduces the risk of configuration drift between the DCS database and the physical hardware.

Quality Assurance & Global Logistics

Every FOXBORO FBM216 P0922VV unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection covers the module housing, connector pins, PCB surface, and label integrity. Functional verification confirms that the module powers up correctly and establishes Nodebus communication with a reference FCP in our test environment. Authenticity screening cross-references OEM part markings, date codes, and label formats against known-good reference units to identify non-genuine components before they reach the customer.

Units are packaged in anti-static (ESD) bags, placed in foam-lined cartons, and sealed with moisture barrier film for international transit. Shipments from Xiamen reach major industrial hubs in Southeast Asia within 3–5 business days, the Middle East within 5–7 business days, and Europe or the Americas within 7–12 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. All shipments include a commercial invoice, packing list, and certificate of origin. A 12-month warranty covers functional defects from the shipment date. Warranty claims are processed with a replacement-first policy to minimize plant downtime.
