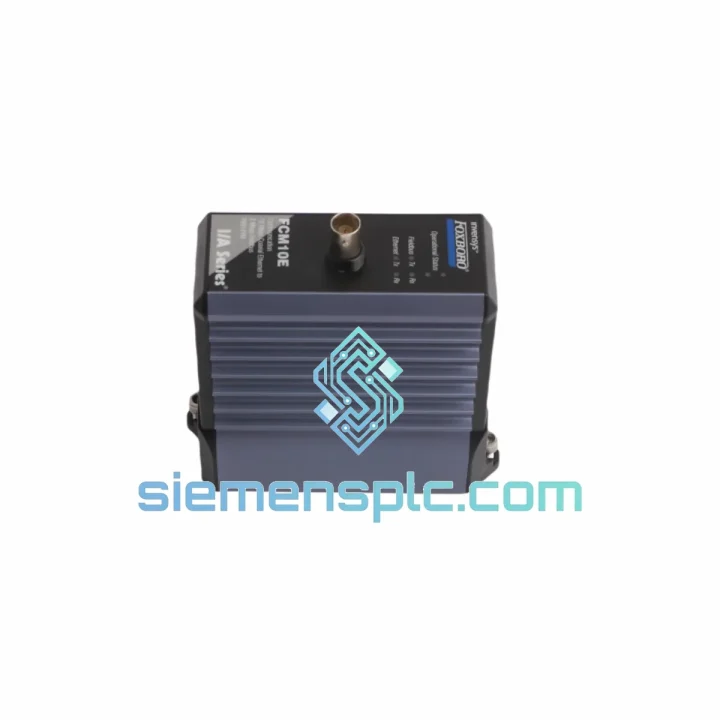

FOXBORO FCM10E P0914YM Communication Interface Module – I/A Series

FOXBORO FCM10E P0914YM – Fieldbus Communication Module in the I/A Series DCS Control Architecture

The FOXBORO FCM10E (catalog part number P0914YM) is a rack-mounted Fieldbus Communication Module engineered for the Foxboro I/A Series Distributed Control System. Within a DCS control loop, the FCM10E occupies the communication layer between field-mounted Function Block Modules (FBMs) and the Nodebus backbone, acting as the deterministic data relay that sustains scan-cycle integrity across the entire process network. Without a correctly specified FCM in the rack, FBM data cannot propagate to the control processors, making this module a structural dependency — not an optional peripheral.

The FCM10E P0914YM handles Nodebus arbitration, time-stamp synchronization, and error-frame recovery simultaneously. Its internal microcontroller manages token-passing on the 2 Mbit/s Nodebus segment, enforcing a maximum latency budget that keeps process variable updates within the deterministic window required by closed-loop PID and cascade strategies. In high-availability configurations, two FCM10E modules can be installed in adjacent slots to form a redundant pair; the standby unit monitors bus traffic passively and assumes control within one scan cycle upon detecting a primary fault — a switchover time measured in milliseconds, not seconds.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FCM10E P0914YM is built around a dedicated communication co-processor that offloads Nodebus token management from the host CPU, preventing bus arbitration overhead from consuming control-processor cycles. This architectural separation is deliberate: the FCM’s co-processor maintains a local frame buffer and handles retransmission logic autonomously, so a transient bus error does not stall the scan cycle of the CP (Control Processor) module sharing the same rack.

EMC and Signal Integrity: The module’s backplane interface incorporates transformer-coupled isolation between the Nodebus segment and the internal logic circuitry. This galvanic barrier suppresses common-mode noise injected from field cabling — a critical design requirement in environments where variable-frequency drives, large motor starters, and high-current switching loads operate in proximity to the DCS cabinet. Conducted emissions are attenuated to levels compliant with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) test criteria.

Redundancy Arbitration Logic: In a redundant FCM pair, the primary module continuously broadcasts a heartbeat frame on a dedicated arbitration channel within the Nodebus protocol. The standby FCM monitors this channel with a hardware watchdog timer. If the heartbeat interval exceeds the configured threshold — typically 1–2 scan cycles — the standby asserts bus mastership without waiting for a software command from the CP. This hardware-level arbitration eliminates the single point of failure that would exist if switchover depended on CP firmware alone.

Diagnostic Register Architecture: The FCM10E exposes a set of internal diagnostic registers accessible via the I/A Series configuration environment (Foxboro AIM*AT or equivalent). These registers log frame error counts, token-rotation time, and bus utilization percentage in real time, giving maintenance engineers quantitative data to distinguish between a degrading cable segment, a failing FBM transceiver, or an overloaded bus segment — without requiring a network analyzer or physical cable inspection.

System Integration Benefits

• Deterministic Scan-Cycle Preservation: The FCM10E’s co-processor architecture guarantees that Nodebus token rotation completes within the configured scan period, maintaining the time-determinism that closed-loop control strategies depend on for stable PID execution.
• Zero-Interruption Redundancy Switchover: Hardware-arbitrated failover between primary and standby FCM units completes within one scan cycle, preventing process upsets that would otherwise result from a communication module failure in a non-redundant topology.
• Transparent Diagnostic Visibility: Real-time bus utilization and frame-error counters surfaced through the I/A Series configuration tools allow predictive maintenance scheduling before a degraded bus segment causes a process trip.
• Plug-Compatible Baseplate Integration: The FCM10E P0914YM installs into any standard I/A Series FBM baseplate slot without hardware modification, eliminating re-wiring costs during module replacement or system expansion.
• Scalable Nodebus Segmentation: Multiple FCM10E modules can be deployed across separate Nodebus segments within the same DCS network, allowing engineers to partition high-scan-rate loops from lower-priority monitoring loops and optimize bus bandwidth allocation per segment.
• Firmware-Stable Replacement Path: A like-for-like FCM10E P0914YM swap requires no firmware reconfiguration on the CP or FBM side, reducing mean time to repair (MTTR) during unplanned outages.
• Broad Application Compatibility: Validated for continuous operation in oil & gas upstream/downstream DCS networks, chemical and petrochemical process control, power generation plant automation, pulp and paper manufacturing, water treatment utilities, and pharmaceutical batch process environments.
• Long-Term Supply Availability: siemensplc.com maintains verified stock of genuine FCM10E P0914YM units sourced through authorized and traceable channels, supporting both emergency replacement and planned maintenance procurement cycles.

Quality Assurance & Global Logistics

Every FCM10E P0914YM unit shipped from our Xiamen, China facility undergoes a structured pre-shipment verification process. Each module is inspected for physical integrity, label authenticity, and serial number traceability against manufacturer records. Functional bench testing confirms that the module powers up correctly and passes internal self-diagnostics before packaging.

Anti-static ESD packaging with desiccant inserts protects the module during transit. A Certificate of Conformance (CoC) and test report are available upon request for quality-controlled procurement environments. Our 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions.

From Xiamen, we ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are dispatched within 1–3 business days. Expedited same-day dispatch is available for urgent plant maintenance requirements. We support OEM, EPC, and MRO procurement teams with volume pricing, consolidated shipments, and long-term supply agreements.
