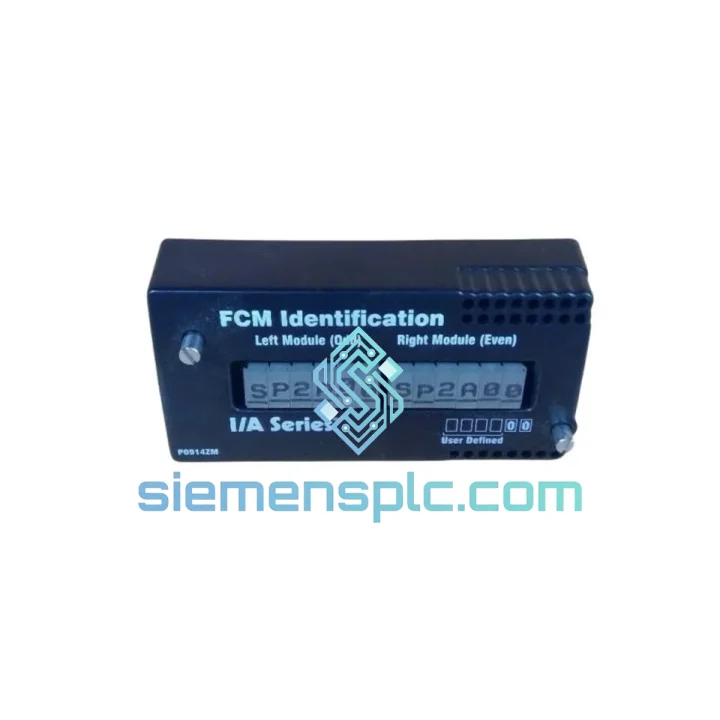

Foxboro P0914ZM DCS I/O Expansion Module

Foxboro P0914ZM Right Module: Stop the Clock on Your Unplanned Shutdown

Every minute your DCS is down, the losses compound — lost throughput, emergency labor, regulatory exposure, and the pressure of a control room waiting on one part. The Foxboro P0914ZM Right Module is in stock at our Xiamen warehouse right now. We’ve shipped this exact module to refineries in the Middle East, power plants in Southeast Asia, and chemical complexes in Europe — all on emergency timelines. If your IA Series baseplate is dark, this is the part that brings it back.

We don’t deal in lead times measured in weeks. When you contact us, you get a real answer on stock, a shipping quote within the hour, and a DHL or FedEx tracking number before end of business. That’s the only metric that matters when your plant is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on Foxboro IA systems teaches you the same failure patterns repeat. Here’s what to check before you pull the P0914ZM and what to verify after you seat the replacement:

Common Failure Indicators:

• HLAI/LLAI channel faults on the right-side I/O: If you’re seeing intermittent analog input dropouts or fixed fault codes on channels mapped to the right expansion slot, the P0914ZM backplane connector is the first suspect — not the FBM.
• Nodebus communication errors (Error Code 0x14 / 0x1A): These codes on the FCP270 or CP60 often trace back to a degraded right-module backplane connection rather than the controller itself. Reseat the P0914ZM before condemning the processor.
• Intermittent I/O loss during thermal cycling: Foxboro IA hardware in high-ambient enclosures (above 45°C sustained) can develop cold-solder fatigue on the backplane connector pins. If faults correlate with ambient temperature peaks, the module is the culprit.
• POST failure on baseplate power-up: If the baseplate fails its power-on self-test and the left module checks out, isolate the right slot by removing the P0914ZM and re-running POST. A confirmed right-slot failure confirms module replacement is required.

Replacement Procedure (Field-Verified Steps):

1. Confirm system state: place the FCP270/CP60 in manual or shadow mode before any hardware swap to prevent process upsets.
2. Document all I/O channel assignments and FBM addresses mapped to the right expansion slot — use the Foxboro IA System Configuration Tool (SCT) to export the current configuration before touching hardware.
3. De-energize the baseplate per your site LOTO procedure. The P0914ZM is not hot-swap rated in all firmware revisions — verify your FCP firmware version against Foxboro bulletin PSS 21H-2Z14 B4 before attempting live swap.
4. Remove the P0914ZM by releasing the two captive screws and pulling the module straight out. Inspect the backplane connector on the baseplate for bent pins or corrosion before seating the replacement.
5. Seat the new P0914ZM firmly until both captive screws engage. There is no address DIP switch on this module — addressing is handled automatically by the IA baseplate slot position. No jumper configuration is required.
6. Re-energize and monitor the FCP diagnostic display. The right module should enumerate within 30 seconds. If it does not appear in the SCT device list, check backplane connector seating and verify firmware compatibility between the replacement module revision and your FCP version.
7. Restore I/O channel assignments in SCT if any were lost during the swap, and perform a full channel verification scan before returning the loop to automatic.

Firmware Compatibility Note: Foxboro periodically releases baseplate and module firmware updates. If your replacement P0914ZM has a different hardware revision suffix than the removed unit, download the latest Foxboro IA firmware compatibility matrix from the Schneider Electric support portal and verify before commissioning.

Reliability in Harsh Conditions

The Foxboro IA Series was engineered for environments that destroy consumer-grade electronics. The P0914ZM carries that same design DNA. In the field, this module has proven itself in conditions that would disqualify lesser hardware:

• Vibration: Designed to IEC 60068-2-6 sinusoidal vibration profiles, the P0914ZM’s backplane connector and PCB mounting are rated for the continuous low-frequency vibration common in compressor stations, pump skids, and rotating equipment enclosures. Field installations on offshore platforms — where structural vibration is constant — have logged multi-year MTBF without module failure.
• Thermal Stress: Sustained operation at the upper end of the 0–60°C range is routine in tropical refinery environments and poorly ventilated marshalling cabinets. The P0914ZM’s thermal design accounts for this, with component derating built into the original Foxboro specification to maintain signal integrity at elevated junction temperatures.
• Humidity and Condensation: Coastal chemical plants and water treatment facilities push humidity to the limits of the 95% RH specification. The conformal coating applied to the P0914ZM PCB provides a barrier against moisture ingress that bare-board alternatives cannot match. In high-humidity environments, ensure cabinet door seals are intact — the module will handle the humidity, but standing water from a failed seal is a different problem.
• EMI/RFI Immunity: Industrial environments are electrically noisy. Variable frequency drives, high-current motor starters, and arc welding operations generate conducted and radiated interference that can corrupt analog signals. The P0914ZM’s shielding and filtering architecture is designed to maintain signal accuracy in these environments when proper grounding practices are followed.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-connected export hubs in Asia. When you place an emergency order, here’s exactly what happens:

• Order Confirmation (Hour 0): You contact us via email or WhatsApp. We confirm stock, issue a proforma invoice, and lock the unit for your order. Payment via T/T, PayPal, or credit card.
• Packing & QC (Hours 1–4): The P0914ZM is pulled from inventory, inspected, wrapped in anti-static packaging, sealed in a moisture barrier bag, and packed in a double-wall carton with foam cushioning. Export documentation — commercial invoice, packing list, and HS code declaration (HS 8537.10) — is prepared in parallel.
• Customs Clearance (Hours 4–8): We handle all Chinese export customs formalities. For DDP shipments, we coordinate import clearance at the destination country through our freight partners.
• DHL / FedEx Handoff (Same Day or Next Morning): Shipments confirmed before 14:00 CST are handed to DHL Express or FedEx International Priority the same day. You receive a tracking number via email within 2 hours of carrier pickup.
• Transit Times: Southeast Asia: 1–2 business days. Middle East / Europe: 2–4 business days. North America: 3–5 business days. These are DHL/FedEx express lanes — not economy freight.
• Incoterms: We support EXW, DAP, and DDP. For emergency plant shutdowns, DDP is recommended — no customs delays on your end, no surprise duties at the door.

We’ve shipped to refineries in Saudi Arabia, power plants in Vietnam, chemical plants in Germany, and paper mills in Canada — all on emergency timelines. The logistics process is the same every time because it has to be.
