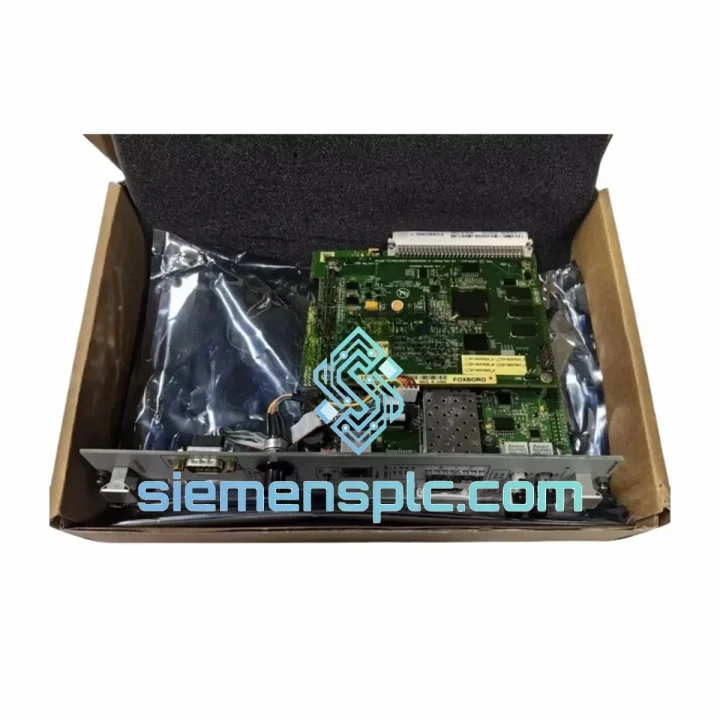

FOXBORO SY-60301003RB RTU50 CPU Motherboard

FOXBORO SY-60301003RB RTU50 CPU Motherboard — Every Hour of Downtime Costs You Money. We Ship Today.

Your RTU50 rack is dead. The SCADA screen is flat. The control room is on the phone. You’ve already isolated the fault to the CPU motherboard — SY-60301003RB — and now you need one, fast, from a supplier who actually has it on the shelf. That’s exactly what this page is for.

We stock the FOXBORO SY-60301003RB RTU50 CPU Motherboard and ship same-day from Xiamen via DHL Express. Whether you’re running a gas pipeline SCADA, a power substation, or a water treatment plant, we understand that every hour this board sits uninstalled is revenue walking out the door. No runaround. No “check back in two weeks.” Stock confirmed — order now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on RTU50 systems have taught me that the SY-60301003RB fails in predictable ways. Here’s what to check before you pull the board — and what to watch when you put the new one in.

Common Fault Signatures:

• CPU LED solid red / no heartbeat blink — Classic sign of a dead processor or corrupted boot sector. Power-cycle the rack first; if the LED doesn’t transition to green within 90 seconds, the board is gone.
• DNP3 / Modbus comms drop on all ports simultaneously — If I/O modules are still responding locally but the master SCADA loses all RTU comms, the CPU is the prime suspect. A single-port failure usually points to the comms daughtercard, not the motherboard.
• Intermittent watchdog resets (Event Log: WDT_TIMEOUT) — Often caused by a failing electrolytic capacitor on the CPU power rail. Visible as bulging caps near the DC-DC converter section. Don’t try to recap in the field — swap the board.
• Configuration loss after power cycle — If the RTU loses its tag database or comms config on every restart, the onboard NVRAM or flash is failing. Backup your config via the RTU50 Toolbox software before the board dies completely.
• Backplane communication errors (BUS_FAULT in diagnostics) — Check the backplane connector pins on the SY-60301003RB first. Oxidized or bent pins on the edge connector are a common cause, especially in coastal or high-humidity sites.

Replacement Procedure — Field Checklist:

• ☐ Export full RTU configuration via FOXBORO RTU50 Toolbox (File → Export Configuration). Store on a USB drive, not just the laptop.
• ☐ Note the current firmware version displayed in Toolbox (Help → About RTU). The replacement board must run the same or a compatible firmware revision.
• ☐ Check the hardware revision label on the board being removed — confirm it matches RB. Mixing RA and RB revisions in the same rack can cause backplane arbitration conflicts.
• ☐ Power down the RTU50 rack via the main DC breaker. Do not hot-swap the CPU motherboard — the RTU50 does not support live CPU replacement.
• ☐ Ground yourself with an ESD wrist strap before handling the board. The SY-60301003RB has exposed CMOS components that are sensitive to static discharge.
• ☐ Seat the replacement board firmly into the backplane slot. The edge connector requires approximately 15–20 N of insertion force — if it slides in too easily, check for bent pins.
• ☐ Power up and observe the CPU LED sequence: amber (POST) → green (normal operation). POST takes 45–90 seconds on a cold boot.
• ☐ Import the saved configuration via Toolbox. Verify all I/O tags, comms parameters, and DNP3 data link addresses are restored correctly.
• ☐ Confirm SCADA master re-establishes comms within 2 minutes of configuration load. If not, check the IP address and DNP3 source address settings — these are not always retained in the config export on older firmware.
• ☐ Run a 30-minute soak test before handing back to operations. Monitor the event log for any WDT or BUS_FAULT entries.

Firmware Compatibility Note: The SY-60301003RB ships from the factory with a baseline firmware. If your site runs a customized firmware build (common in utility SCADA deployments), contact your FOXBORO/Schneider Electric regional support for the correct firmware image before commissioning the replacement board. Flashing the wrong image will brick the board.

Reliability in Harsh Conditions

The RTU50 platform was designed for remote, unattended operation — pipeline pump stations in the desert, coastal water intake facilities, mountain-top power substations. The SY-60301003RB reflects that design philosophy.

The board’s conformal coating protects the PCB and components from condensation, salt spray, and airborne contaminants — a critical feature for coastal and offshore installations where humidity regularly exceeds 80% RH. The operating temperature range of 0°C to +60°C covers the majority of industrial enclosure environments without forced cooling, and the storage range of -40°C to +85°C means the board survives shipping to extreme climates without pre-conditioning.

Vibration tolerance is addressed through the edge-connector backplane mounting design, which distributes mechanical stress across the full connector width rather than concentrating it at screw points. Field data from oil & gas pipeline sites — where compressor vibration is a constant — shows the RTU50 CPU boards outlasting competing RTU platforms by a significant margin in high-vibration environments.

Every unit we ship has been through a power-on functional test: boot sequence verification, comms port loopback test, and a 4-hour burn-in at elevated temperature. We don’t ship boards that haven’t been verified. If you receive a board that fails to POST, we replace it — no questions, no shipping cost to you.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected cities in Asia, with direct DHL and FedEx hub access. Here’s what happens after you place your order:

• Order confirmed before 14:00 CST: Same-day dispatch. Your tracking number arrives by 18:00 CST.
• DHL Express Worldwide: Southeast Asia — 1–2 business days. Europe — 3–4 business days. Americas — 3–5 business days. Middle East / Africa — 4–6 business days.
• FedEx International Priority: Available as an alternative for destinations where DHL coverage is limited.
• Export documentation: Commercial invoice, packing list, and certificate of origin provided as standard. For customs-sensitive destinations (India, Brazil, Russia), we can prepare additional documentation on request.
• ESD-safe packaging: All CPU boards are shipped in anti-static bags, foam-lined boxes, and outer cartons rated for air freight handling. The board arrives in the same condition it left our warehouse.
• Tracking: Real-time tracking link sent via email and WhatsApp. We monitor shipments actively and flag any customs holds immediately.

If your site is in a remote location with limited courier access, contact us before ordering — we have experience routing shipments to offshore platforms, mining sites, and remote substations where standard courier delivery is not straightforward.
