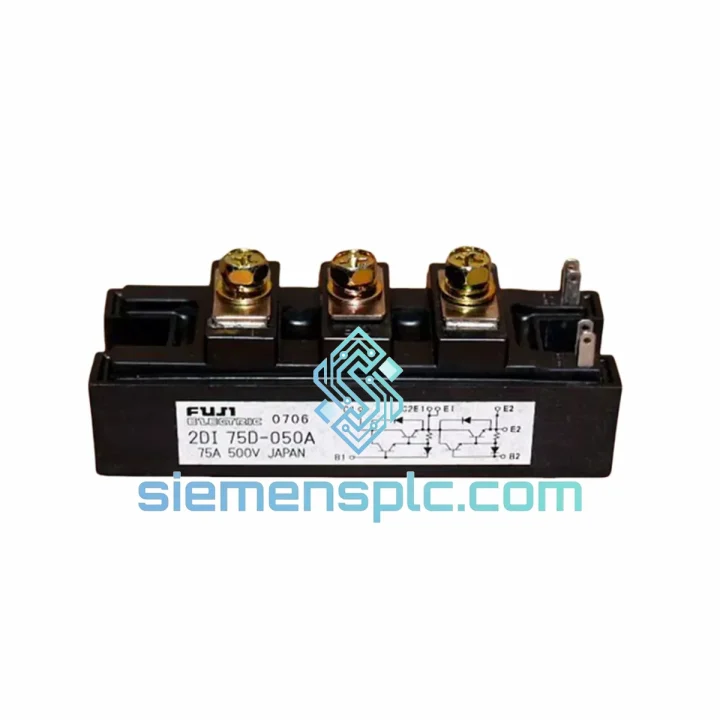

FUJI 2DI75D-050A IGBT Power Module

FUJI 2DI75D-050A: Stop the Clock on Downtime — Ship Today from Xiamen

Your inverter drive is dead. The line is stopped. Every minute costs real money — and you already know the 2DI75D-050A is the culprit. We stock this module. It ships today. That’s the only thing that matters right now.

The FUJI 2DI75D-050A is a dual IGBT power transistor module from FUJI Electric’s 2DI-D Series, rated at 75A collector current and 500V VCES. It is the switching heart of mid-range AC variable frequency drives, industrial UPS inverter stages, and servo amplifier power sections across manufacturing plants worldwide. When this module fails, nothing downstream works. We keep it on the shelf so your line doesn’t stay down waiting for a 4-week factory lead time.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 2DI75D-050A:

• Drive trips on OC (Overcurrent) fault immediately at power-on — classic sign of a shorted IGBT junction. Measure C-E resistance with a DMM in diode mode: a shorted module reads near 0Ω in both directions. Replace immediately.
• Drive runs but trips on OC under load — partial degradation of the IGBT chip. The module passes static checks but fails under thermal stress. Swap the module; do not attempt to derate and run.
• Asymmetric phase output voltage — one IGBT in the dual package has failed open. The drive may still run at reduced torque but will overheat the remaining switch. Pull the module before secondary damage occurs.
• Gate driver fault / desaturation alarm — check gate resistor (Rg) integrity and gate driver supply voltage (typically +15V / -8V) before condemning the IGBT. A failed gate driver can destroy a new module within seconds of power-up.

Step-by-step replacement procedure:

1. Isolate and discharge. Lock out the drive input breaker. Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50V. Verify with a calibrated DMM — do not trust the drive’s display.
2. Document the gate driver wiring. Photograph or sketch the gate signal connections (G, E terminals) before disconnecting. Polarity reversal on reinstallation will destroy the new module instantly.
3. Remove the failed module. Loosen mounting screws in a cross pattern to avoid warping the base plate. Note the torque spec — FUJI specifies M5 screws at 2.5–3.0 N·m for the 2DI-D package.
4. Clean the heatsink surface. Remove all residual thermal compound. Use isopropyl alcohol (IPA) ≥99%. Any contamination creates hot spots that will shorten the new module’s life.
5. Apply fresh thermal interface material. Use a high-performance silicone compound (e.g., Shin-Etsu X-23 or equivalent). Apply a thin, uniform layer — approximately 0.1–0.15 mm. Excess compound does not improve thermal transfer.
6. Mount and torque. Seat the new 2DI75D-050A flat on the heatsink. Torque mounting screws to 2.5 N·m in a cross pattern. Uneven torque causes micro-cracking of the base plate over thermal cycles.
7. Reconnect gate signals. Verify gate driver output voltage: +15V (on-state) and −8V (off-state) are the standard for this module. Adjust Rg if switching frequency has changed.
8. Power-up sequence. Apply control power first. Verify no fault codes. Then apply main power at reduced load. Monitor heatsink temperature for the first 30 minutes of operation.

Configuration notes: The 2DI75D-050A does not have DIP switches or firmware — it is a passive power semiconductor. However, if your drive uses a gate driver board with configurable desaturation thresholds, verify the threshold is set for 75A-class IGBTs. A threshold calibrated for a 100A module will allow dangerous overcurrent before tripping.

Reliability in Harsh Conditions

Industrial environments are not kind to power electronics. The 2DI75D-050A is engineered to operate where lesser modules fail:

• Thermal cycling endurance: FUJI’s 2DI-D Series modules are qualified for thousands of power cycles between −40°C and +125°C junction temperature. The aluminum wire bonds and solder layers are designed to withstand the mechanical stress of repeated thermal expansion and contraction — the primary failure mechanism in power modules operating in cyclic load applications such as crane drives and press machines.
• Vibration resistance: The isolated base plate construction eliminates the need for external insulation pads that can shift under vibration. The module mounts rigidly to the heatsink, maintaining consistent thermal contact even in high-vibration environments such as compressor rooms and mobile equipment.
• Humidity and contamination: The module’s epoxy encapsulation protects the internal chip and wire bonds from moisture ingress. For installations in high-humidity environments (coastal plants, food processing), ensure the drive enclosure maintains positive pressure or use conformal coating on the gate driver PCB — the module itself is sealed.
• High-altitude operation: At elevations above 1,000 m, air density decreases and convective cooling efficiency drops. Derate the module’s continuous current by approximately 1% per 100 m above 1,000 m. The 2DI75D-050A’s conservative 75A rating provides adequate headroom for most high-altitude industrial sites.

Global Express Logistics

We ship from our Xiamen warehouse. Xiamen is a major export hub with direct DHL and FedEx gateway connections — no inland transit delays before your package hits the international network.

• DHL Express Worldwide: Europe, North America, Australia — typically 3–5 business days door-to-door. Real-time tracking from pickup to delivery.
• FedEx International Priority: Americas and Southeast Asia — 2–4 business days. Ideal for urgent plant shutdowns where every hour counts.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code 8541.10 applies to IGBT modules — we handle customs classification to prevent clearance delays at your end.
• ESD-safe packaging: Each 2DI75D-050A is packed in a static-dissipative bag, cushioned in foam-lined export carton. The module arrives at your site in the same condition it left our shelf.
• Order cutoff: Orders confirmed before 14:00 CST ship same business day. Contact us directly for after-hours urgent dispatch.
