FUJI Electric 6RI50E-060 Rectifier Bridge Module – 6RI Series

FUJI Electric 6RI50E-060 — Three-Phase 6-Pulse Rectifier Bridge Module in Industrial Power Conversion Architecture

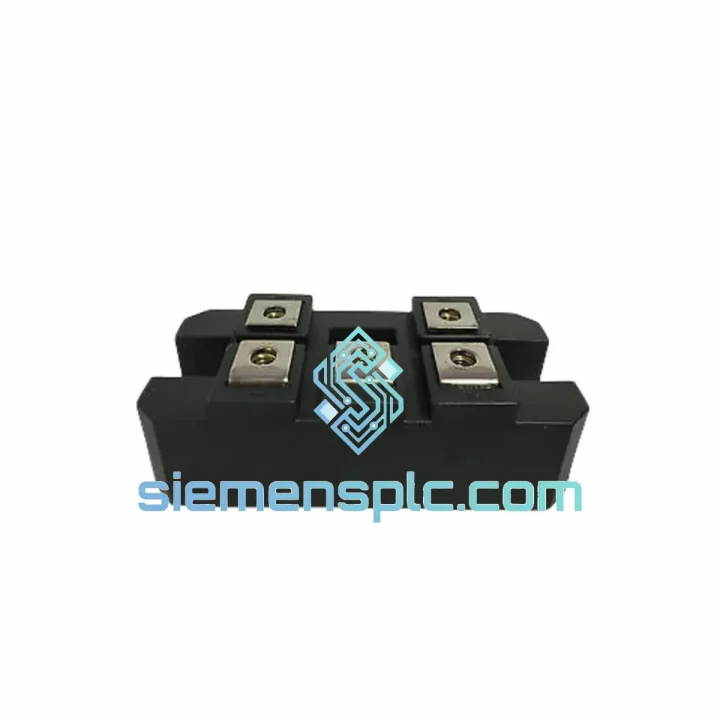

The FUJI Electric 6RI50E-060 is a three-phase, 6-pulse full-wave rectifier bridge module rated at 50 A average output current and 600 V repetitive peak reverse voltage (V_RRM). Within a power conversion control loop, this module occupies the AC-to-DC rectification stage — the foundational layer upon which DC bus voltage stability, downstream inverter switching accuracy, and overall drive system determinism depend. Its role is not passive: the quality of rectification directly governs DC bus ripple amplitude, which in turn affects PWM carrier fidelity in IGBT-based inverter stages and the torque linearity of connected AC motors.

Deployed across variable frequency drives (VFDs), servo amplifiers, industrial UPS systems, and high-current welding power sources, the 6RI50E-060 operates as the primary energy gateway between the three-phase AC supply and the controlled DC bus. Its bolt-down isolated base package enables direct thermal coupling to aluminum extrusion or forced-air heatsinks, maintaining junction temperatures within safe operating limits across continuous duty cycles at rated current.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6RI50E-060 implements a 6-pulse diode bridge topology — the industry-standard architecture for three-phase AC-to-DC rectification in industrial drives. Six discrete power diodes are arranged in a three-phase full-wave configuration: three in the upper commutation group (anode-common) and three in the lower group (cathode-common). At any given instant, two diodes conduct simultaneously — one from each group — transferring energy from the highest-potential phase to the lowest, producing a DC output with a theoretical ripple frequency of 6× the supply fundamental (300 Hz at 50 Hz mains, 360 Hz at 60 Hz mains).

Thermal Architecture: The isolated base construction separates the electrical potential of the diode junctions from the heatsink mounting surface, eliminating the need for additional insulating pads in most installations and reducing contact thermal resistance. The module’s thermal path — junction → case → heatsink → ambient — must be engineered to maintain T_j below the rated maximum (typically 150°C for silicon power diodes) under worst-case continuous load. At 50 A continuous with a typical junction-to-case thermal resistance (R_th(j-c)), the heatsink must be sized to dissipate the total forward conduction losses, calculated as: P_loss = V_F × I_O × (2/3), where V_F is the diode forward voltage at rated current.

EMC Design Considerations: The 6-pulse bridge generates characteristic harmonic currents at orders 6k±1 (5th, 7th, 11th, 13th…) relative to the supply fundamental. In installations where harmonic distortion limits apply (IEEE 519, IEC 61000-3-12), a three-phase AC line reactor (3–5% impedance) is inserted upstream of the module to attenuate these harmonics and limit di/dt during diode commutation. The module’s fast reverse recovery characteristic also determines the magnitude of commutation notches on the AC bus — a parameter relevant to sensitive instrumentation sharing the same distribution panel.

Surge and Inrush Handling: At power-on, the DC bus capacitor bank presents a near-zero impedance load to the rectifier, generating an inrush current transient that can reach 10–20× rated current for several milliseconds. The 6RI50E-060’s repetitive peak forward surge current (I_FSM) rating defines the module’s tolerance for this condition. In practice, a negative temperature coefficient (NTC) thermistor or a controlled pre-charge relay circuit is placed in series with the AC input to limit inrush to within the module’s I_FSM envelope, protecting both the diode junctions and the upstream fusing.

System Integration Benefits

• DC Bus Voltage Stability: The 6-pulse output ripple (300/360 Hz) is significantly lower in amplitude than a single-phase bridge, reducing the capacitance required on the DC bus to achieve a given ripple voltage specification — directly lowering BOM cost and PCB footprint in the drive design.
• Deterministic Commutation Timing: Three-phase diode bridges exhibit natural commutation at fixed phase intervals (60° electrical), producing a predictable DC bus waveform that simplifies DC bus voltage sensing and feed-forward compensation in closed-loop drive controllers.
• Reduced Torque Ripple in Motor Loads: Lower DC bus ripple translates to reduced low-frequency torque ripple in PWM-controlled AC motors, improving speed regulation accuracy in precision positioning and process control applications.
• Simplified Thermal Management: The isolated base package allows direct mounting to a shared heatsink with other power modules (e.g., IGBT modules), reducing the number of thermal interfaces in the drive assembly and improving overall thermal budget allocation.
• Drop-In Mechanical Compatibility: The 6RI series footprint is dimensionally standardized, enabling replacement of equivalent modules from other manufacturers without PCB or heatsink redesign — reducing MRO downtime in field service scenarios.
• Broad Input Voltage Tolerance: The 600 V V_RRM rating provides adequate margin for 380–480 V AC three-phase supplies (peak line voltage ≈ 679 V at 480 V AC), accommodating supply voltage transients and overvoltage events within the module’s safe operating area.
• Compatibility with Standard Protection Schemes: The module is compatible with fast-acting semiconductor fuses (e.g., Bussmann 170M series) for short-circuit protection, and its I²t rating aligns with standard fuse coordination practices in IEC 60269-4 compliant installations.
• Long Field Service History: FUJI Electric’s 6RI platform has accumulated extensive field hours in industrial drive applications across Asia, Europe, and North America, providing a validated reliability baseline for system MTBF calculations in new designs.

Quality Assurance & Global Logistics

Every FUJI Electric 6RI50E-060 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels with full manufacturer traceability. Pre-shipment inspection covers authentic FUJI Electric laser markings, date code consistency, original packaging integrity, and visual inspection of the module base and terminal surfaces for handling damage.

Units are stored in ESD-controlled, climate-regulated warehousing to preserve diode junction integrity and prevent moisture ingress into the module encapsulant. Export documentation — including commercial invoices, packing lists, and HS code declarations (HS 8541.10) — is prepared for all international shipments. Air freight to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas typically achieves 3–7 business day door-to-door transit. Sea freight consolidation is available for volume orders. All shipments carry a 12-month quality warranty from the date of dispatch, covering manufacturing defects under normal operating conditions.
