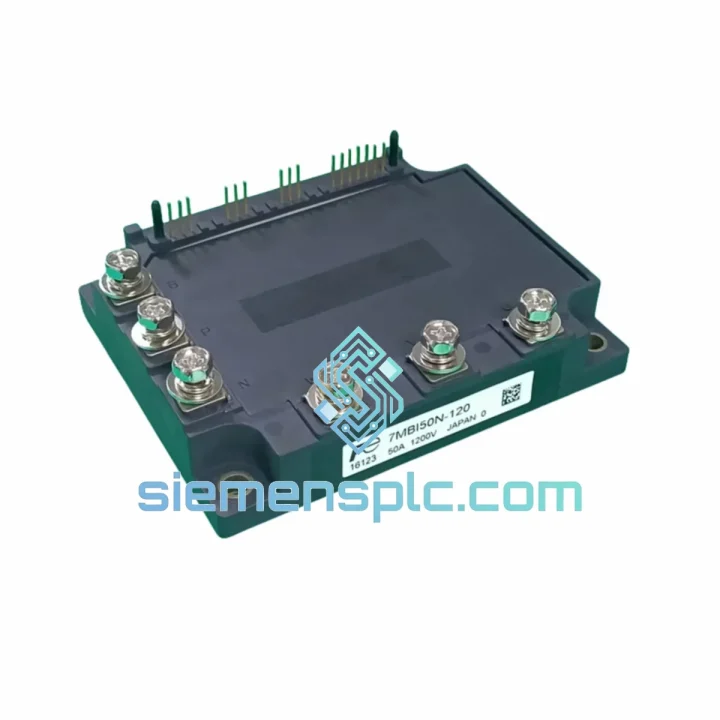

Fuji Electric 7MBI50N-120 IGBT Module

7MBI50N-120 Down? Every Minute of Downtime Costs You Money — Ship Today from Xiamen

Your line stopped. The drive tripped on an IGBT fault. You pulled the module and confirmed it: Fuji Electric 7MBI50N-120 — blown gate junction, carbon tracking on the substrate, or a shorted phase leg. You’ve been here before. The clock is running, and your production manager is already calling. This is exactly the scenario we built our inventory around.

We stock the 7MBI50N-120 at our Xiamen warehouse, verified original Fuji Electric N-Series, ready to pull and ship same day via DHL Express or FedEx Priority. No waiting on factory lead times. No grey-market risk. Just a confirmed part number, a tracking number, and your line back up.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirming the Fault Before You Order

Before pulling the module, check the drive’s fault history. On Fuji FRENIC-series drives, fault code OC1 / OC2 / OC3 (overcurrent during acceleration, deceleration, or constant speed) combined with a GF (ground fault) or OH (overheat) code in the same event log is a strong indicator of IGBT failure rather than a control board issue. If you’re seeing OC faults that don’t clear after a power cycle and the motor is disconnected, the module is almost certainly the culprit.

Step-by-Step Replacement Procedure

1. Isolate and discharge. Lock out the drive, confirm DC bus voltage below 30 V with a calibrated meter before touching anything. The 7MBI50N-120 sits on a DC bus that can hold charge for several minutes after power-off — do not skip this step.

2. Document gate resistor values. Before desoldering or disconnecting gate leads, photograph or record the gate resistor values on the drive PCB. The N-Series typically runs Rg = 10–22 Ω on the turn-on side and 10–15 Ω on turn-off. If the new module is a -01 revision, these values may need slight adjustment to control switching losses.

3. Thermal interface — do not reuse old grease. Clean the heatsink surface with isopropyl alcohol and a lint-free cloth. Apply fresh thermal compound (Shin-Etsu X-23 or equivalent) in a thin, even layer. The N-Series baseplate is flat-lapped; uneven compound application is a leading cause of premature re-failure.

4. Torque the mounting screws correctly. The 7MBI50N-120 uses M5 screws. Torque to 3.5–4.0 N·m. Under-torquing creates hot spots; over-torquing cracks the ceramic substrate. Use a calibrated torque screwdriver — not a power tool.

5. Gate drive verification before motor reconnection. Power up the drive with the motor disconnected. Measure gate-emitter voltage on each phase arm at idle: you should see the drive outputting ±15 V gate pulses at the programmed carrier frequency. Any arm showing 0 V or asymmetric drive indicates a gate driver IC issue on the control board — resolve this before connecting the motor or you will destroy the new module within seconds.

6. No address switches or firmware flashing required. The 7MBI50N-120 is a passive power device — no DIP switches, no firmware, no self-addressing. The only configuration item is ensuring the gate drive board’s current sense shunt matches the module’s current rating if your drive uses an external shunt topology.

Common Failure Modes on This Module

• Phase-to-phase short (U-V, V-W, U-W): Typically caused by DC bus overvoltage transient exceeding VCES. Check input line reactor and braking resistor before replacement.
• Single IGBT open circuit: Often a gate oxide failure from sustained VGES overstress. Audit gate drive supply rails — ±15 V should be within ±0.5 V under load.
• Intermittent OC faults at high ambient temperature: Thermal interface degradation. Replace thermal compound even if the module tests good.
• Diode failure only: Rare on this module but possible in regenerative braking applications. Verify braking chopper operation and DC bus clamp voltage.

Reliability in Harsh Conditions

The Fuji Electric N-Series platform was engineered for the realities of industrial floor environments — not laboratory conditions. The 7MBI50N-120 carries a junction temperature ceiling of 150°C, giving it meaningful thermal headroom in poorly ventilated control cabinets where ambient temperatures routinely exceed 45°C during summer production peaks.

The module’s aluminum nitride (AlN) substrate delivers thermal conductivity approximately 5× higher than standard alumina, which translates directly into lower junction-to-case thermal resistance and longer mean time between failures in high-cycle applications like elevator drives and press brakes. In vibration-intensive environments — stamping lines, compressor rooms, marine auxiliary panels — the screw-terminal construction of the N-Series outperforms solder-pin alternatives by eliminating the fatigue failure mode that plagues smaller packages under mechanical stress.

Humidity is the silent killer of IGBT modules in coastal and tropical installations. The 7MBI50N-120’s encapsulation compound provides a sealed barrier against condensation ingress on the wire bonds and substrate. For installations in environments exceeding 85% RH, we recommend verifying cabinet IP rating and adding desiccant packs as a secondary measure — the module will handle it, but the surrounding PCB may not.

Every unit we ship has been stored in climate-controlled conditions at our Xiamen facility. We do not stock modules in uncontrolled warehouse environments. Date codes are verified and documented. You are not getting a module that has been sitting in a humid container for two years.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here is what the fulfillment timeline looks like from the moment you confirm your order:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to carrier.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 3–4 days, North America 4–5 days, Middle East 3–5 days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code 8541.10 (semiconductor devices) — standard customs classification, no special licensing required for most destinations.
• ESD-safe packaging: Module shipped in anti-static bag, foam-lined carton, double-boxed for international transit. Arrives in the same condition it left our shelf.
• Tracking: Waybill number sent via email and WhatsApp within 2 hours of carrier pickup.

For customers in Southeast Asia running critical production lines, we have successfully delivered 7MBI50N-120 units to Thailand, Vietnam, Indonesia, and Malaysia within 48 hours of order confirmation. If your situation is genuinely urgent, tell us when you contact us — we will prioritize your shipment in the pick queue.
