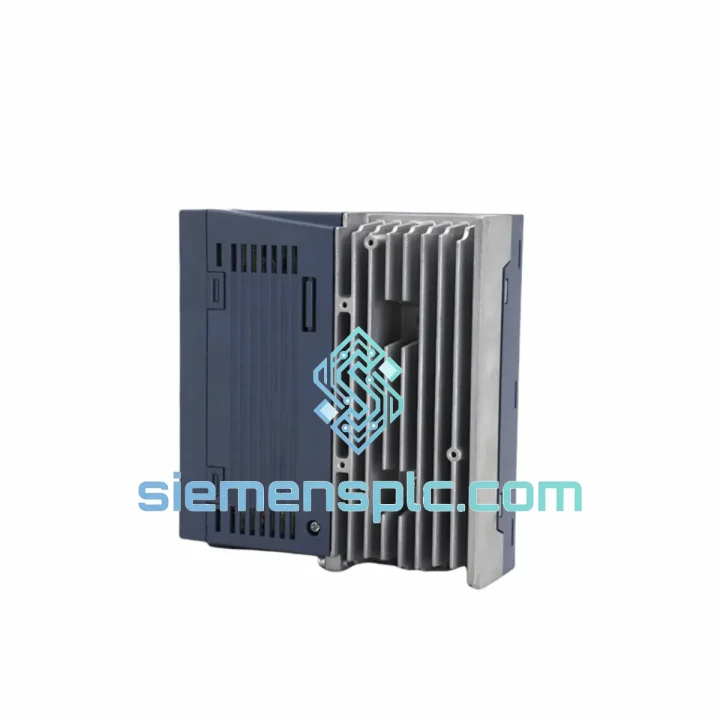

FUJI Electric RYT751D5-VV2 AC Servo Driver – ALPHA5 Smart Series

FUJI RYT751D5-VV2: 750W Single-Phase AC Servo Amplifier in Precision Motion Control Architecture

The FUJI RYT751D5-VV2 is a 750W single-phase AC servo amplifier belonging to FUJI Electric’s ALPHA5 Smart (RYT Series) platform. Within a closed-loop motion control system, this amplifier occupies the critical interface layer between the host controller’s command signal and the physical torque output of the servo motor. Its internal architecture handles three concurrent control loops — position, velocity, and current — each executing at distinct sampling rates to maintain deterministic response under variable load conditions.

The position loop processes encoder feedback from a 17-bit absolute encoder (131,072 pulses/rev resolution), eliminating the mechanical homing sequence that single-turn incremental encoders require on every power cycle. The velocity loop operates at a 500 µs cycle, applying a PI controller with feed-forward compensation to suppress velocity droop during rapid acceleration ramps. The innermost current loop runs at 62.5 µs, directly regulating the PWM duty cycle of the IGBT bridge to track the torque command with minimal phase lag. This three-tier loop architecture is the structural reason the RYT751D5-VV2 achieves a speed frequency response of 2.0 kHz — a figure that directly determines how tightly the drive can follow a dynamic velocity profile without overshoot or oscillation.

The amplifier accepts pulse-train position commands (sign + pulse or 90° phase difference A/B quadrature) at up to 4 Mpps, as well as analog ±10V velocity and torque references. RS-485 serial communication (FUJI SX-DSV protocol) enables parameter upload/download and real-time monitoring without interrupting the control loop. The ALPHA5 Smart auto-tuning function measures load inertia ratio in real time and adjusts gain parameters accordingly, reducing manual commissioning time on machines with variable payloads.

At the power stage, the D5 suffix designates single-phase 200–240V AC input. The internal rectifier and DC bus capacitor bank sustain a nominal DC link voltage of approximately 280–320V DC. The IGBT switching frequency is fixed at 16 kHz, which places the primary switching harmonics well above the audible range and reduces motor winding thermal stress compared to lower-frequency drives. An internal dynamic braking circuit handles regenerative energy during deceleration; for high-inertia loads or frequent stop-start cycles, an external regenerative resistor unit is required to prevent DC bus overvoltage faults.

The RYT751D5-VV2 is mechanically designed for panel mounting with a 55mm width footprint, compatible with standard 35mm DIN rail or direct screw mounting. The IP20 enclosure rating is appropriate for installation inside a sealed control cabinet. Forced-air cooling is not required at rated load in ambient temperatures up to 55°C, provided the minimum 10mm clearance above and below the unit is maintained for natural convection.

This amplifier is natively paired with FUJI GYS751D5-VV2 and GYB751D5-VV2 servo motors (750W, 200V, 17-bit absolute encoder). Motor constants — including rated current, back-EMF constant, and inertia — are stored in the amplifier’s non-volatile memory and loaded automatically when the matched motor is connected, bypassing manual parameter entry. This factory-matched pairing is the primary reason FUJI servo sets achieve tighter velocity regulation than cross-brand combinations requiring manual motor constant entry.

Genuine FUJI Electric RYT751D5-VV2 units are available from stock in Xiamen, China. All units carry a 12-month warranty from shipment date. Contact [email protected] for current pricing and lead time.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RYT751D5-VV2 implements a three-stage EMC suppression architecture. At the AC input, a common-mode choke and X/Y capacitor network attenuate conducted emissions in the 150 kHz–30 MHz band, meeting EN 61800-3 Category C2 limits without an external line filter in most installations. The DC bus is decoupled with a film capacitor bank rather than electrolytic-only construction, which reduces equivalent series resistance (ESR) and extends capacitor service life in high-ambient-temperature environments.

The IGBT gate drive circuit incorporates individual desaturation detection per switch. If a shoot-through condition is detected — caused by a short-circuit fault or excessive dV/dt — the gate drive shuts off the affected IGBT within 2 µs, protecting the power module before the overcurrent protection relay can respond. This hardware-level protection operates independently of the DSP firmware, meaning it remains active even during a firmware exception or watchdog reset.

The 17-bit absolute encoder interface uses a serial communication protocol (FUJI proprietary, electrically compatible with RS-422 differential signaling) operating at 4 Mbps. The encoder data frame includes a CRC checksum; the amplifier rejects frames with checksum errors and flags an encoder communication alarm (AL-10 series) rather than acting on corrupted position data. This prevents position runaway faults that can occur in drives using simpler encoder interfaces without data integrity verification.

The auto-tuning algorithm (ALPHA5 Smart) applies a frequency-sweep excitation signal to the velocity reference during a commissioning routine and measures the mechanical frequency response of the load. The identified inertia ratio and resonance frequency are used to automatically set the velocity loop gain, integral time constant, and notch filter center frequency. The notch filter (adjustable 50–2000 Hz, -40 dB depth) suppresses mechanical resonance that would otherwise cause audible vibration and accelerated bearing wear in high-stiffness machine structures.

The control board uses a 32-bit floating-point DSP with a dedicated hardware multiplier, enabling the three control loops to execute concurrently without time-sharing penalties. The position loop deviation counter is implemented in hardware logic (FPGA fabric), not in software, which means position error accumulation and pulse output counting are not affected by DSP interrupt latency.

System Integration Benefits

• Absolute position retention on power loss: The 17-bit absolute encoder stores shaft position in battery-backed memory within the encoder head. On power restoration, the amplifier reads the stored position without executing a homing cycle, reducing machine restart time from minutes to seconds in multi-axis systems.
• Inertia ratio auto-identification: The ALPHA5 Smart tuning routine identifies load-to-motor inertia ratio within a 0.1–120× range. Accurate inertia identification allows the velocity loop gain to be set at the theoretical stability limit, maximizing bandwidth without manual trial-and-error tuning.
• Notch filter for mechanical resonance suppression: The adjustable notch filter prevents structural resonance from entering the velocity loop, enabling higher loop gains on machines with flexible couplings or long ballscrew assemblies — directly improving positioning repeatability.
• Hardware-level fault isolation: Desaturation detection and encoder CRC verification operate at the hardware layer, independent of firmware state. This means fault detection latency is deterministic and not subject to DSP task scheduling jitter.
• Standardized alarm code structure: The AL-xx alarm code system maps each fault condition to a specific hardware or software subsystem. Maintenance personnel can identify the fault source — power stage, encoder interface, communication, or thermal — without oscilloscope measurement, reducing mean time to repair (MTTR).
• RS-485 multi-drop monitoring: Up to 31 amplifiers can be connected on a single RS-485 bus for centralized parameter management and real-time status monitoring via FUJI SX-DSV software, without interrupting the active control loop on any axis.
• Pulse-train compatibility with standard PLCs: The 4 Mpps differential pulse input is directly compatible with the high-speed pulse output modules of Siemens S7-1200/1500, Mitsubishi Q/FX, and OMRON NX/NJ series PLCs, eliminating the need for a dedicated motion controller in point-to-point positioning applications.
• Compact 55mm panel width: The narrow footprint allows higher axis density in multi-axis control cabinets. A 600mm-wide cabinet can accommodate up to 10 RYT751D5-VV2 units side-by-side with standard 5mm inter-unit spacing, reducing cabinet size and wiring complexity compared to wider-format drives.
• Factory motor-amplifier parameter matching: FUJI ships matched motor-amplifier sets with pre-loaded motor constants. This eliminates the parameter entry errors that are a common source of commissioning faults when integrating cross-brand servo components.
• Regenerative energy management: The internal braking transistor activates when DC bus voltage exceeds the overvoltage threshold (approximately 400V DC), dissipating regenerative energy through the braking resistor. For applications with duty cycles below 10% regenerative braking, no external resistor is required, simplifying cabinet design.

Quality Assurance & Global Logistics

All FUJI RYT751D5-VV2 units supplied by siemensplc.com are sourced through verified distribution channels and carry full FUJI Electric factory traceability. Each unit is inspected prior to shipment: serial number is recorded, packaging integrity is confirmed, and a functional power-on test is performed where applicable. Units supplied as new-in-box retain original FUJI Electric anti-static packaging and factory seal.

A 12-month warranty is provided from the shipment date, covering manufacturing defects and component failure under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize customer downtime. Detailed failure analysis reports are available on request for units returned under warranty.

Shipments originate from Xiamen, China (Xiamen Gaoqi International Airport / Xiamen Port). Standard export documentation — commercial invoice, packing list, certificate of origin, and HS Code 8537.10 classification — is prepared for every shipment. Express courier (DHL, FedEx, UPS) delivers to most destinations in Asia within 2–4 business days, Europe within 4–6 business days, and North America within 5–7 business days. Sea freight consolidation is available for bulk orders. All shipments include full tracking and are insured against transit damage.

For time-critical replacement orders, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Contact the sales team to confirm current stock status before placing an order.
