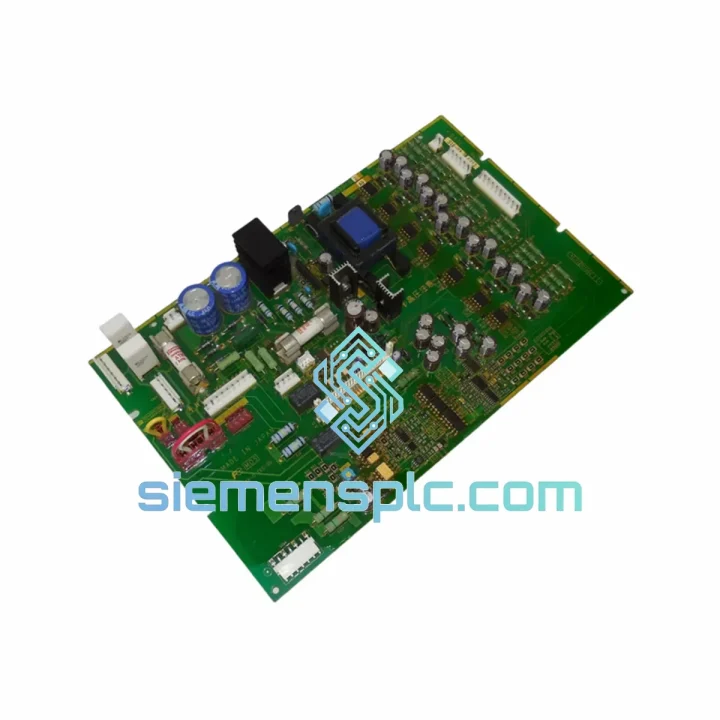

FUJI EP-3965A-C2 VFD Power Drive Board

EP-3965A-C2 Power Drive Board — Every Hour of Downtime Costs You Money. We Ship Today.

Your FUJI inverter tripped. The line is cold. Maintenance is standing by. You’ve already pulled the drive and confirmed the gate drive board is the culprit — overcurrent fault, no output voltage, IGBT trigger signal absent. You need an EP-3965A-C2 now, not in three weeks.

We stock the FUJI EP-3965A-C2 Power Drive Board in Xiamen and ship same-day via DHL Express or FedEx International Priority. This is not a refurbished unit. Not a compatible substitute. It is the original FUJI Electric OEM part number, pulled from verified industrial distribution stock, inspected before it leaves our warehouse.

One call, one part, line back up. That is the only metric that matters on a breakdown shift.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on FUJI drives, these are the failure patterns that point directly to the EP-3965A-C2 as the failed component — and the steps that prevent a second failure after replacement.

Fault Codes That Indicate This Board:

• OC1 / OC2 / OC3 (Overcurrent during acceleration, deceleration, or constant speed) — when the IGBT power module tests healthy but the fault persists, the gate drive signal from this board is the next suspect. A degraded gate resistor or failed optocoupler on the EP-3965A-C2 causes incomplete IGBT turn-on, leading to shoot-through and false overcurrent trips.
• GF (Ground Fault) — intermittent GF faults with no wiring fault found often trace back to asymmetric gate drive timing. The EP-3965A-C2 controls the timing balance between upper and lower IGBT pairs; a failed drive channel creates current asymmetry that the GF circuit interprets as a ground path.
• OH1 / OH2 (Overheat) — if the thermistor circuit on the drive board has drifted, the drive will trip on false overheat even when heatsink temperature is normal. Verify thermistor resistance at ambient before condemning the cooling system.
• No Output Voltage — Drive Powers On, No Motor Response — this is the classic EP-3965A-C2 failure signature. Control board is healthy, DC bus is charged, but no PWM signal reaches the motor terminals. Scope the gate drive outputs: if the PWM waveform is absent or asymmetric on any phase, the board is confirmed failed.

Replacement Procedure — Field Checklist:

• De-energize the drive and wait a minimum of 10 minutes for DC bus capacitors to discharge below 30 VDC. Measure with a calibrated meter — do not assume discharge is complete based on time alone.
• Photograph all connector positions and cable routing before removal. The EP-3965A-C2 has multiple low-voltage signal connectors; incorrect re-seating causes immediate re-fault on power-up.
• Check the IGBT power module gate pins for carbon tracking or burn marks before installing the new board. A shorted IGBT will destroy the replacement EP-3965A-C2 within seconds of power-up. If gate-emitter resistance is below 10 Ω on any IGBT channel, replace the power module first.
• Inspect the fiber optic interface connectors (if fitted on your drive variant) for cracked ferrules or contaminated end-faces. Clean with IPA and lint-free swab before reconnecting.
• After installation, perform a no-load power-up with the motor disconnected. Confirm DC bus charges normally and no fault codes appear before connecting the motor.
• Run a low-speed jog command (5–10 Hz) and verify all three output phases are present and balanced with a clamp meter before returning the drive to full-load operation.
• Firmware note: The EP-3965A-C2 is a hardware-only board with no embedded firmware. No parameter initialization is required after replacement. Drive parameters stored in the control board EEPROM are preserved.
• DIP switch / jumper settings: Confirm any jumper configurations on the replacement board match the removed board before installation. Some drive variants use jumpers on the gate drive board to select IGBT type or current rating. Mismatch will cause immediate overcurrent fault.

Reliability in Harsh Conditions

Industrial drives do not live in clean rooms. The EP-3965A-C2 is built for the environments where failures actually happen.

FUJI Electric designs this board to operate continuously in ambient temperatures from -10°C to +50°C, with short-term excursions to +60°C during peak load cycles. The PCB substrate is rated for thermal cycling across this range without delamination or trace cracking — a failure mode common in cheaper aftermarket boards that use FR-2 substrate instead of FR-4.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-64 (random vibration), covering the shock and resonance profiles found in compressor rooms, press lines, and marine installations. Component leads are clinched and wave-soldered to FUJI’s internal IPC-A-610 Class 3 standard — the same standard used in aerospace and military electronics.

Humidity performance is qualified to 95% RH non-condensing. The conformal coating applied to the PCB surface provides a barrier against condensation, conductive dust, and light chemical splash — conditions routinely encountered in food processing, chemical plants, and coastal installations. This is not a cosmetic coating; it is a functional protection layer that extends board life in environments where uncoated boards fail within months.

The optocouplers used in the gate drive isolation stage are rated for 5,000 Vrms isolation voltage, providing the creepage and clearance distances required by IEC 61800-5-1 for reinforced insulation between the control circuit and the high-voltage power section. This isolation integrity is what protects your PLC and control system from a power section fault event.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateway facilities. This geography is not accidental; it is chosen specifically to minimize transit time to Southeast Asia, the Middle East, Europe, and the Americas.

Standard dispatch process:

• Order confirmed and payment cleared before 15:00 CST → same-day dispatch
• Export documentation prepared in parallel with packing: commercial invoice, packing list, and certificate of origin issued within 2 hours of order confirmation
• ESD-safe anti-static bag → foam-lined carton → outer corrugated box with fragile and orientation labels
• Humidity indicator card included inside inner packaging — provides evidence of storage conditions during transit for warranty and insurance purposes
• DHL Express: 2–4 business days to Europe, Middle East, Southeast Asia; 3–5 business days to North America and South America
• FedEx International Priority: equivalent transit times with alternative routing for destinations where DHL coverage is limited
• Full AWB tracking number provided within 4 hours of dispatch — trackable at carrier website and via our order confirmation email
• Export HS code declared correctly for industrial PCB components — no customs clearance surprises at destination
• For orders requiring urgent customs pre-clearance documentation (e.g., formal entry in the US, CE declaration for EU), contact us at order placement and we will prepare the paperwork in advance

We have shipped to over 60 countries. If your destination has specific import requirements — import license, end-user certificate, restricted commodity declaration — contact us before ordering and we will advise on the correct documentation path.

Contact Information

Ready to order or need a technical confirmation before purchasing?

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com

Response time: within 2 hours during business hours (08:00–18:00 CST, Monday–Saturday). For genuine emergencies outside business hours, WhatsApp is monitored.
