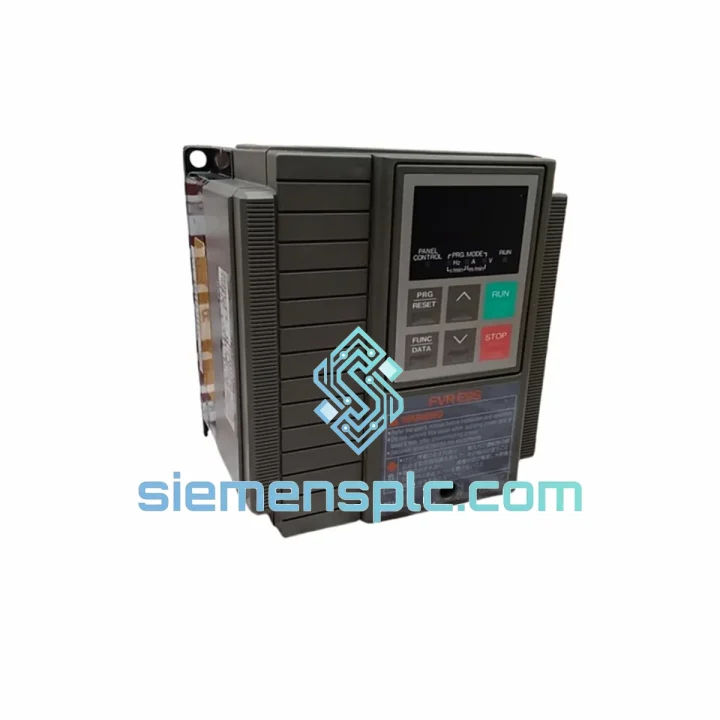

FUJI FVR0.75E9S-4JE Frequency Inverter

FUJI FVR0.75E9S-4JE AC Drive 0.75kW 400V — Stop the Clock on Your Downtime

Every minute a production line sits idle costs money. When a frequency inverter trips and won’t reset, the pressure to restore motion is immediate. The FUJI FVR0.75E9S-4JE — a 0.75kW, 3-phase 400V AC variable frequency drive from the FVR-E9S series — is one of the most widely deployed compact drives in Asian and European manufacturing. It controls pump stations, conveyor belts, HVAC fans, and machine tool auxiliaries across thousands of installations. When it fails, there is no workaround. You need an exact replacement, verified genuine, on your bench within days — not weeks.

At siemensplc.com, we maintain ready stock of the FVR0.75E9S-4JE sourced directly from verified FUJI Electric supply channels. Our dispatch team in Xiamen processes urgent orders same business day. DHL and FedEx express lanes are pre-arranged. From the moment you confirm your order, the clock is already running in your favor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The FVR0.75E9S-4JE fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Most Common Fault Codes & Root Causes:

• OC1 / OC2 / OC3 (Overcurrent): Triggered during acceleration, deceleration, or constant speed. First check motor insulation resistance to ground — a degraded winding will pull excessive current on startup. If motor checks out, inspect the IGBT output stage on the drive PCB for carbon tracking. A shorted IGBT will cause OC1 on every start attempt regardless of load.
• OV1 / OV2 / OV3 (Overvoltage): DC bus voltage exceeds threshold. Common on high-inertia loads (fans, flywheels) with aggressive deceleration ramps. Before condemning the drive, extend deceleration time (F08) and verify braking resistor connection if fitted. If the drive trips OV at rest with no motor connected, the DC bus capacitors are failing — replace the drive.
• LU (Undervoltage): DC bus drops below ~400V. Check incoming 3-phase supply for phase loss or voltage sag. A single-phase loss on a 3-phase input will cause LU within seconds. Also inspect the inrush relay and rectifier bridge — a failed rectifier diode produces asymmetric DC bus ripple detectable with a DC clamp meter.
• OH1 (Heatsink Overheat): Thermistor on the heatsink exceeds limit. Clean the heatsink fins — in dusty environments, packed lint reduces airflow dramatically. Verify the internal cooling fan is spinning; on older units the fan bearing seizes silently. Ambient temperature above 50°C requires derating or forced ventilation.
• Er1 / Er2 (EEPROM / CPU Error): Parameter memory corruption. Perform a full factory reset (H03 = 1) before replacing the drive — corrupted parameters from a power surge can mimic hardware failure.

Replacement Procedure — Field Checklist:

1. Record all modified parameters from the failed drive before power-down. Use the keypad upload function or photograph each parameter group. The FVR-E9S has no automatic parameter backup to external media — this step is manual.
2. Isolate and lock out the incoming 3-phase supply. Measure DC bus voltage at terminals P(+) and N(-) with a multimeter — wait until below 30V before touching internal wiring. Residual charge in the DC bus capacitors can exceed 600V for several minutes after power removal.
3. Label all control wiring before disconnection: terminals FWD, REV, X1–X5, Y1–Y2, FM, 11, 13, CM. The FVR-E9S terminal layout is consistent across the E9S range, but verify against your panel drawing.
4. On the replacement unit, perform a factory reset (H03 = 1) before entering parameters to clear any pre-set values from storage.
5. Re-enter motor nameplate data: rated frequency (F04), rated voltage (F05), rated current (F06), rated speed (F07). Then run motor auto-tuning (H84 = 1 for static tuning) before first load run.
6. Verify carrier frequency (F26) matches the original setting — mismatched carrier frequency causes audible motor noise and can trigger nuisance OC faults on long cable runs (>20m motor cable).
7. If RS-485 communication is used, confirm station address (y01) and baud rate (y02) match the SCADA/PLC configuration before enabling the communication link.

Reliability in Harsh Conditions

The FVR-E9S platform was designed for industrial environments where consumer-grade electronics fail within months. The FVR0.75E9S-4JE incorporates several hardware-level design decisions that directly affect field longevity.

The power PCB uses conformal coating on signal-level traces, providing resistance to condensation and airborne contaminants including cutting fluid mist and hydraulic oil vapor — common in machine tool environments. The DC bus capacitors are rated for 105°C core temperature, giving meaningful thermal margin even when the ambient inside a sealed enclosure reaches 45°C. The IGBT module is mounted directly to the extruded aluminum heatsink with thermal compound and a mechanical clamp — not adhesive — ensuring consistent thermal interface over years of thermal cycling.

Vibration resistance meets IEC 60068-2-6 at 5.9 m/s² (0.6G), 10–55 Hz. This covers the resonance bands generated by most industrial machinery including reciprocating compressors and punch presses. The terminal block uses a cage-clamp design rather than screw-and-washer, maintaining contact force under vibration without periodic re-torquing.

EMC performance is certified to EN 61800-3 Category C2. The built-in EMC filter suppresses conducted emissions on the input supply, protecting adjacent instrumentation on shared distribution panels. For installations requiring Category C1 compliance (residential proximity), an external FUJI EFL series filter is required.

Storage stability is rated to -25°C to +65°C, making the unit suitable for unheated warehouse environments in northern climates without risk of capacitor electrolyte degradation during storage periods up to 12 months.

Global Express Logistics

Our Xiamen dispatch hub operates Monday through Saturday. Orders confirmed before 14:00 CST ship same day. The logistics workflow is structured to eliminate the delays that typically add 24–48 hours to industrial parts shipments.

• Order Confirmation → Warehouse Pick: Within 2 hours of payment confirmation, the unit is pulled from bonded stock, inspected, and staged for packaging.
• Packaging: Anti-static inner bag, foam-lined outer carton rated for 1.2m drop. Gross weight approximately 3.5 kg. Carton dimensions comply with DHL and FedEx express parcel limits without surcharge.
• Export Documentation: Commercial invoice, packing list, and certificate of origin prepared in parallel with packaging. HS code 8504.40 is pre-cleared with our customs broker for major destination countries.
• DHL Express: Transit time 2–4 business days to Europe, 3–5 days to North America, 1–3 days to Southeast Asia. Real-time tracking from pickup scan.
• FedEx International Priority: Available as alternative carrier. Comparable transit times. Preferred for shipments to the United States and Canada due to customs pre-clearance agreements.
• Freight Forwarding: For orders of 5+ units, air freight consolidation is available at reduced per-unit cost. Contact us for a freight quote.
• Import Duties: Shipped DAP (Delivered At Place). Buyer is responsible for import duties and VAT at destination. We provide all documentation required for customs clearance.

We have shipped industrial automation components to over 40 countries. Our average time from order confirmation to DHL pickup scan is under 6 hours on business days.
