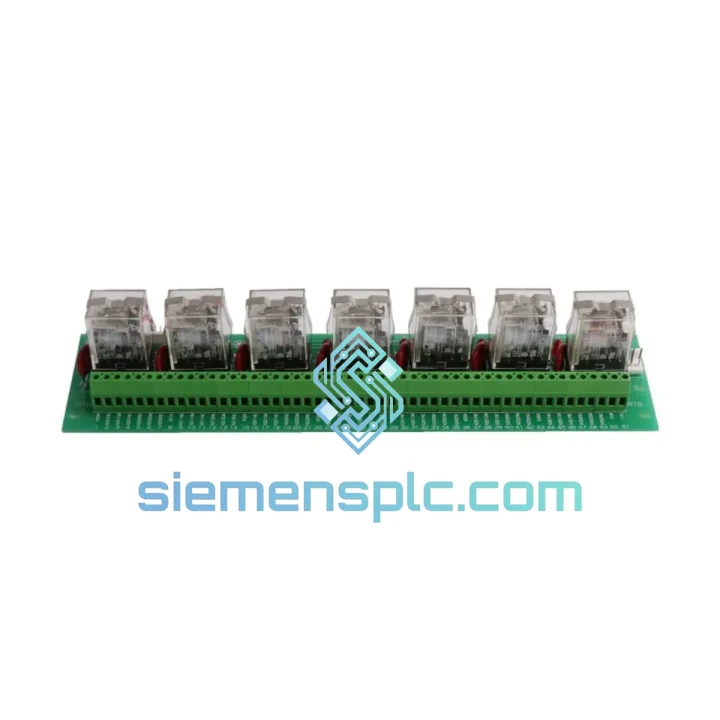

GE 531X191RTBAJG1 RTB Terminal Board Option Card

GE 531X191RTBAJG1 RTB Terminal Board Option Card — Stop the Clock on Your Downtime

Every minute your turbine sits idle, you’re bleeding money. A failed RTB terminal board in a GE Mark V or Mark VI Speedtronic control panel doesn’t just halt one machine — it can cascade into a full unit trip, triggering emergency protocols, contract penalties, and the kind of phone calls nobody wants to make at 2 AM. The GE 531X191RTBAJG1 is on our shelf right now. Not on order. Not inbound next week. On the shelf. We ship same day from Xiamen via DHL or FedEx Express. That’s the difference between a 4-hour fix and a 4-week nightmare.

We’ve seen this failure pattern dozens of times across gas turbine plants, combined-cycle facilities, and compressor stations. The 531X191RTBAJG1 is a high-demand spare precisely because it sits at the intersection of I/O signal routing and terminal connectivity — two functions that, when they fail, produce symptoms that look like everything else first. Operators chase sensor faults, comms errors, and spurious trips before someone finally pulls the RTB card and finds a burnt trace or a failed optocoupler. By then, hours are gone.

Don’t let sourcing be the bottleneck. We stock this card specifically because lead times from OEM channels routinely stretch 8–16 weeks. Our inventory exists to close that gap.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the card, confirm the fault is actually the 531X191RTBAJG1 and not an upstream wiring issue. Here’s the field sequence that saves time:

Step 1 — Isolate the fault signature. On a Mark V panel, RTB card failures typically surface as one of three alarm patterns: (a) IOPACK COMM FAULT on the HMI, (b) a cluster of I/O points going simultaneously to bad quality, or (c) a persistent CARD NOT RESPONDING diagnostic in the Toolbox software. If you’re seeing a single-channel fault, suspect field wiring or the transmitter first — the RTB card fails in groups, not individually.

Step 2 — Check the backplane connector. The 531X191 series uses a 96-pin DIN connector. Corrosion or bent pins on the backplane are a common culprit that mimics a failed card. Clean with IPA and inspect under magnification before condemning the card.

Step 3 — Note the slot address. In Mark V systems, the RTB card’s slot position determines its I/O address mapping. There are no DIP switches on the 531X191RTBAJG1 itself — addressing is handled by the backplane slot. Seat the replacement in the exact same slot as the failed unit. Do not move it to a different slot without updating the I/O configuration in the Mark V Toolbox.

Step 4 — Power sequence. Mark V panels are sensitive to hot-insertion. Where possible, de-energize the I/O rack before swapping the card. If the system is live and a hot-swap is unavoidable, insert slowly and monitor the HMI for fault escalation. Some Mark V revisions support live card replacement; others do not — check your panel’s revision documentation.

Step 5 — Post-installation verification. After seating the replacement 531X191RTBAJG1, cycle power to the I/O rack and run a full I/O check from the Toolbox. Confirm all channels return to good quality. If COMM FAULT persists, check the ribbon cable between the RTB card and the main processor board — this cable degrades with heat cycling and is often overlooked.

Common fault codes associated with this card:

• L3DIAG_IOPACK — I/O pack communication diagnostic alarm; first suspect is the RTB card or its backplane connection
• L86IO — I/O system fault lockout; triggered when the Mark V loses communication with the RTB for more than the configured timeout
• CARD_FAIL_531X191 — Direct card failure diagnostic logged in the Mark V event recorder

Firmware note: The 531X191RTBAJG1 does not carry user-programmable firmware. It is a passive-active interface card. No firmware flashing is required on replacement. However, if your Mark V processor board has been updated to a newer revision, confirm the I/O pack compatibility matrix in GE’s Mark V Application Manual (GEH-6195) before installation.

Reliability in Harsh Conditions

Turbine control panels are not office environments. The 531X191RTBAJG1 is built to operate where most electronics would fail within months. GE’s industrial-grade design spec for this series addresses the three primary environmental killers of control electronics: vibration, thermal cycling, and moisture ingress.

Vibration resistance is achieved through conformal coating on the PCB and through-hole component mounting on critical signal paths. Gas turbine enclosures generate broadband vibration across 10–500 Hz — the 531X191 series is qualified to IEC 60068-2-6 vibration profiles that simulate years of continuous turbine operation. Solder joint fatigue, the leading cause of field failures in vibration-heavy environments, is mitigated by GE’s wave-soldering process and the use of leaded solder alloys on structural joints.

Thermal performance is rated for continuous operation at ambient temperatures up to 60°C, with short-term excursions to 70°C. In practice, turbine control cabinets with adequate ventilation run 40–50°C at card level. The 531X191RTBAJG1’s power dissipation is low enough that it does not require forced-air cooling at the card level, reducing one more potential failure point.

Humidity and contamination are addressed through the conformal coating, which provides protection against condensation, salt fog, and airborne particulates common in coastal power plants and offshore platforms. The card meets IEC 60068-2-78 damp heat testing requirements. For installations in particularly aggressive environments — coastal gas plants, tropical climates — we recommend inspecting the card annually for coating integrity and re-coating if necessary.

Every unit we ship has passed a visual inspection for PCB delamination, connector corrosion, and component damage. Surplus-new units are inspected against GE’s original acceptance criteria. Tested-refurbished units undergo a full functional bench test with I/O signal verification before packaging.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected cities in Asia, with direct DHL and FedEx Express hub access. When you place an order before 3:00 PM CST, we ship the same business day. Here’s what the timeline looks like from order confirmation to your receiving dock:

• Day 0 (Order Day): Order confirmed, unit pulled from stock, ESD-safe packaging applied, commercial invoice and packing list prepared, shipment booked with DHL Express or FedEx International Priority.
• Day 1: Parcel collected by courier, tracking number issued to you via email. Customs declaration filed with HS code 8537.10 (industrial control panels/components).
• Day 2–3: Clears Xiamen export customs, transits through Hong Kong or Shanghai hub. Real-time tracking active.
• Day 3–5 (Europe/North America): Delivery to most major industrial hubs. DHL Express and FedEx IP routinely achieve 3–4 business days to Germany, UK, USA, and Canada from Xiamen.
• Day 4–6 (Middle East/Southeast Asia): Delivery to UAE, Saudi Arabia, Singapore, Malaysia, and India typically within 4–5 business days.
• Day 5–7 (South America/Africa): Brazil, Chile, South Africa — 5–7 business days via FedEx International Priority with direct routing.

All shipments include full commercial documentation: commercial invoice, packing list, certificate of origin, and — upon request — a material test report or certificate of conformance. We handle export licensing for controlled goods where applicable. For orders requiring urgent customs clearance support, our logistics team can provide pre-clearance documentation packages to your local broker in advance of arrival.

Duties and import taxes are the buyer’s responsibility unless DDP (Delivered Duty Paid) terms are agreed in advance. We can arrange DDP shipping to most destinations — contact us for a DDP quote if your facility requires it.
